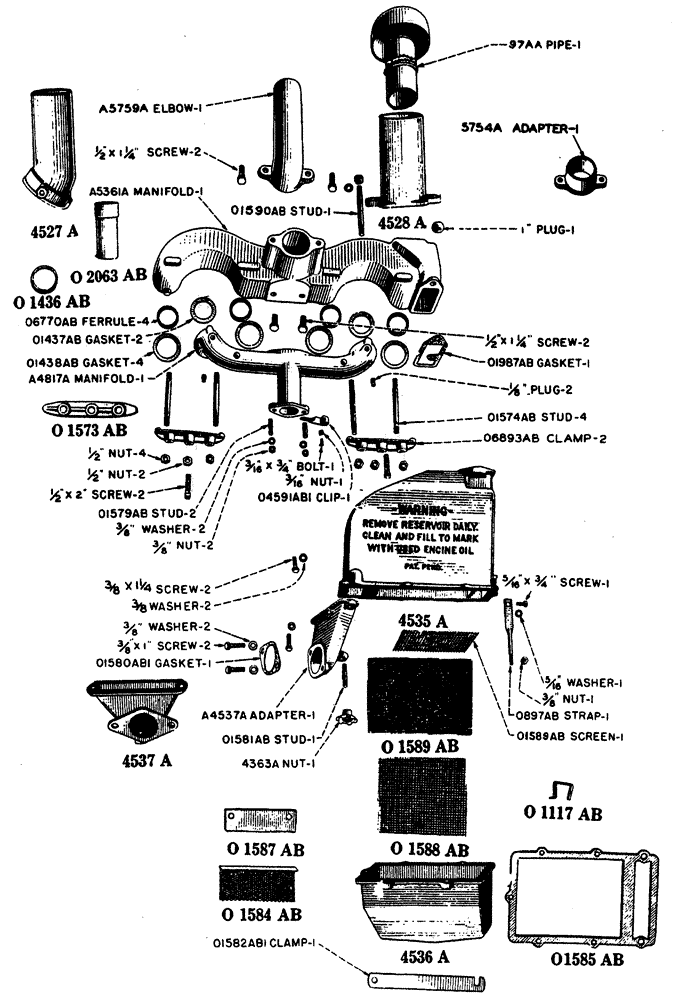

Запчасти Case IH L-SERIES (009) - GASOLINE MANIFOLD AND AIR CLEANER (02) - ENGINE

4527a

4527A

ELBOW exhaust for 5361A manifold, for tractors equipped with zenith carburetors, see A5759A and 5754A

1шт.

SCREW 3/8" x 1" cup point set, N.C. thread, manifold for tractors equipped with zenith carburetors

2шт.

NUT 3/8" hexagon, N.C. thread

2шт.

4537a

4537A

ADAPTER carburetor, used with Kingston carburetor L301844 and below, manifold, Years: 01-JAN-29-01-JAN-35

1шт.

SCREW 3/8" x 1 - 1/4" hexagon head cap, N.C. thread, manifold for tractors equipped with zenith carburetors

2шт.

BOLT 3/8" x 1 - 1/2" machine, with hexagon nut, N.C. thread, manifold for tractors equipped with zenith carburetor

2шт.

WASHER 3/8" standard lock, manifold for tractors equipped with zenith carburetors

2шт.

a4537a

A4537A

ADAPTER carburetor, manifold, used with zenith carburetor, L301843 and up, Start Year: 01-JAN-35

1шт.

SCREW 3/8" x 1 - 1/4" hexagon head cap, N.C. thread, manifold for tractors equipped with zenith carburetors

2шт.

WASHER 3/8" standard lock, manifold for tractors equipped with zenith carburetors

2шт.

a4817a

A4817A

MANIFOLD inlet, gasoline, for tractors equipped with zenith carburetors, Start Year: 01-JAN-38

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread, manifold for tractors equipped with zenith carburetors

2шт.

PLUG 1/8" pipe, square head, manifold for tractors equipped with zenith carburetors

2шт.

5361a

5361A

MANIFOLD exhaust, gasoline, use 2741AA, for tractors equipped with zenith carburetors

1шт.

a5361a

A5361A

MANIFOLD exhaust, gasoline, use 2741AA, for tractors equipped with zenith carburetors

1шт.

5754a

5754A

ADAPTER exhaust elbow, used with A5361A manifold when using 4527A elbow, for tractors equipped with zenith carburetor

1шт.

5759a

5759A

ELBOW exhaust, use A5759A, manifold for tractors equipped with zenith carburetors

1шт.

a5759a

A5759A

ELBOW exhaust, for A5361A manifold, see 4527A, for tractors equipped with zenith carburetors

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread, manifold for tractors equipped with zenith carburetors

2шт.

01436ab

O1436AB

FERRULE exhaust part, for 5361A manifold, see O5770AB, for tractors equipped with zenith carburetor

4шт.

01437ab

O1437AB

GASKET intake port, manifold for tractors equipped with zenith carburetors, Start Year: 01-JAN-29

2шт.

01438ab

O1438AB

GASKET

exhaust port, manifold for tractors equipped with zenith carburetors, Start Year: 01-JAN-29

4шт.

01573ab

O1573AB

CLAMP for 5361A manifold, see O6893AB, for tractors equipped with zenith carburetors

2шт.

SCREW 1/2" x 2" cup point set, N.C. thread, manifold for tractors equipped with zenith carburetors

2шт.

NUT 1/2" hexagon, jam, N.C. thread, manifold for tractors equipped with zenith carburetors

2шт.

01574ab

O1574AB

STUD inlet and exhaust manifold, for tractors equipped with zenith carburetors, Start Year: 01-JAN-29

4шт.

NUT 1/2" hexagon, light, N.C. thread, manifold for tractors equipped with zenith carburetors

4шт.

01579ab

O1579AB

STUD carburetor to intake manifold, for tractors equipped with zenith, Start Year: 01-JAN-29

2шт.

NUT 3/8" hexagon, light, N.F. thread, manifold for tractors equipped with zenith carburetors

2шт.

WASHER 3/8" standard lock, manifold for tractors equipped with zenith carburetors

2шт.

01580ab

O1580AB

GASKET for 4537A carburetor adapter, L301844 and below, manifold for tractors equipped with zenith, Years: 01-JAN-29-01-JAN-35

1шт.

01580ab1

A26555

GASKET

for A4537A carburetor adapter, L301843 and up, manifold for tractors equipped with zenith, Start Year: 01-JAN-35

1шт.

02063ab

O2063AB

VENTURI inlet manifold, for tractors equipped with zenith carburetors, Start Year: 01-JAN-29

2шт.

04591ab1

O4591AB1

CLIP flexible choke control, manifold for tractors equipped with zenith tractors, Start Year: 01-JAN-40

1шт.

BOLT 3/16" x 3/4" round head stove, N.C. thread, manifold for tractors equipped with zenith carburetors

1шт.

NUT 3/16" square stove bolt, N.C. thread, manifold for tractors equipped with zenith carburetors

1шт.

06770ab

A21056

CAP

FERRULE exhaust port, for A5361A manifold, for tractors equipped with zenith carburetor

4шт.

06893ab

O6893AB

CLAMP manifold, used with A5361A manifold, see O1573AB, for tractors equipped with zenith carburetors, Start Year: 01-JAN-41

2шт.

SCREW 1/2" x 2" cup point set, N.C. thread, manifold for tractors equipped with zenith carburetors

2шт.

NUT 1/2" hexagon, jam, N.C. thread, manifold for tractors equipped with zenith carburetors

2шт.

1878aa

1878AA

MANIFOLDS gasoline, inlet and exhaust, to change from low cost fuel to gasoline, for tractors equipped with zenith carburetor, consists of;, Start Year: 01-JAN-29

1шт.

a4817a

A4817A

MANIFOLD inlet, for tractors equipped with zenith carburetor

1шт.

2741aa

2741AA

MANIFOLD exhaust, for tractors equipped with zenith carburetor

1шт.

1/2" x 1 - 1/4" hex. hd. cap screw, N.C. thread, manifold for tractors equipped with zenith carburetor

2шт.

2741aa

2741AA

MANIFOLD exhaust, gasoline, for tractors equipped with zenith carburetors, Start Year: 01-JAN-29

1шт.

2741aa

2741AA

MANIFOLD exhaust, gasoline, for tractors equipped with zenith carburetors, consists of;, Start Year: 01-JAN-29

1шт.

a5361a

A5361A

MANIFOLD for tractors equipped with zenith carburetors

1шт.

5754a

5754A

ADAPTER manifold for tractors equipped with zenith carburetors

1шт.

06770ab

A21056

CAP

FERRULE manifold for tractors equipped with zenith carburetors

4шт.

1/2" x 1 - 1/4" capscrew, N.C. thread, manifold for tractors equipped with zenith carburetors

2шт.

4363a

4363A

NUT air cleaner clamp, Start Year: 01-JAN-29

1шт.

4528a

4528A

FLANGE air intake pipe, cleaner, Start Year: 01-JAN-29

1шт.

SCREW 1/2" x 1" hexagon head cap, N.C. thread, air cleaner

1шт.

4535a

4535A

BODY air cleaner, Start Year: 01-JAN-29

1шт.

BOLT 1/2" x 1 - 3/4" machine, with hexagon nut, N.C. thread, air cleaner

1шт.

WASHER 1/2" standard lock, air cleaner

1шт.

4536a

4536A

RESEVOIR air cleaner, Start Year: 01-JAN-29

1шт.

0897ab

O897AB

STRAP air cleaner clamp, Start Year: 01-JAN-29

1шт.

SCREW 5/16" x 3/4" hexagon head cap, N.C. thread, air cleaner

1шт.

WASHER 5/16" standard lock, air cleaner

1шт.

NUT 3/8" hexagon N.C. thread, air cleaner

1шт.

01117ab

O1117AB

SUPPORT lower section, air cleaner, Start Year: 01-JAN-29

2шт.

SCREW no. 10, 32 x 1 - 1/4" round head machine, N.C. thread, air cleaner

2шт.

NUT no. 10 hexagon, N.C. thread, air cleaner

2шт.

01581ab

O1581AB

STUD air cleaner clamp, Start Year: 01-JAN-29

1шт.

01582ab

O1582AB

CLAMP air cleaner, L301844 and below, Years: 01-JAN-29-01-JAN-35

1шт.

01582ab1

O1582AB1

CLAMP air cleaner, L301843 and above, Start Year: 01-JAN-35

1шт.

01584ab

O1584AB

SCREEN air cleaner resevoir, Start Year: 01-JAN-29

1шт.

SCREW 1/4" - 20 x 5/8" round head machine, N.C. thread, air cleaner

2шт.

NUT 1/4" - 20 hexagon, N.C. thread, air cleaner

2шт.

WASHER 1/4" standard lock, air cleaner

2шт.

01585ab

O1585AB

GASKET oil resevoir, air cleaner, Start Year: 01-JAN-29

1шт.

01586ab

O1586AB

REINFORCEMENT oil resevoir, gasket, air cleaner, Start Year: 01-JAN-29

1шт.

SCREW 1/4" - 28 x 3/8" fillister head machine, air cleaner

5шт.

01587ab

O1587AB

SUPPORT air cleaner screen, Start Year: 01-JAN-29

1шт.

BOLT 1/4" x 1 - 3/4" machine, with square nut, N.C. thread, air cleaner

2шт.

WASHER 1/4" standard lock, air cleaner

2шт.

01588ab

O1588AB

SCREEN air cleaner lower, Start Year: 01-JAN-29

1шт.

01590ab

O1590AB

STUD air intake flange, cleaner, Start Year: 01-JAN-29

1шт.

NUT 1/2" hexagon, N.C. thread, air cleaner

1шт.

WASHER 1/2" standard lock, air cleaner

1шт.

01987ab

O1987AB

GASKET

air cleaner body, Start Year: 01-JAN-29

1шт.

76aa

76AA

AIR CLEANER, Start Year: 01-JAN-29

1шт.

97aa

97AA

PIPE air cleaner, Start Year: 01-JAN-29

1шт.
