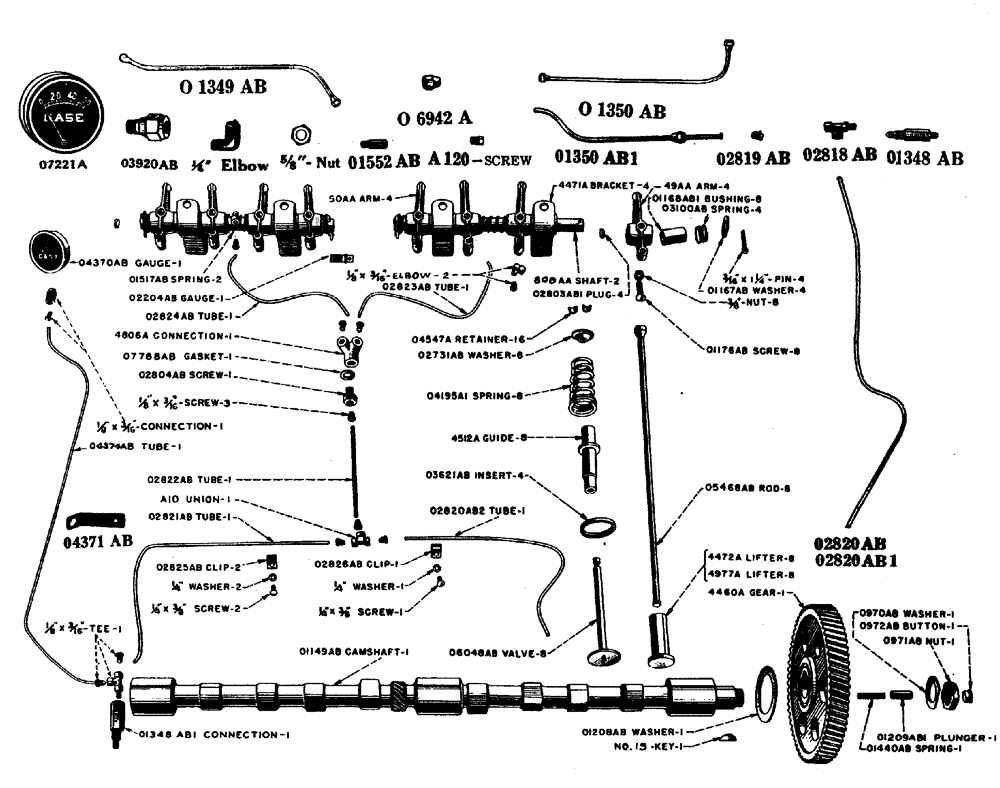

Запчасти Case IH L-SERIES (008) - VALVES, PUSH RODS AND CAMSHAFT (02) - ENGINE

4460a

4460A

GEAR camshaft, valve, push rod, Start Year: 01-JAN-29

1шт.

4471a

4471A

BRACKET valve rocker arm shaft, push rod, camshaft, Start Year: 01-JAN-29

4шт.

4472a

4472A

LIFTER push rod, valve, camshaft, see 4977A, Start Year: 01-JAN-29

8шт.

4512a

4512A

X

GUIDE valve stem, push rod, camshaft, Start Year: 01-JAN-29

8шт.

4977a

4977A

LIFTER push rod, .010" oversize, valve, camshaft, see 4472A, Start Year: 01-JAN-33

8шт.

04195a1

O4195A1

SPRING inlet and exhaust valve, push rod, camshaft, Start Year: 01-JAN-29

8шт.

04547a

O4547A

RETAINER valve spring (2 required per valve), push rod, camshaft, Start Year: 01-JAN-29

16шт.

0970ab

A26444

LOCK WASHER

lock, camshaft nut, valve, push rod, Start Year: 01-JAN-29

1шт.

0971ab

A26445

NUT

camshaft, 1/8" hexagon, N.C. thread, valve, push rod, Start Year: 01-JAN-29

1шт.

0972ab

O972AB

BUTTON thrust, camshaft, valve, push rod, Start Year: 01-JAN-31

1шт.

01149ab

O1149AB

CAMSHAFT valve, push rod, Start Year: 01-JAN-29

1шт.

KEY no.15, woodruff, valve, push rod, camshaft

1шт.

01167ab

380718R1

WASHER

valve rocker arm shaft, push rod, camshaft, Start Year: 01-JAN-29

4шт.

01168ab1

O1168AB1

BUSHING valve rocker arm shaft, push rod, camshaft, Start Year: 01-JAN-29

8шт.

01176ab

A27883

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW adjusting, push rod, valve, Start Year: 01-JAN-29

8шт.

NUT 3/8" hexagon, jam, N.F. thread, valve, push rod, camshaft

8шт.

01208ab

O1208AB

WASHER fibre, camshaft, valve, push rod, Start Year: 01-JAN-29

1шт.

01209ab1

O1209AB1

PLUNGER thrust, camshaft, valve, push rod, Start Year: 01-JAN-29

1шт.

01210ab

O1210AB

PIN camshaft thrust plunger, valve, push rod, use O1209AB1

1шт.

01440ab

A26530

SPRING

thrust, camshaft, valve, push rod, Start Year: 01-JAN-29

1шт.

01517ab

O1517AB

SPRING valve rocker arm shaft, push rod, camshaft, Start Year: 01-JAN-29

2шт.

02204ab

O2204AB

GAUGE valve clearance, push rod, camshaft, Start Year: 01-JAN-29

1шт.

02731ab

A26663

RETAINER

WASHER valve spring retainer, push rod, camshaft, L357352 and up, Start Year: 01-JAN-30

8шт.

02788ab

O2788AB

CUP oil, valve rocker arms, push rod, camshaft, Years: 01-JAN-29-01-JAN-30

1шт.

02803ab

O2803AB

PLUG valve rocker arm shaft, push rod, camshaft, Years: 01-JAN-31-01-JAN-33, Serial Range: L300400-L300648

4шт.

02803ab1

O2803AB1

PLUG valve rocker arm shaft, push rod, camshaft, L300648 and up, Start Year: 01-JAN-33

4шт.

03100ab

O3100AB

SPRING end, valve rocker arm shaft, push rod, camshaft, L300648 and up, Start Year: 01-JAN-33

4шт.

03621ab

O3621AB

INSERT valve seat, exhaust valve, push rod, camshaft, L303839 and up, Start Year: 01-JAN-35

4шт.

05468ab

A26887

ROD

push, valve, camshaft, Start Year: 01-JAN-29

8шт.

06048ab

O6048AB

VALVE inlet and exhaust, push rod, camshaft, Start Year: 01-JAN-29

8шт.

49aa

49AA

ARM valve rocker, with bushing, R.H., push rod, camshaft, Start Year: 01-JAN-29

4шт.

50aa

50AA

ARM valve rocker, with bushing, L.H., push rod, camshaft, Start Year: 01-JAN-29

4шт.

669aa

669AA

SET of valve rocker arms and pressure oiling system parts, push rods, camshaft, L300401 and below, Years: 01-JAN-29-01-JAN-30

1шт.

805aa

805AA

SHAFT valve rocker arm with plugs and end springs, push rod, camshaft, Start Year: 01-JAN-33

2шт.

PIN 3/16" x 1 - 1/4" cotter, valve, push rod, camshaft

4шт.

ELBOW 1/8" pipe thread x 3/16" tube size, with compression screw, dole A7 male, valve, push rod, camshaft

2шт.

4806a

4806A

CONNECTION "Y" at cylinder head, oil gauge, oil tube, Start Year: 01-JAN-31

1шт.

SCREW 1/8" pipe thread x 3/16" tube size compression, dole A110, oil gauge, oil, Start Year: 01-JAN-31

2шт.

06942a

O6942A

NUT 1/4" flared tube, for 01350AB1 tube, oil gauge, oil, Start Year: 01-JAN-31

2шт.

07221a

O7221A

GAUGE oil pressure, oil tube, prior to tractor no. 4202549, see O4370AB, Years: 01-JAN-29-01-JAN-38

1шт.

01348ab

O1348AB

CONNECTION oil gauge tube, L300401 and below, Years: 01-JAN-29-01-JAN-30

1шт.

01348ab1

O1348AB1

CONNECTION oil gauge tube, L300400 and above, Start Year: 01-JAN-31

1шт.

TEE 1/8" pipe thread x 3/16" tube size, dole A14 service, oil gauge, oil

1шт.

01349ab

O1349AB

TUBE inner, to oil gauge, oil, Start Year: 01-JAN-29

1шт.

01350ab

O1350AB

TUBE outer, to oil gauge, L300401 and below, Years: 01-JAN-29-01-JAN-30

1шт.

01350ab1

O1350AB1

TUBE outer, to oil gauge, L300400 and above to no. 4202549, see O4374AB, Years: 01-JAN-31-01-JAN-38

1шт.

SCREW 1/4" pipe thread x 3/8" tube size compression, dole A120, oil gauge, oil

1шт.

01552ab

O1552AB

CONNECTION oil gauge, oil tube, Years: 01-JAN-29-01-JAN-38

1шт.

ELBOW 1/4" flared tube, 1/8" pipe thread x 7/16" N.F. thread, oil gauge, oil

1шт.

01552ab

O1552AB

NUT 5/8" hexagon, jam, N.F. thread, oil gauge, oil tube

1шт.

WASHER 5/8" standard lock, oil gauge, oil tube

1шт.

02804ab

O2804AB

SCREW oil connection at cylinder head, gauge, tube, L300400 and above, Start Year: 01-JAN-31

1шт.

SCREW 1/8" pipe thread x 3/16" tube size, compression, dole A110, oil gauge, oil

1шт.

02805ab

O2805AB

GASKET oil connection at cylinder head, gauge, tube, use O7768AB

1шт.

02818ab

O2818AB

TEE connection, oil gauge tube, L300400 and above, Start Year: 01-JAN-31

1шт.

02819ab

O2819AB

CONNECTION governor oiling, gauge, tube, L300400 and above to tractor no. 4202249, Years: 01-JAN-31-01-JAN-38

1шт.

02820ab

O2820AB

TUBE tee to governor, oil gauge, oil, prior to tractor no. 4202249, see O2820AB2, Years: 01-JAN-31-01-JAN-38

1шт.

02820ab1

O2820AB1

TUBE tee to governor, oil gauge, oil, use O2820AB2

1шт.

02820ab2

O2820AB2

TUBE tee to governor, oil gauge, oil, tractor no. 4202249 and after, Start Year: 01-JAN-38

1шт.

02821ab

O2821AB

TUBE tee to gauge connection, oil, L300400 and above, Start Year: 01-JAN-31

1шт.

02822ab

O2822AB

TUBE tee to cylinder head, oil gauge, oil, L300400 and above, Start Year: 01-JAN-31

1шт.

UNION 3/16" tube size tee, dole A10, oil gauge, oil

1шт.

02823ab

O2823AB

TUBE "Y" connection to front rocker arm shaft, oil gauge, oil, L300400 and above, Start Year: 01-JAN-31

1шт.

ELBOW 1/8" pipe thread x 3/16" tube size, A7 male, oil gauge, oil

2шт.

02824ab

O2824AB

TUBE "Y" connection to rear rocker arm shaft, L300400 and above, oil gauge, oil, Start Year: 01-JAN-31

1шт.

02825ab

A26673

CLIP

oil line to governor, L300400 and above, gauge, tube, Start Year: 01-JAN-31

2шт.

SCREW 1/4" x 3/8" round head machine, N.C. thread

2шт.

WASHER 1/4" standard lock, oil gauge, oil tube

2шт.

02826ab

O2826AB

CLIP oil line to governor at center of cylinder block, L300400 and above, gauge, tube, Start Year: 01-JAN-31

1шт.

SCREW 1/4" x 3/8" round head machine, N.C. thread, oil gauge, oil tube

1шт.

WASHER 1/4" standard lock, oil gauge, oil tube

1шт.

03920ab

O3920AB

ADAPTER oil gauge (brass) from O7221A gauge to O1552AB connection, oil tube, Years: 01-JAN-29-01-JAN-38

1шт.

04370ab

536962R2

GAUGE

oil pressure, tractor no. 4202549 and after, see O7221A, Start Year: 01-JAN-38

1шт.

CONNECTOR 1/8" pipe thread x 3/16" tube size, A13 female, oil gauge, oil

1шт.

04374ab

O4374AB

TUBE oil, connection tee to oil pressure gauge, tractor no. 4202549 and after, see O1350AB1, Start Year: 01-JAN-38

1шт.

SCREW 1/8" pipe thread x 3/16" tube size compression, dole 210, oil gauge, oil

2шт.

07768ab

O7768AB

GASKET oil connection screw at cylinder head, gauge, tube

1шт.
