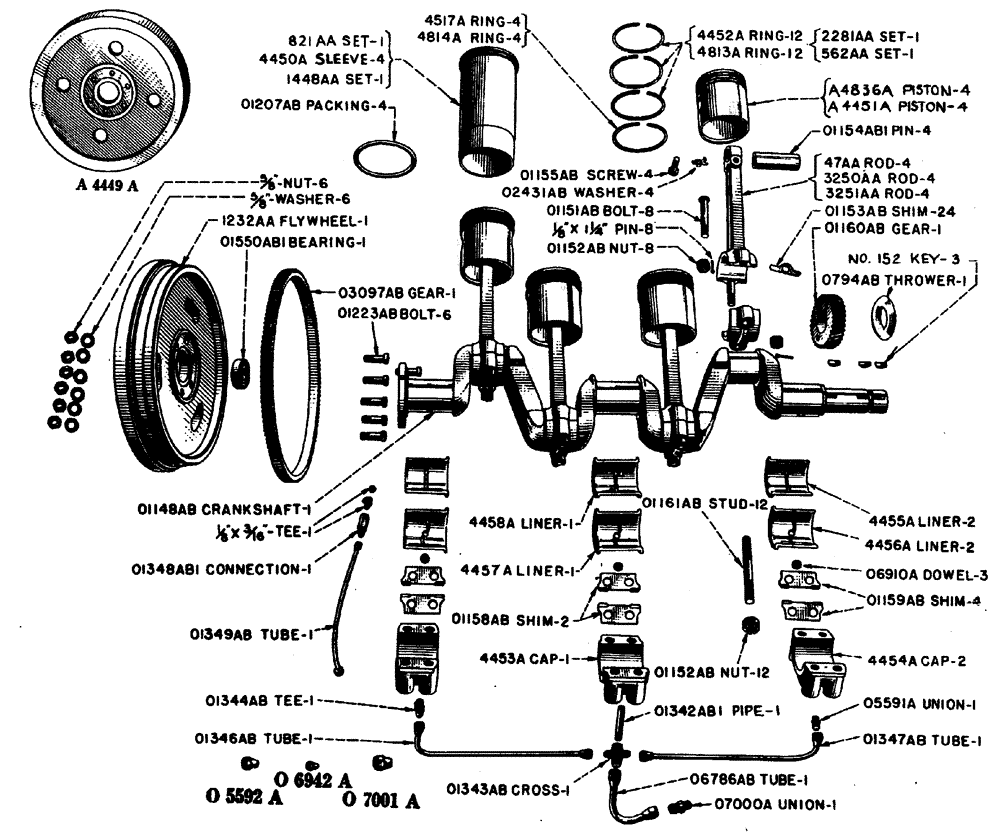

Запчасти Case IH L-SERIES (006) - PISTONS, CONNECTING RODS AND CRANKSHAFT (02) - ENGINE

4450a

A26013

SLEEVE

cylinder, pistons and connecting rods, Start Year: 01-JAN-29

4шт.

4451a

4451A

PISTON low cost fuel, connecting rods, use A4451A

1шт.

a4451a

A4451A

PISTON low cost fuel, connecting rods, see A4701A and A4836A, Start Year: 01-JAN-29

4шт.

4452a

4452A

RING piston, compression, connecting rods, see 4517A and 4813A, Start Year: 01-JAN-29

12шт.

4517a

4517A

RING piston, with vents, connecting rods, see 48152A and 4814A, Start Year: 01-JAN-29

4шт.

4701a

4701A

PISTON alcohol equipment, connecting rods, use A4701A

1шт.

a4701a

A4701A

PISTON alcohol equipment, connecting rods, see A4451A and A4836A, Start Year: 01-JAN-29

4шт.

4813a

4813A

RING piston, compression, .015" oversize in width, connecting rods, see 562AA, Start Year: 01-JAN-30

12шт.

4814a

4814A

RING piston, with vents, .015" oversize in width, connecting rods, see 562AA, Start Year: 01-JAN-30

4шт.

4836a

4836A

PISTON gasoline, connecting rods, use A4836A

1шт.

4836a

4836A

PISTON gasoline, connecting rods, use A4836A

1шт.

a4836a

A4836A

PISTON gasoline, connecting rods, see A4451A and A4701A, Start Year: 01-JAN-29

4шт.

01150ab

O1150AB

ROD connecting, piston, use 47AA, see also, Serial Range: 3250AA-3251AA

1шт.

01151ab

O1151AB

BOLT connecting rod, piston, Start Year: 01-JAN-29

8шт.

01151ab

O1151AB

PIN 1/8" x 1 - 1/4" cotter, pistons and connecting rods

8шт.

01152ab

O1152AB

NUT connecting rod bolt and main bearing stud, piston, Start Year: 01-JAN-29

8шт.

01153ab

A26455

SHIM

connecting rod, pistons, Start Year: 01-JAN-29

24шт.

01154ab1

O1154AB1

PIN piston, connecting rods, Start Year: 01-JAN-29

4шт.

01155ab

O1155AB

SCREW piston pin clamp, connecting rods, Start Year: 01-JAN-29

4шт.

01207ab

A26479

O-RING,4.895" ID x OD x 0.385"

PACKING cylinder sleeve, pistons and connecting rods, Start Year: 01-JAN-29

4шт.

02431ab

O2431AB

WASHER lock, piston, pin, clamp, screw, connecting rods, Start Year: 01-JAN-29

4шт.

47aa

47AA

ROD connecting, complete with bolts, nuts, and shims, piston, see 3250AA and 3251AA, Start Year: 01-JAN-29

4шт.

When connecting rods require rebabbiting, they may be sent to the nearest Case branch in exchange for a rebabbited rod, providing old rod is in otherwise good condition.

1шт.

394aa

394AA

PULLER cylinder sleeve, pistons and connecting rods, with O2661AB plate, Start Year: 01-JAN-29

1шт.

562aa

562AA

RINGS set of 16, piston, .015" oversize in width, connecting rods, see 2281AA, consists of 12-4813A and 4-4814A, Start Year: 01-JAN-30

1шт.

1448aa

1448AA

SET of 4 cylinder sleeves with packing, A4836A pistons, with rings and pins, fitted for cylinder,connecting rods, for gasoline equipment, see 821AA, Start Year: 01-JAN-29

1шт.

1448AA set of sleeves and pistons can be used with low cost fuel and manifold at altitudes of 6000 feet and above. Must not be used at altitude below 6000 feet, with low cost fuel manifold.

1шт.

2281aa

3723AA

PISTON RING SET

RINGS piston, set of 16, see 562AA, consists of 12-4452 and 4-4517A, Start Year: 01-JAN-29

1шт.

3250aa

3250AA

ROD connecting, complete with bolts, nuts and shims, .010" undersize, Start Year: 01-JAN-29

4шт.

When connecting rods require rebabbiting, they may be sent to the nearest Case branch in exchange for a rebabbited rod, providing old rod is in otherwise good condition.

1шт.

3251aa

3251AA

ROD connecting, complete with bolts, nuts and shims, .020" undersize, Start Year: 01-JAN-29

4шт.

When connecting rods require rebabbiting, they may be sent to the nearest Case branch in exchange for a rebabbited rod, providing old rod is in otherwise good condition.

1шт.

4449a

4449A

FLYWHEEL crankshaft, L321249 and below, Start Year: 01-JAN-29

1шт.

a44449a

A44449A

FLYWHEEL crankshaft, L321246 and above to tractor no. 4206422, see 4860A, Years: 01-JAN-29-01-JAN-38

1шт.

4453a

4453A

CAP crankshaft bearing, center, Start Year: 01-JAN-29

1шт.

4454a

4454A

CAP crankshaft bearing, front or rear, Start Year: 01-JAN-29

2шт.

4455a

4455A

LINER crankshaft bearing, front or rear, upper, not fitted, see 3225AA, 3426AA, and 3486AA, Start Year: 01-JAN-29

2шт.

4457a

4457A

LINER crankshaft bearing, center, lower, not fitted, see 3225AA, 3426AA, and 3486AA, Start Year: 01-JAN-29

1шт.

4458a

4458A

LINER crankshaft bearing, center, upper, not fitted, see 3225AA, 3426AA, and 3486AA, Start Year: 01-JAN-29

1шт.

4860a

4860A

FLYWHEEL crankshaft, tractor no. 4206422 and after, see A44494, Start Year: 01-JAN-38

1шт.

When starting attachment is used, order 1232AA

1шт.

6020a

6020A

LINER crankshaft bearing, front or rear, upper, .090" undersize, not fitted, see 4455A, Start Year: 01-JAN-29

2шт.

6021a

6021A

LINER crankshaft bearing, front or rear, lower, .090" undersize, not fitted, see 4456A, Start Year: 01-JAN-29

2шт.

6022a

6022A

LINER crankshaft bearing center, upper, .090" undersize, not fitted, see 4458A, Start Year: 01-JAN-29

1шт.

6023a

6023A

LINER crankshaft bearing, center, lower, .090" undersize, not fitted, see 4457A, Start Year: 01-JAN-29

1шт.

06910a

O6910A

DOWEL crankshaft bearing, Start Year: 01-JAN-29

3шт.

0794ab

O794AB

THROWER oil, crankshaft, front, Start Year: 01-JAN-29

1шт.

01148ab

O1148AB

CRANKSHAFT, Start Year: 01-JAN-29

1шт.

KEY no.152, woodruff, crankshaft

3шт.

01152ab

O1152AB

NUT crankshaft bearing cap stud, Start Year: 01-JAN-29

12шт.

01158ab

O1158AB

SHIM crankshaft center bearing, Start Year: 01-JAN-29

2шт.

01159ab

O1159AB

SHIM crankshaft front or rear bearing, Start Year: 01-JAN-29

4шт.

01159ab

O1160AB

GEAR crankshaft, Start Year: 01-JAN-29

1шт.

01161ab

O1161AB

STUD crankshaft bearing cap, Start Year: 01-JAN-29

12шт.

01223ab

O1223AB

BOLT flywheel, crankshaft, Start Year: 01-JAN-29

6шт.

NUT 5/8" hexagon, jam, N.F. thread, crankshaft

6шт.

WASHER 5/8" standard lock, crankshaft

6шт.

01550ab

O1550AB

BEARING pilot, clutch shaft, crankshaft, new departure no. 1206, use O1550AB1

1шт.

01550ab1

O1550AB1

BEARING pilot, clutch shaft, crankshaft, new departure no.7206, Start Year: 01-JAN-30

1шт.

03097ab

A26699

GEAR, RING

GEAR flywheel ring, crankshaft, tractor no. 4206422 and after, used with starting attachment, see 1232AA, Start Year: 01-JAN-38

1шт.

1232aa

1232AA

FLYWHEEL with ring gear, crankshaft, tractor no. 4206422 and after, see A4449A, Start Year: 01-JAN-38

1шт.

3225aa

3225AA

LINERS and shims, set of main bearing, crankshaft, Start Year: 01-JAN-29

1шт.

Consists of: 2-4455A, 2-4456A, 1-4457A, 1-4458A, 2-01158AB, and 4-01159AB

1шт.

3426aa

3426AA

LINERS and shims, set of main bearing, .020" undersize, machined to fit, crankshaft, Start Year: 01-JAN-29

1шт.

Consists of front, center, rear, upper and lower liners, with 2-01158AB and 2-01159AB shims

1шт.

3486aa

3486AA

LINERS and shims, set of main bearing, .010" undersize, machined to fit, crankshaft, Start Year: 01-JAN-29

1шт.

Consists of front, center, rear, upper and lower liners, with 2-01158AB and 2-01159AB shims

1шт.

05591a

O5591A

UNION 3/8" pipe thread x 1/4" tube size, flared tube, for O1347AB tube, crankshaft, Start Year: 01-JAN-29

1шт.

05592a

O5592A

NUT 3/8" flared tube, for O1346AB and O1349AB tubes, crankshaft, Start Year: 01-JAN-29

4шт.

06942a

O6942A

NUT 1/4" flared tube, for O1349AB tube, crankshaft, Start Year: 01-JAN-29

2шт.

07000a

O7000A

UNION 3/8" pipe thread x 1/2" tube size, flared tube, for O6786AB tube, oil, Start Year: 01-JAN-29

1шт.

07001a

O7001A

NUT 1/2" flared tube, for O1345AB tube, oil, Start Year: 01-JAN-29

1шт.

01342ab1

O1342AB1

PIPE crankshaft center bearing cap, oil, tube, Start Year: 01-JAN-29

1шт.

01343ab

O1343AB

CROSS crankshaft center bearing cap, oil tube, Start Year: 01-JAN-29

1шт.

01344ab

O1344AB

TEE crankshaft rear bearing cap, oil tube, Start Year: 01-JAN-29

1шт.

01345ab

A27113

TUBE

oil pump, use O6786AB

1шт.

01346ab

O1346AB

TUBE crankshaft rear, oil, Start Year: 01-JAN-29

1шт.

01347ab

O1347AB

TUBE crankshaft front, oil, Start Year: 01-JAN-29

1шт.

01348ab

O1348AB

CONNECTION oil gauge tube, L300401 and below, Years: 01-JAN-29-01-JAN-30

1шт.

01348ab1

O1348AB1

CONNECTION oil gauge tube, L300400 and above, Start Year: 01-JAN-31

1шт.

TEE 1/8" pipe thread x 3/16" tube size, dole A14 service, oil

1шт.

01349ab

O1349AB

TUBE inner, to oil gauge, Start Year: 01-JAN-29

1шт.

06786ab

A27113

TUBE

oil pump to distributor tee, Start Year: 01-JAN-29

1шт.
