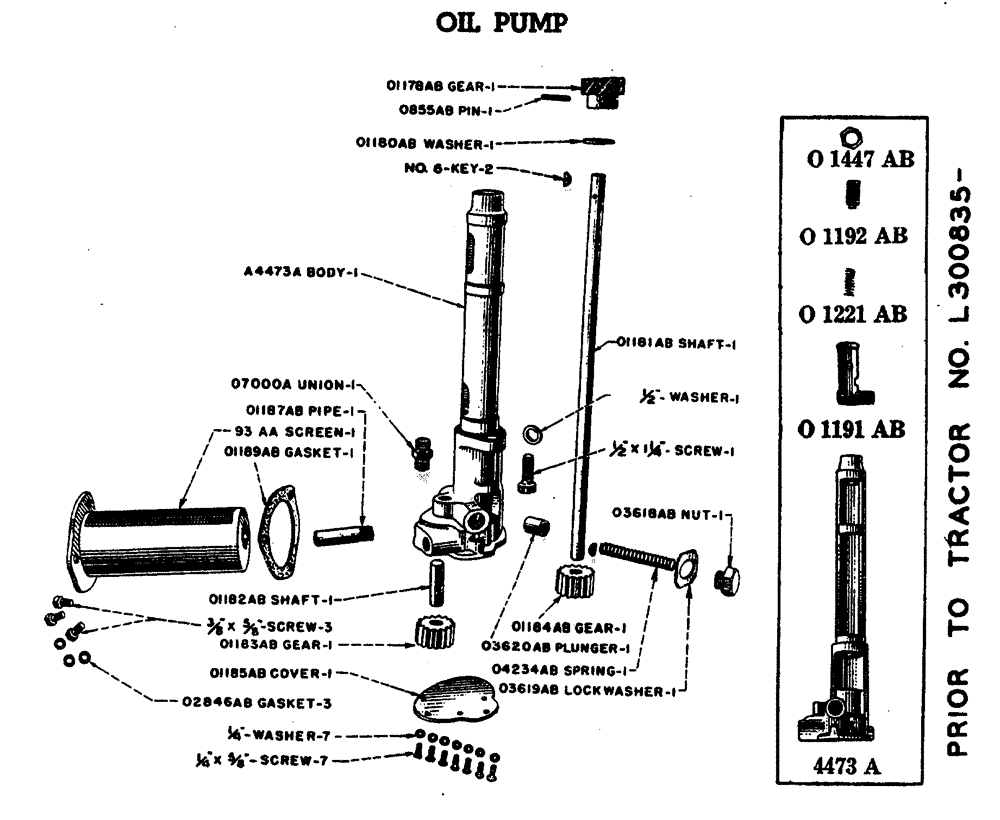

Запчасти Case IH L-SERIES (004) - OIL PUMP (02) - ENGINE

4473a

4473A

BODY oil pump, L300835 and below, for repairs furnish;, Years: 01-JAN-29-01-JAN-35

1шт.

a4473a

A4473A

BODY

1шт.

04234ab

A26776

SPRING

1шт.

03618ab

O3618AB

LOCKWASHER

1шт.

03620ab

O3620AB

PLUNGER

1шт.

SCREW 1/2" x 1 - 1 4" hex. hd. cap, N.C. thread

1шт.

WASHER 1/2" std. lock

1шт.

PIN 1/8" x 1 - 1/2" cotter

1шт.

ELBOW 1/2" flared tube, 3/8" pipe thread x 3/4" N.F. thread

1шт.

a4473a

A4473A

BODY oil pump, L300834 and up, Start Year: 01-JAN-35

1шт.

SCREW 1/2" x 1 - 1/4" hex. hd. cap, N.C. thread

1шт.

WASHER 1/2" standard lock

1шт.

ELBOW 1/2" flared tube x 3/8" pipe thread x 3/4" N.F. thread

1шт.

4474a

A28330

SCREEN

FLANGE oil pump screen, use 93AA

1шт.

4475a

A28330

SCREEN

HEAD oil pump screen, use 93AA

1шт.

5846a

5846A

BODY oil relief valve, L300835 and below, Years: 01-JAN-29-01-JAN-35

1шт.

07000a

O7000A

UNION 3/8" pipe thread x 1/2" tube size, flared tube, for O6786AB tube, Start Year: 01-JAN-29

1шт.

0855ab

O855AB

PIN oil pump shaft gear, Start Year: 01-JAN-29

1шт.

0915ab

O915AB

SPRING oil pump relief plunger, use O4234AB, Years: 01-JAN-35-01-JAN-37

1шт.

01178ab

O1178AB

GEAR oil pump drive shaft, Start Year: 01-JAN-29

1шт.

KEY no. 6 Woodruff

1шт.

01130ab

O1130AB

WASHER thrust, oil pump, Start Year: 01-JAN-29

1шт.

01181ab

O1181AB

SHAFT drive, oil pump, Start Year: 01-JAN-29

1шт.

KEY no. 6 Woodruff

2шт.

01182ab

O1182AB

SHAFT stud, oil pump, Start Year: 01-JAN-29

1шт.

01183ab

A26471

GEAR

oil pump, without keyway, Start Year: 01-JAN-29

1шт.

01184ab

O1184AB

GEAR oil pump, with keyway, Start Year: 01-JAN-29

1шт.

KEY no. 6 Woodruff

1шт.

01185ab

O1185AB

COVER oil pump body, Start Year: 01-JAN-29

1шт.

SCREW 1/4" x 5/8" round head machine, N.C. thread

7шт.

WASHER 1/4" standard lock

7шт.

01187ab

O1187AB

PIPE inlet, oil pump, 3/8" x 2 - 1/2" long, Start Year: 01-JAN-29

1шт.

01189ab

A31037

GASKET

oil pump screen, Start Year: 01-JAN-29

1шт.

01191ab

O1191AB

BODY oil relief valve, use 5846A

1шт.

01192ab

O1192AB

SCREW adjusting, oil relief valve, L300835 and below, Years: 01-JAN-29-01-JAN-35

1шт.

01221ab

O1221AB

SPRING oil relief valve, L300835 and below, see O4234AB, Years: 01-JAN-29-01-JAN-35

1шт.

01447ab

O1447AB

LOCKNUT oil relief valve adjusting screw, L300835 and below, see O3618AB, Years: 01-JAN-29-01-JAN-35

1шт.

02846ab

A26676

GASKET

oil screen cap screw, Start Year: 01-JAN-30

3шт.

03618ab

O3618AB

NUT relief, oil pump, L300834 and up, Start Year: 01-JAN-35

1шт.

03619ab

O3619AB

LOCKWASHER oil pump relief nut, L300834 and up, Start Year: 01-JAN-35

1шт.

03620ab

O3620AB

PLUNGER relief, oil pump, L300834 and up, Start Year: 01-JAN-35

1шт.

04234ab

A26776

SPRING

oil pump relief plunger, L300834 and up, see O1221AB, Start Year: 01-JAN-35

1шт.

58aa

58AA

PUMP oil, with screen, use A58AA

1шт.

a58aa

A58AA

PUMP oil, with screen, Start Year: 01-JAN-29

1шт.

93aa

A28330

SCREEN

oil pump, Start Year: 01-JAN-29

1шт.

SCREW 3/8" x 5/8" hexagon head cap, N.C. thread

3шт.
