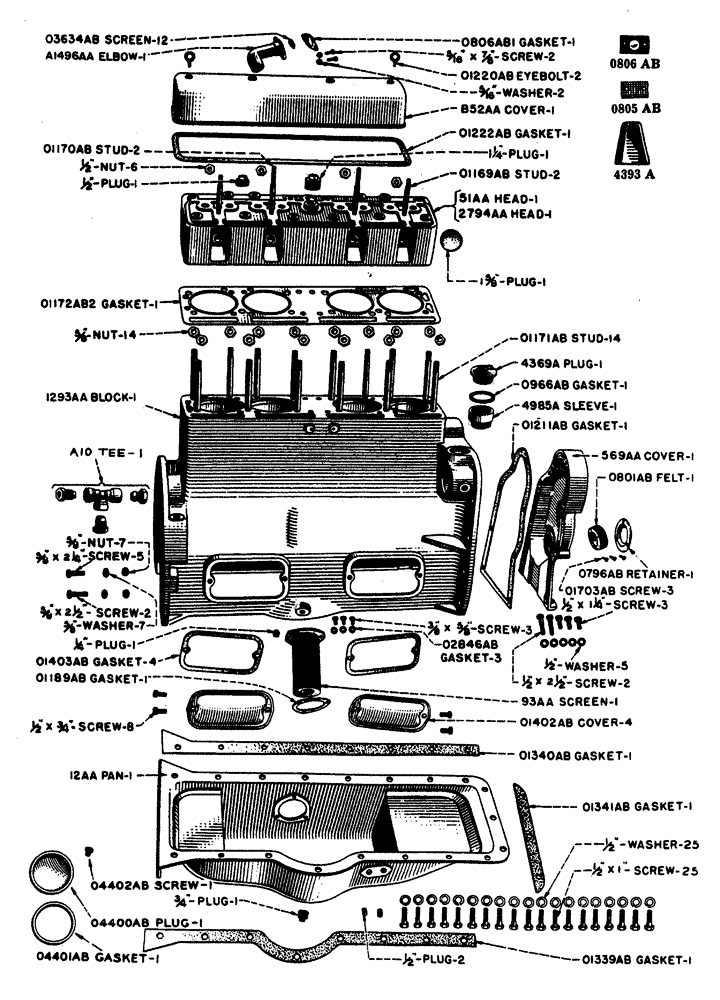

Запчасти Case IH L-SERIES (003) - CYLINDER HEAD, CYLINDER BLOCK AND OIL PAN (02) - ENGINE

4393a

4393A

BODY breather, cylinder head, L355363 and below, use 443AA, Years: 01-JAN-29-01-JAN-30

1шт.

4447a

4447A

HEAD cylinder, use 51AA or 2794AA

1шт.

4448a

4448A

COVER cylinder head, use B52AA

1шт.

a4448a

A4448A

COVER cylinder head, use B52AA

1шт.

4790a

4790A

BODY breather, cylinder head, L355362 and up, see 443AA, Years: 01-JAN-30-01-JAN-34

1шт.

SCREW 5/16" x 3/4" round head machine, N.C. thread, cylinder head

2шт.

WASHERS 5/16" standard lock, cylinder head

2шт.

WOOL 1/2 oz., no. 2 steel, cylinder head

1шт.

a4790a

A4790A

BODY breather, cylinder head, use A1496AA

1шт.

b4790a

B4790A

BODY breather, cylinder head, use A1496AA

1шт.

0805ab

O805AB

SCREEN for 4393A or 4790A breather body, cylinder head, see O3634AB, Years: 01-JAN-29-01-JAN-34

1шт.

0806ab

O806AB

GASKET for 4393A or 4790A breather body, cylinder head, see O806AB1, Years: 01-JAN-29-01-JAN-34

1шт.

0806ab1

O806AB1

GASKET for A4790A or B4790A breather body, cylinder head, see O806AB, Start Year: 01-JAN-35

1шт.

01169ab

O1169AB

STUD valve, rocker arm, bracket, short, cylinder head, Start Year: 01-JAN-29

2шт.

NUT 1/2" hexagon, light, semi-finish, N.F. thread, cylinder head

2шт.

01170ab

O1170AB

STUD valve, rocker arm, bracket, long, cylinder head, Start Year: 01-JAN-29

2шт.

NUT 1/2" hexagon, light, semi-finish, N.F. thread, cylinder head

2шт.

01171ab

O1171AB

STUD cylinder head, Start Year: 01-JAN-29

14шт.

NUT 5/8" hexagon, semi-finish, N.F. thread, cylinder head

14шт.

01172ab2

O1172AB2

X

GASKET cylinder head, Start Year: 01-JAN-29

1шт.

01177ab

O1177AB

TROUGH oil, cylinder head cover, L357341 and below, Years: 01-JAN-29-01-JAN-30

1шт.

SCREW no. 10 - 32 x 1-1/4" round head machine, N.C. thread, cylinder head

2шт.

01177ab

O1177AB

NUT no. 10 - 32 hexagon, N.C. thread, cylinder head

2шт.

01220ab

O1220AB

EYEBOLT cylinder head cover, Start Year: 01-JAN-29

2шт.

01222ab

O1222AB

X

GASKET cylinder head cover, Start Year: 01-JAN-29

1шт.

02729ab

O2729AB

COVER for 4790A breather body, L355362 and up, Years: 01-JAN-30-01-JAN-34

1шт.

SCREW 1/4", 20 x 1/2" round head machine, N.C. thread, cylinder head

2шт.

WASHER 1/4" standard lock, cylinder head

2шт.

02730ab

O2730AB

GASKET for O2729AB breather cover, cylinder head, L355362 and up, Years: 01-JAN-30-01-JAN-34

1шт.

03634ab

O3634AB

SCREEN for A4790A or B4790A breather elbow, cylinder head, see O805AB, Start Year: 01-JAN-35

1шт.

51aa

51AA

HEAD cylinder, with valve guides and valve inserts, see 27994AA, Start Year: 01-JAN-29

1шт.

PLUG 1/2" pipe, square head, cylinder head

1шт.

PLUG 1 - 1/4" pipe, square head, cylinder head

1шт.

PLUG 1 - 5/8", welch, cylinder head

1шт.

b52aa

B52AA

COVER cylinder head, with breather elbow, Start Year: 01-JAN-29

1шт.

443aa

443AA

BREATHER complete with steel wool, cylinder head, see A1485AA, Years: 01-JAN-29-01-JAN-34

1шт.

SCREW 5/16" x 3/4" round head machine, N.C. thread, cylinder head

2шт.

WASHER 5/16" standard lock, cylinder head

2шт.

a1496aa

A1496AA

BREATHER complete with screens, cylinder head, see 443AA, Start Year: 01-JAN-35

1шт.

SCREW 5/16" x 7/8" hexagon head cap, N.C. thread, cylinder head

2шт.

WASHER 5/16" standard lock

2шт.

2794aa

2794AA

HEAD cylinder, with guides, inserts, valves, valve springs, Start Year: 01-JAN-29

1шт.

PLUG 1/2" pipe, square head, cylinder head

1шт.

PLUG 1 - 1/4" pipe, square head, cylinder head

1шт.

PLUG 1 - 5/8", welch, cylinder head

1шт.

4369a

4369A

X

PLUG crankshaft filler, cylinder block, Start Year: 01-JAN-29

1шт.

4446a

4446A

BLOCK cylinder, use 342AA

1шт.

4862a

4862A

BLOCK cylinder, use 1293AA

1шт.

4985a

4985A

SLEEVE crankcase filler, cylinder block, L300767 and up, Start Year: 01-JAN-34

1шт.

0966ab

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

GASKET for 4369A filler plug, cylinder block, Start Year: 01-JAN-29

1шт.

01402ab

O1402AB

COVER crankcase hand hole, cylinder block, Start Year: 01-JAN-29

4шт.

01402ab

O1402AB

SCREW 1/2" x 3/4" hexagon head cap, N.C. thread, cylinder block

8шт.

01403ab

A26526

GASKET

crankcase hand hold, cover, cylinder block, Start Year: 01-JAN-29

4шт.

04400ab

O4400AB

PLUG starter motor opening, cylinder block, tractor no. 4206422 and after, Start Year: 01-JAN-38

1шт.

04401ab

O4401AB

GASKET starter motor opening plug, cylinder block, tractor no. 4206422 and after, Start Year: 01-JAN-38

1шт.

04402ab

O4402AB

SCREW cap, starter motor opening plug, cylinder block, use O8194AB

1шт.

08194ab

O8194AB

SCREW cap, starter motor opening plug, cylinder block, tractor no. 4206422 and after, Start Year: 01-JAN-38

1шт.

342aa

342AA

BLOCK cylinder, with main bearing caps and liners reamed to standard size, less cylinder sleeves, for tractors without starter, prior to tractor no. 4206422, see 1293AA, Years: 01-JAN-29-01-JAN-38

1шт.

PLUG 1/4" pipe, square head, cylinder block

1шт.

BOLT 5/8" x 2 - 1/4" machine, with hexagon nut, cylinder block

6шт.

BOLT 5/8" x 2 - 1/2" machine, with hexagon nut, cylinder block

2шт.

WASHER 5/8" standard lock, cylinder block

8шт.

1293aa

1293AA

BLOCK cylinder, with main bearing caps and liners reamed to standard size, less cylinder sleeves, for tractors with provision for starter, tractor no. 4206422 and after, see 342AA, Start Year: 01-JAN-38

1шт.

PLUG 1/4" pipe, square head, cylinder block

1шт.

TEE A10 union, 5/16" tube size, cylinder lock

1шт.

SCREW 5/8" x 2 - 1/4" hexagon head cap, N.F. thread, cylinder block

5шт.

SCREW 5/8" x 2 - 1/2" hexagon head cap, N.F. thread, cylinder block

2шт.

NUT 5/8" hexagon, light, N.F. thread, cylinder block

7шт.

WASHER 5/8" standard lock, cylinder block

7шт.

4459a

4459A

COVER timing gear, use 569AA

1шт.

0796ab

O796AB

RETAINER crankshaft front felt, timing gear cover, Start Year: 01-JAN-29

1шт.

0801ab

O801AB

FELT washer, crankshaft, timing gear cover, Start Year: 01-JAN-29

1шт.

01211ab

A26482

GASKET

timing gear cover, Start Year: 01-JAN-29

1шт.

01703ab

O1703AB

SCREW crankshaft felt retainer, timing gear cover, Start Year: 01-JAN-29

3шт.

02819ab

O2819AB

CONNECTION governor oiling, screws into 4459A, timing gear cover, covers L300400 and up to tractor no. 4202249, Years: 01-JAN-29-01-JAN-38

1шт.

569aa

569AA

COVER timing gear, with camshaft thrust button, Start Year: 01-JAN-29

1шт.

SCREW 1/2" x 1 - 1/4" hexagon head cap, N.C. thread, timing gear cover

3шт.

SCREW 1/2" x 2 - 1/2" hexagon head cap, N.C. thread, timing gear cover

2шт.

WASHER 1/2" standard lock, timing gear cover

5шт.

01189ab

A31037

GASKET

oil pump screen, pan, Start Year: 01-JAN-29

1шт.

01339ab

O1339AB

X

GASKET oil pan, R.H., Start Year: 01-JAN-29

1шт.

01340ab

O1340AB

X

GASKET oil pan, L.H., Start Year: 01-JAN-29

1шт.

01341ab

O1341AB

X

GASKET oil pan, front, Start Year: 01-JAN-29

1шт.

02846ab

A26676

GASKET

oil screen cap screw, pan, Start Year: 01-JAN-29

3шт.

SCREW 3/8" x 5/8" hexagon cap head, N.C. thread, oil pan

3шт.

12aa

12AA

PAN oil, Start Year: 01-JAN-29

1шт.

SCREW 1/2" x 1" hexagon head cap, N.C. thread, oil pan

25шт.

WASHER 1/2" standard lock, oil pan

25шт.

PLUG 1/4" pipe, square head, oil pan

2шт.

PLUG 3/4" pipe, square head, oil pan

1шт.

93aa

A28330

SCREEN

oil pump, pan, Start Year: 01-JAN-29

1шт.

SCREW 3/8" x 5/8" hexagon head cap, N.C. thread, oil pan

3шт.
