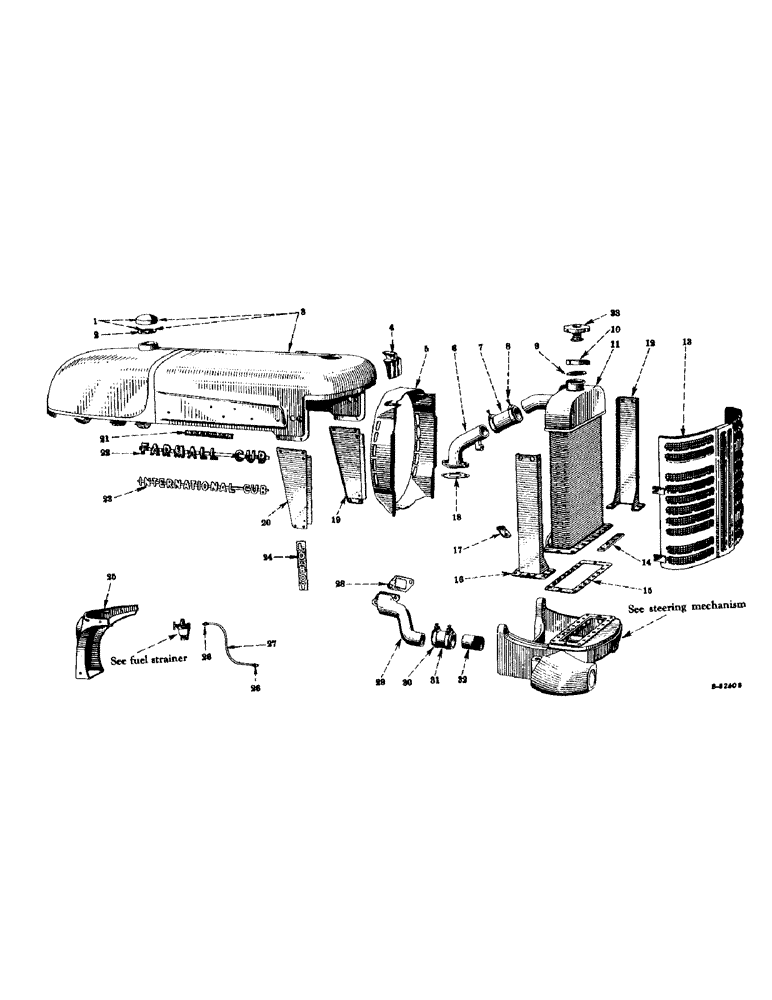

Запчасти Case IH INTERNATIONAL (13-03) - SUPERSTRUCTURE, HOOD AND FUEL TANK, SUPPORT, RADIATOR, GRILLE AND CONNECTIONS (05) - SUPERSTRUCTURE

1

23995DC

FILLER CAP

CAP ASSY, fuel tank filler

1шт.

2

23977DB

GASKET

fuel tank filler cap

1шт.

3

368757R91

HOOD AND FUEL TANK ASSY, tractors with vertical exhaust

1шт.

3

368704R91

HOOD AND FUEL TANK ASSY, tractors w/underslung exhaust

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

362687R1

EMBLEM, IH hood

1шт.

363284R2

CLIP

FASTENER, tubular clip

2шт.

5

351037R2

SHROUD

HOUSING, fan

1шт.

171573

SCREW, 10-32 x 1-4 slt-rd-hd mach

4шт.

6

251429R1

ELBOW

water outlet

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

HOSE, 1-3/4 in ID x 4 in. long, 1 ply radiator inlet, order 4 in. from bulk hose, 407006R1

1шт.

8

274087R91

HOSE CLAMP,1.50/2.38 Type F Worm

CLAMP, radiator hose

2шт.

9

351031R1

GASKET

radiator filler cap, used w/cap, 351030R91

1шт.

10

351030R91

CAP

W/GASKET, 351030R1, radiator filler, order cap 400586R1

1шт.

10

400586R1

RADIATOR CAP

CAP, radiator filler, replaces 351030R91

1шт.

11

351878R92

RADIATOR

ASSY, replaces 352903R92

1шт.

12

351477R91

BRACKET

CHANNEL, radiator side LH

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

13

362372R11

GRILLE

ASSY, radiator

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 slt-truss-hd mach

4шт.

14

351033R1

PLATE

radiator hold-down

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

15

351032R1

GASKET

radiator

1шт.

16

351478R91

BRACKET

CHANNEL, radiator side RH

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

17

351036R1

CLIP, radiator overflow pipe

1шт.

18

4665D

GASKET

water outlet elbow

1шт.

19

373883R11

GRILLE

SIDE, radiator grille LH, will work for 350984R11

1шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW, 10-24 x 1/2 c-z slt-rd-hd mach

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

20

373884R11

GRILLE

SIDE, radiator grille RH, will work for 350985R11

1шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW, 10-24 x 1/2 c-z slt-rd-hd mach

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

21

362389R1

PLATE, MCCormick name, Farmall cub tractors

2шт.

363784R1

FASTENER

tubular clip

4шт.

22

362386R2

DECAL

PLATE, Farmall cub name

2шт.

363784R1

FASTENER

tubular clip

10шт.

23

364044R1

PLATE, International cub name

2шт.

363784R1

FASTENER

tubular clip

10шт.

24

364045R1

PLATE, lo-boy name, cub lo-boy tractors only

2шт.

363784R1

FASTENER

tubular clip

4шт.

25

354912R92

STRIPPER PACKAGE

PACKAGE, hood and fuel tank support service, will work for 351508R3

1шт.

109084

NUT,1/4"-20, G5

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 znp p/hds mach

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

26

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting, fuel pipe coupling

2шт.

27

369992R11

TUBE

PIPE W/TWO NUTS, 29899D, fuel, will work for 362358R11

1шт.

28

251431R1

GASKET

water inlet elbow

1шт.

29

251430R2

PIPE

ELBOW, water inlet

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

274087R91

HOSE CLAMP,1.50/2.38 Type F Worm

CLAMP, radiator hose

2шт.

31

HOSE, 1-5/8 ID x 2-3/8 in. long, 1 ply radiator outlet, order 2-3/8 in. from bulk hose, 407005R1

1шт.

32

350888R1

FITTING

NIPPLE, radiator outlet

1шт.

33

365892R91

CAP

radiator, pressure type, special

1шт.

33

80889R91

COVER

CAP, radiator, pressure type, for use with radiator, 352903R92

1шт.
