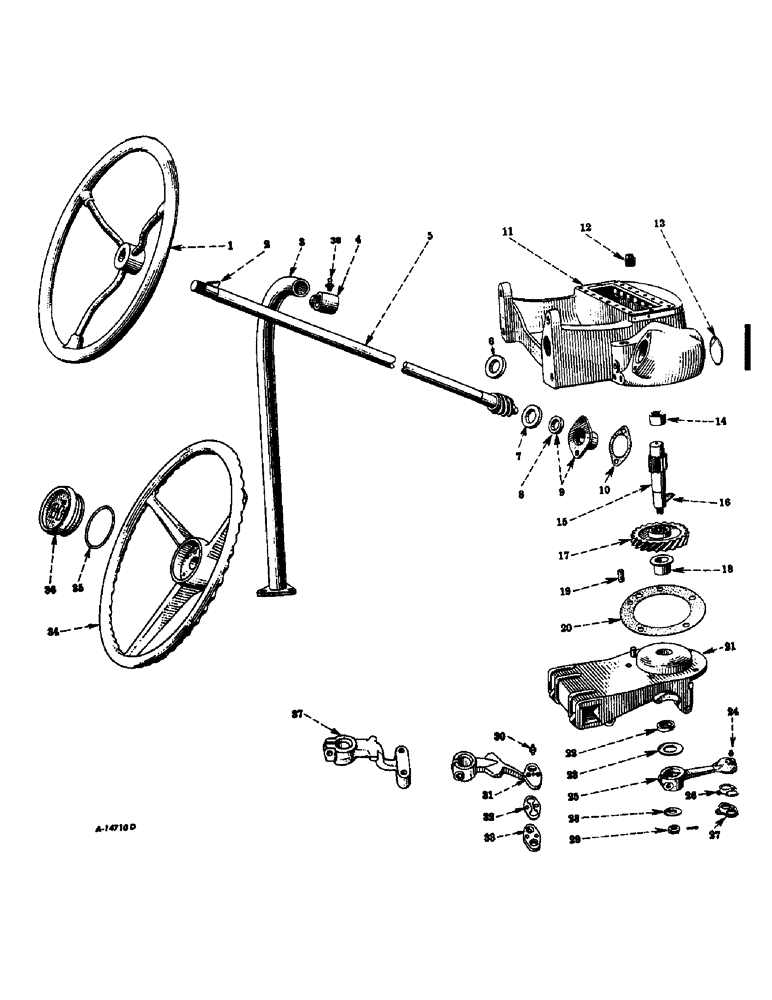

Запчасти Case IH INTERNATIONAL (05-1) - STEERING, STEERING MECHANISM (04) - STEERING

1

60069D

HANDWHEEL

WHEEL, steering, 15 in.

1шт.

2

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, 1/4 x 7/8 woodruff type A

1шт.

3

351489R11

ARM ASSY, steeriing shaft support

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

350902R3

BRACKET

steering shaft support arm

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

350894R12

SHAFT

AND WORM W/WASHERS, 350895R2 and 350897R2, steering, cub tractors w/serial no. 221871 and below, cub lo-boy tractors with serial no. 16775 and below

1шт.

5

383800R91

SHAFT

AND WORM W/WASHERS, 350896R2 and 350897R2, steering, cub tractors w/serial no. 221872 and above, cub lo-boy tractors with serial no. 16776 and above

1шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 hex. jam

1шт.

6

350896R2

THRUST WASHER

steering shaft upper thrust

1шт.

7

350897R2

THRUST WASHER

steering shaft lower thrust

1шт.

8

385703R92

OIL SEAL

SEAL, steering shaft oil

1шт.

9

350898R1

BEARING ASSY,0.876" ID x 1.812" OD x 1.71875"

steering shaft

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

350899R1

GASKET

steering shaft bearing

1шт.

11

350886R23

HOUSING ASSY, steering gear, composed of (1) bushing 350887R1, (1) housing 350886R2 (NSS), (1) nipple 350888R1, (2) plug 444576, (1) plug 172598, (1) plug 2778F, (1) plug 20972R1

1шт.

102639

NUT,5/8"-11, G5

2шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18, auto. Hex Socket

2шт.

20972R1

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 c-z auto. sq-hd pipe

1шт.

361856R1

SCREW

5/8-11 x 1-3/4 hex-hd cap

2шт.

361857R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

SCREW, 5/8-11 x 2-1/4 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

12

2778F

PLUG

steering gear housing oil filler

1шт.

13

172598

PLUG,Exp, 2 1/4"

2-1/4 in. diameter expansion

1шт.

14

350887R1

BUSHING,28.66mm ID x 31.77mm OD x 19.05mm L

steering worm wheel shaft upper

1шт.

15

350904R1

SHAFT

steering worm wheel

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

16

IH124555

WOODRUFF KEY,#16, 3/16" x 1 1/8", HT

KEY, 3/16 x 1-1/8 woodruff no. 16 ni-stl

1шт.

17

350903R1

GEAR

WHEEL, steering worm, 21 teeth, cub tractors w/serial no. 221871 and below, cub lo-boy tractors with serial no. 16775 and below

1шт.

17

383802R1

WHEEL, steering worm, 24 teeth, cub tractors w/serial no. 221872 and above, cub lo-boy tractors with serial no. 16776 and above

1шт.

18

350890R1

BUSHING,28.65mm ID x 35.01mm OD x 28.57mm L

steering worm wheel shaft lower

1шт.

19

25086DA

STUD

DOWEL, steering gear housing base

1шт.

20

350893R1

GASKET

steering gear housing base

1шт.

21

350889R11

BASE ASSY, steering gear housing, composed of (1) base 350889R1 (NSS), (1) bushing 350890R1, (1) oil seal 370510R91

1шт.

271505

BODY

7/16-20 hex.

2шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

5шт.

181407

BOLT,Hex, 7/16" - 20 x 2 1/4", Gr 5

SCREW, 7/16-20 x 2-1/4 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

7шт.

22

370510R91

OIL SEAL

SEAL, steering worm wheel shaft oil

1шт.

23

350905R1

THRUST WASHER,28.57mm ID x 57.15mm OD x 3.3mm Thk

steering worm wheel shaft thrust

1шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Taper, Straight, All cub tractors and cub lo-boy tractors w/S/N 4801 and below 1/4"-28 NPT x .54" lg

1шт.

25

350906R1

ARM

steering gear, all cub tractors and cub lo-boy tractors w/ serial no. 4801 and below

1шт.

425-117

NUT,7/16"-20, G5

7/16-20 hex.

1шт.

181407

BOLT,Hex, 7/16" - 20 x 2 1/4", Gr 5

SCREW, 7/16-20 x 2-1/4 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

26

350909R1

SHIM

steering gear arm plate light, .007, all cub tractors and cub lo-boy tractors w/serial no. 4801 and below (or as required)

2шт.

26

350910R1

SHIM

steering gear arm plate medium, .010, all cub tractors and cub lo-boy tractors w/serial no. 4801 and below (or as required)

2шт.

26

350911R1

SHIM

steering gear arm plate heavy, .060, all cub tractors and cub lo-boy tractors w/serial no. 4801 and below (or as required)

1шт.

27

350908R1

PLATE

steering gear arm, all cub tractors and cub lo-boy tractors w/serial no. 4801 and below

1шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

28

350907R1

WASHER

steering gear arm retainer

1шт.

29

70119D

NUT

steering worm wheel shaft

1шт.

30

66584D

FITTING

3/16 str drive type lub, cub lo-boy tractors w/serial no. 4802 and above

1шт.

31

368089R1

ARM

steering gear, cub lo-boy tractors w/serial no. 4802 and above

1шт.

271505

BODY

7/16-20 hex.

1шт.

181407

BOLT,Hex, 7/16" - 20 x 2 1/4", Gr 5

SCREW, 7/16-20 x 2-1/4 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

32

368093R1

SHIM

steering gear arm plate light, .007, cub lo-boy tractors w/serial no. 4802 and above (or as required)

2шт.

32

368092R1

SHIM

steering gear arm plate medium, .010, cub lo-boy tractors w/serial no. 4802 and above (or as required)

2шт.

32

368091R1

SHIM, steering gear arm plate heavy, .060, cub lo-boy tractors w/serial no. 4802 and above (or as required)

1шт.

33

368090R1

PLATE

steering gear arm, cub lo-boy tractors w/serial no. 4802 and above

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

34

627811R91

WHEEL, 18 in. steering, cub lo-boy tractors with 105 mower

1шт.

35

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

steering wheel cap retaining, cub lo-boy tractors with 105 mower

1шт.

36

366558R1

PRODUCT GRAPHIC

CAP, steering wheel cap retaining, cub lo-boy tractors with 105 mower

1шт.

37

378968R1

ARM, steering gear, cub lo-boy tractors with 105 mower

1шт.

38

66584D

FITTING

3/16 str drive type lub

1шт.
