Запчасти Case IH INTERNATIONAL (15-03) - WHEELS AND TRACTION, FRONT WHEEL WEIGHTS Wheels & Traction

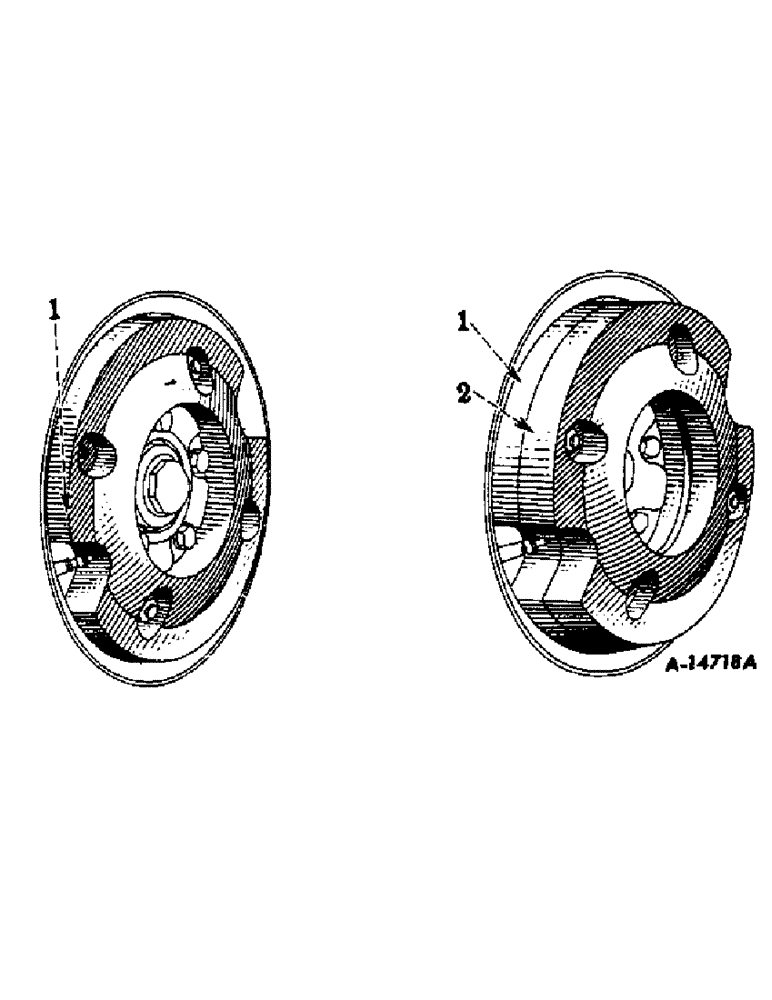

Схема запчастей Case IH INTERNATIONAL - (15-03) - WHEELS AND TRACTION, FRONT WHEEL WEIGHTS Wheels & Traction
1
2
1

Артикул

Название

Примечание

Количество

1

368838R1

WEIGHT

front wheel, inside portion, with one outside weight, approximately 25 pounds, split type inside mounted

4шт.

22313R1

BOLT, 1/2-13 x 4-1/4 znd sq-hd mach, split type inside mounted

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Split type inside mounted 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, , Split type inside mounted 1/2"

8шт.

1

368838R1

WEIGHT

front wheel, inside portion, with two outside weights, approximately 25 pounds, split type inside mounted

4шт.

22314R1

BOLT, 1/2-13 x 5-3/4 znd sq-hd mach, split type inside mounted

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Split type inside mounted 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, , Split type inside mounted 1/2"

8шт.

1

351371R1

WEIGHT, front wheel, first set, approximately 26 pounds, one piece outside mounted

2шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2-13 x 1-3/4 znd sq-nk crg, one piece outside mounted

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 piece outside mounted 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, , One piece outside mounted 1/2"

4шт.

2

351371R1

WEIGHT, front wheel, second set, approximately 26 pounds, one piece outside mounted

2шт.

22310R1

BOLT, 1/2-13 x 3-3/8 znd sq-nk crg, one piece outside mounted

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 piece outside mounted 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, , One piece outside mounted 1/2"

4шт.

Выбрано товаров: 16
