Запчасти Case IH INTERNATIONAL (15-02[1]) - WHEELS AND TRACTION, DUAL REAR WHEELS, CUB LO-BOY TRACTORS WITH 105 MOWER Wheels & Traction

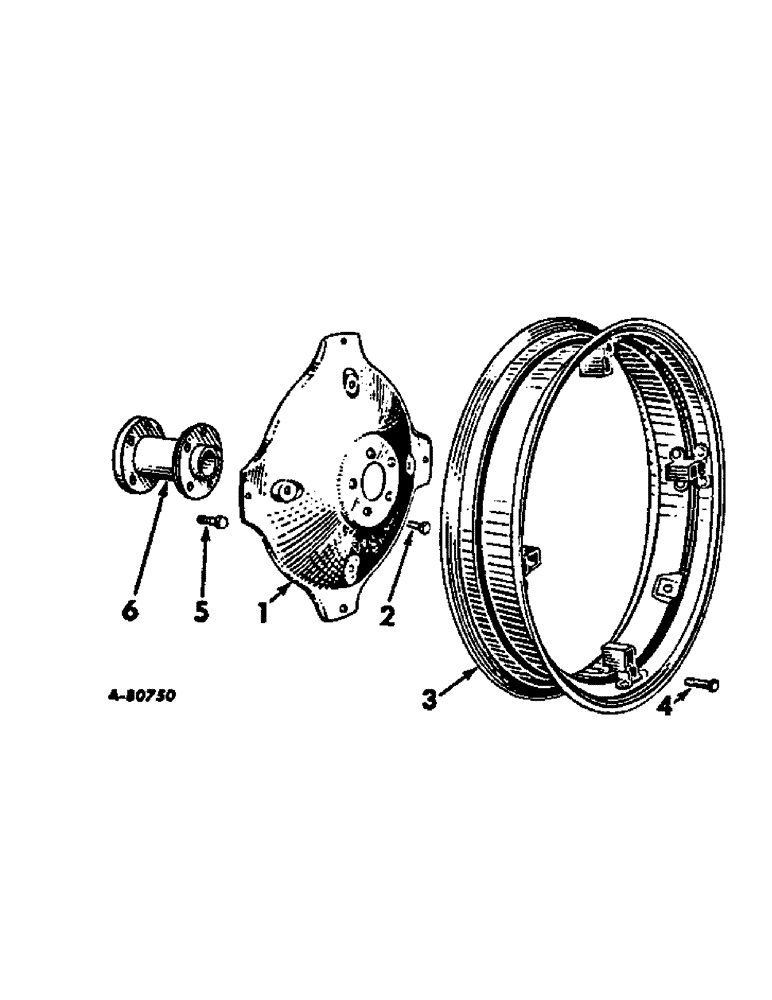

Схема запчастей Case IH INTERNATIONAL - (15-02[1]) - WHEELS AND TRACTION, DUAL REAR WHEELS, CUB LO-BOY TRACTORS WITH 105 MOWER Wheels & Traction
2
1
6
5
3
4

Артикул

Название

Примечание

Количество

1

351083R1

WHEEL, disc rear

2шт.

2

378935R1

BOLT,1/2" - 20 x 1 3/8"

rear wheel

10шт.

3

351428R91

RIM

W/CLAMPS, rear wheel, W7-24 rim for 8.3/8-24 or 9.5/9-24 tires

2шт.

4

351085R1

BOLT (SPREADER),Wheel, 1/2" - 20 x 1 3/4"

BOLT, rear wheel rim

8шт.

120371

NUT,1/2"-20, G5

8шт.

5

355065R1

BOLT

extension mounting

10шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

6

355066R1

EXTENSION, rear axle

2шт.

Выбрано товаров: 8
