Запчасти Case IH INTERNATIONAL (02-7) - PACKAGE - GASKETS Accessories & Attachments / Miscellaneous

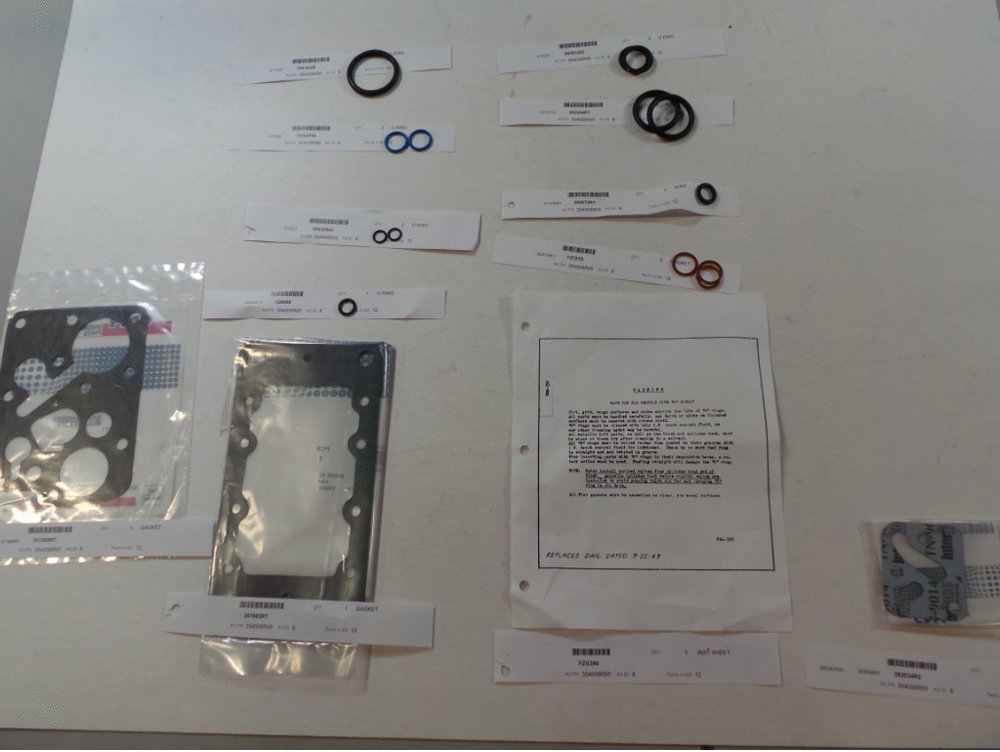

Схема запчастей Case IH INTERNATIONAL - (02-7) - PACKAGE - GASKETS Accessories & Attachments / Miscellaneous

Артикул

Название

Примечание

Количество

1

354008R95

GASKET KIT

Includes 2 - 13

1шт.

2

FZG390

INSTRUCTION

1шт.

3

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

2шт.

4

86553262

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

2шт.

5

352004R1

O-RING,0.21" Thk x 1.35" ID, -324, Cl 5, 75 Duro

2шт.

6

13727D

GASKET

3шт.

7

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1шт.

8

351989R7

GASKET

1шт.

9

351983R1

GASKET

1шт.

10

350672R1

O-RING,0.482" ID x 0.153" Width

1шт.

11

128999

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

12

75285739

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

13

352034R2

GASKET

1шт.

Выбрано товаров: 13
