Запчасти Case IH INTERNATIONAL (02-6) - MISCELLANEOUS, PNEUMATIC TIRE PUMP, SCHRADER Accessories & Attachments / Miscellaneous

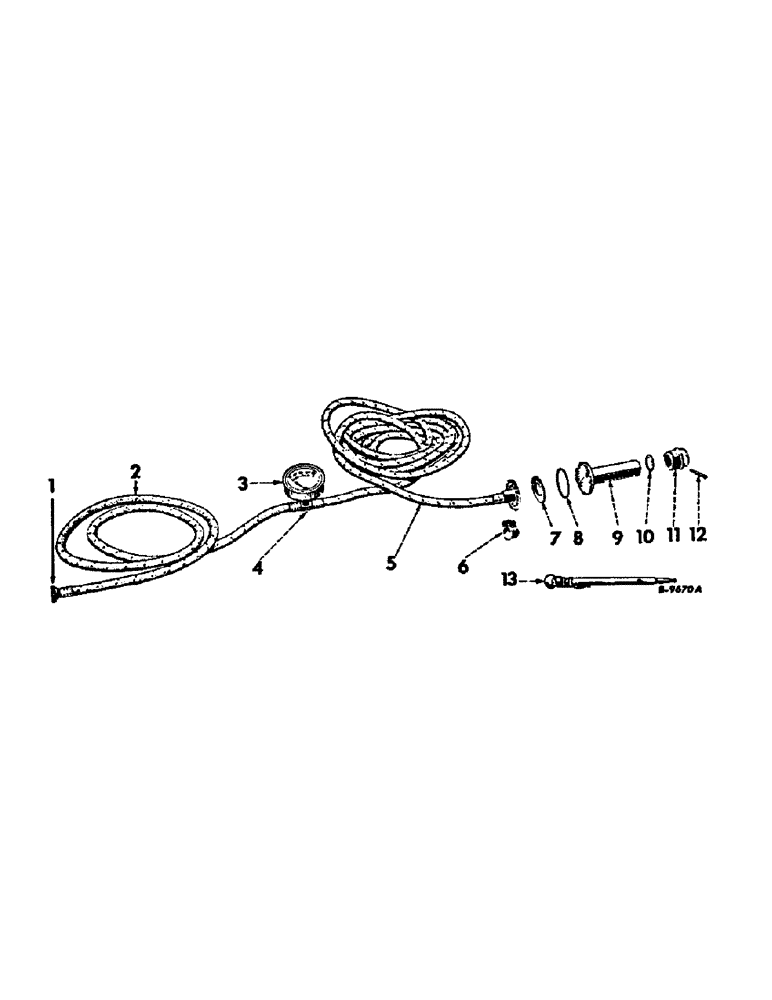

Схема запчастей Case IH INTERNATIONAL - (02-6) - MISCELLANEOUS, PNEUMATIC TIRE PUMP, SCHRADER Accessories & Attachments / Miscellaneous
4
2
11
1
12
7
13
9
8
3
10
6
5

Артикул

Название

Примечание

Количество

1

42813D

CONNECTOR, pump, discontinued for service after stock is depleted

1шт.

2

HOSE, 4 ft tire pump (NSS)

1шт.

3

GAGE, air pressure (NSS)

1шт.

4

CONNECTOR, air pressure gage (NSS)

1шт.

5

HOSE, 12 foot tire pump (NSS)

1шт.

6

CLAMP, hose (NSS)

4шт.

7

42802D

DISC, rubber, discontinued for service after stock is depleted

1шт.

8

42812D

WASHER, fiber, discontinued for service after stock is depleted

1шт.

9

SHELL, long (NSS)

1шт.

10

WASHER, inside adapter rubber (NSS)

1шт.

11

ADAPTER (NSS)

1шт.

12

SCREW, attaching, for adapter (NSS)

1шт.

13

350488R1

GAUGE

GAGE, tire pressure, for use on air-water valves

1шт.

Выбрано товаров: 13
