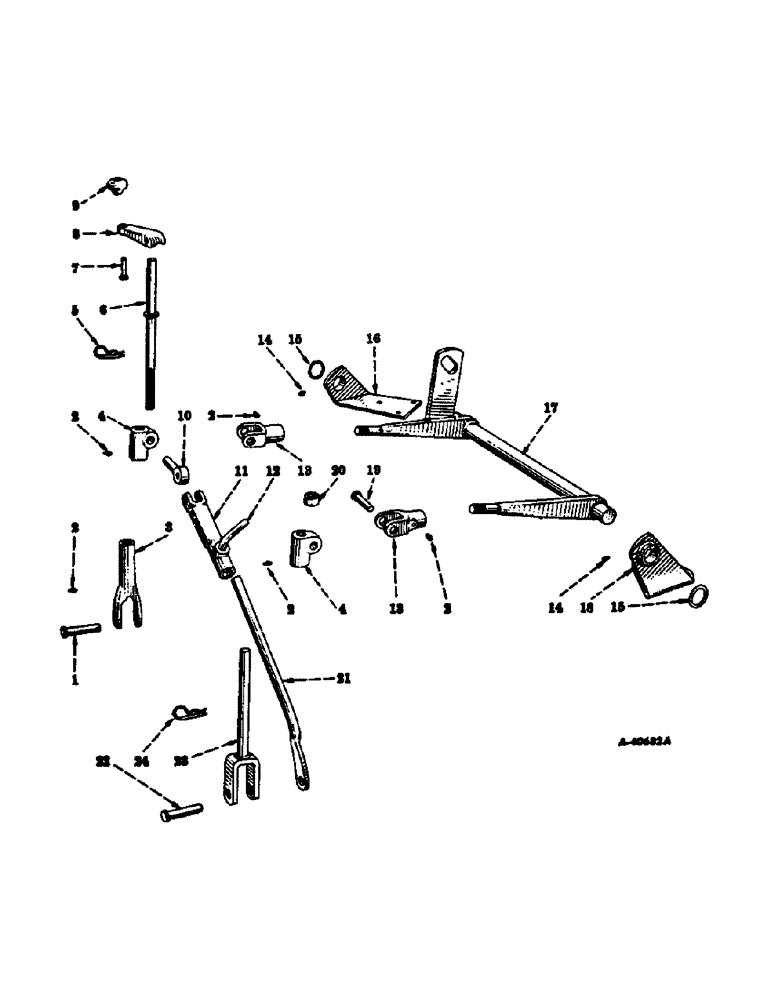

Запчасти Case IH INTERNATIONAL (09-11) - FRAME, FAST-HITCH, CUB LO-BOY TRACTORS, ROCKSHAFT, LEVELING SCREW, LATERAL LINK AND LOCKING LINK (12) - FRAME

1

518505R1

HEADED PIN,3/4" x 3"

PIN, 3/4 x 3 std-hd drilled, lateral link to swivel

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

5шт.

3

520128R1

YOKE

HOUSING, leveling screw

1шт.

4

520064R1

PIVOT

SWIVEL, lateral link upper

2шт.

5

520175R11

AXLE PIN

PIN ASSY, quick-attachable cot.

1шт.

6

521832R11

SCREW ASSY, leveling

1шт.

441012R1

LOCK PIN,1/4" x 7/8", Slotted

Pin, , ESNA 1/4" x 7/8", Slotted

1шт.

521128R1

SHIM

29/32 x 1-3/8 x 22 ga

1шт.

PO12898

WASHER

29/32 x 1-1/2 x 11 ga

1шт.

7

521672R1

PIN, 1/2 x 2-9/16 roll, leveling screw handle knob

1шт.

8

521831R1

HANDLE, leveling screw

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, , ESNA 5/16" x 1 1/2", Slotted

1шт.

9

53717DA

BUTTON

KNOB, leveling screw handle

1шт.

10

521410R1

SWIVEL, diagonal link

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

1шт.

11

520127R1

STOP, diagonal link

1шт.

Q3548

PIN,1/2" x 2 1/16"

1/2 x 2-1/16 std-hd drilled

1шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

1шт.

12

520083R1

ROD,5/8" - 11

BOLT, diagonal link stop lock

1шт.

13

520126R1

PIVOT

SWIVEL, rockshaft arm

2шт.

14

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub

2шт.

15

521423R11

PLATE ASSY, attaching rockshaft LH

1шт.

17459R1

BOLT

1/2-13 x 1-3/8 hex-hd mach

3шт.

16

521406R11

ROCKSHAFT ASSY

1шт.

13170R1

Pin, Split (Cotter), 5/16" x 2 1/4", self-opening 5/16" x 2 1/4"

2шт.

17

243

WASHER, 1-17/32 x 2 x 16 ga

2шт.

18

521424R11

PLATE ASSY, attaching rockshaft RH

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 hex-hd mach

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

19

521427R1

PIN, 3/4 x 3-1/16 std-hd drilled

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

1шт.

20

520106R1

SPACER

COLLAR, lateral link

1шт.

P13254

PIN, 5/16 x 1-9/16 std-hd drilled

1шт.

13034R1

PIN, 1/8 x 5/8 self-opening cot.

1шт.

21

520142R1

LINK, diagonal

1шт.

17098R1

LOCK PIN,3/8" x 1 3/4", Slotted

PIN, 3/8" x 1 3/4", Slotted

1шт.

22

520162R1

PIN, 3/4 x 3-3/8 std-hd drilled

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

1шт.

23

520146R11

LINK ASSY, lateral

1шт.

521128R1

SHIM

29/32 x 1-3/8 x 22 ga

1шт.

PO12898

WASHER

29/32 x 1-1/2 x 11 ga

1шт.

24

520175R11

AXLE PIN

PIN ASSY, quick-attachable cot.

1шт.
