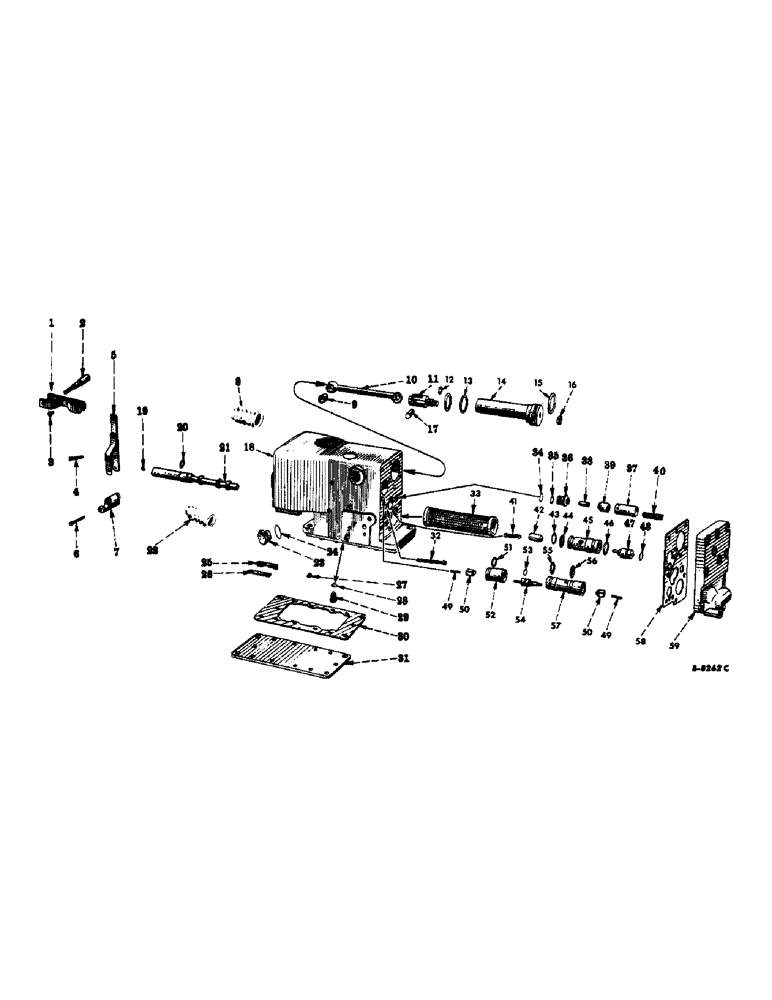

Запчасти Case IH INTERNATIONAL (10-04) - HYDRAULICS, TOUCH CONTROL SYSTEM, CYLINDER BLOCK, VALVES AND RELATED PARTS (07) - HYDRAULICS

360712R92

PARTS ACCESSORY, Farmall touch-control, will work for 352000R92 and 354396R94, consists of all the parts listed below, except those for 105 mower

1шт.

1

352018R12

LINK ASSY, control valve operating

1шт.

2

352010R1

STUD

PIN, connecting rod

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

1шт.

108628

PIN

1/16 x 7/8 cot.

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

3

350680R2

PIN

control valve operating lock

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

4

354392R1

PIN, control valve

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

5

354391R91

LEVER ASSY, control valve operating

1шт.

6

354394R1

PIN, control valve operating lever

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

7

354395R1

YOKE, control rod adjustable

1шт.

8

364833R1

INSULATOR

BOOT, piston sleeve, rubber, will work for leather boot, 352005R3

1шт.

WIRE, 18 ga x 40 in. long locking, not used on rubber boot, purchase locally

1шт.

WIRE, 18 ga x 4 in. long locking, not used on rubber boot, purchase locally

1шт.

9

352007R1

BUSHING

connecting rod

1шт.

10

352006R11

ROD

W/BUSHING, 352007R1, connecting

1шт.

11

355729R1

YOKE

connecting rod

1шт.

12

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32, connecting rod yoke seal

1шт.

13

352004R1

O-RING,0.21" Thk x 1.35" ID, -324, Cl 5, 75 Duro

RING, piston sleeve seal

2шт.

14

358207R91

PISTON ASSY.

PISTON ASSY

1шт.

15

461173R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

RING, piston sleeve seal

1шт.

16

9411648

LOCK NUT,1/2"-20, GC

NUT, 1/2-20 PHC gripo lock type 8, connecting rod yoke

1шт.

17

352009R1

PIN, connecting rod yoke

1шт.

18

354381R96

BLOCK ASSY, cylinder, will work for 351985R92, 351981R1 (NSS), 354383R1 (NSS) thru 354383R4 (NSS) and 360719R1 (NSS), composed of ref nos 1 through 59 and attaching hardware

1шт.

18

381226R91

BLOCK ASSY, cylinder, tractors with 105 mower, composed of ref nos 1 through 59 and attaching hardware

1шт.

18

360719R11

BLOCK ASSY, cylinder, replaces 381227R91, composed of (1) block 360719R1 (NSS), (1) gasket 3405H, (1) orifice assy 355372R93, (1) plug 172574, (9) plug 444687, (1) plug 445096, (1) ring 350672R1, (1) screen 354269R1, (1) screw 102570, (1) valve 354264R91

1шт.

444687

PLUG,Hex Soc, 1/8"-27

1/8-27 auto. sq-hd pipe, in cylinder head

1шт.

172574

PLUG,Exp, 1 1/2"

1-1/2 diameter expansion, in cylinder block

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

19

83-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW, 1/4-20 x 3/8 hex-soc-hd cup-pt set, in control valve

1шт.

20

350672R1

O-RING,0.482" ID x 0.153" Width

RING, control valve seal

1шт.

21

VALVE, control, not serviced separately, order cylinder block assy

1шт.

444687

PLUG,Hex Soc, 1/8"-27

1/8-27 auto. sq-hd pipe, Control valve

1шт.

22

364832R1

INSULATOR

BOOT, control valve, rubber, will work for leather boot, 351753R3

1шт.

WIRE, 18 ga x 6-1/2 in. long locking, not used on rubber boot, purchase locally

1шт.

WIRE, 18 ga x 4 in. long locking, not used on rubber boot, purchase locally

1шт.

23

445096

PLUG

7/8-18 hex-hd outside filler cap drain, in cylinder block

1шт.

24

3405H

GASKET

filler plug

1шт.

25

352027R2

STOP, control valve operating lever

1шт.

179814

SPACER

2шт.

26

351697R1

LOCK, control valve operating lever stop

1шт.

27

444687

PLUG,Hex Soc, 1/8"-27

1/8-27 auto. sq-hd pipe

7шт.

28

354269R1

SIEVE

SCREEN, relief valve

1шт.

29

354264R91

VALVE

ASSY, relief

1шт.

30

351983R1

GASKET

cylinder block cover

1шт.

31

351982R1

COVER, cylinder block

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

32

355372R93

VENT

ORIFICE ASSY, replaces 351156R1

1шт.

33

351984R92

FILTER STRAINER

STRAINER ASSY, cylinder block oil

1шт.

34

360476R1

VALVE SPRING

SPRING, safety valve busing tension

1шт.

35

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32, safety valve inner bushing

1шт.

36

360475R1

BUSHING

safety valve inner

1шт.

37

360474R1

BUSHING

safety valve outer

1шт.

38

361341R3

PISTON ASSY.

PISTON, safety valve

1шт.

39

361342R1

SLEEVE

safety valve

1шт.

40

361340R2

VALVE SPRING

SPRING, safety valve

1шт.

41

360728R1

VALVE SPRING

SPRING, pressure regulator check valve

1шт.

42

360726R1

LOCK VALVE

VALVE, pressure regulator check

1шт.

43

360727R1

SPRING WASHER

SPRING, pressure regulator valve tension

1шт.

44

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 1 x 1/8, pressure regulator valve bushing front

1шт.

45

360723R1

VALVE

BUSHING, pressure regulator valve

1шт.

46

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

7/8 x 1-1/8 x 1/8, pressure regulator valve bushing rear

1шт.

47

360724R11

PISTON ASSY.

PISTON ASSY, pressure regulator valve

1шт.

48

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, pressure regulator valve piston

1шт.

49

350668R1

VALVE SPRING

SPRING, check valve

2шт.

50

354057R2

VALVE

check

2шт.

51

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32, check valve bushing seal inner

1шт.

52

360721R1

BUSHING

check valve inner

1шт.

53

252738R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

3/8 x 9/16 x 3/32, check valve actuator, will work for 360717R1

1шт.

54

360723R1

VALVE

ACTUATOR, check valve

1шт.

54

381207R1

ACTUATOR, check valve, restricted, tractors with 105 mower

1шт.

55

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 1 x 1/8, check valve bushing outer small

1шт.

56

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

13/16 x 1-1/16 x 1/8, check valve bushing outer large

1шт.

57

360722R1

BUSHING

check valve outer

1шт.

58

351989R6

GASKET

cylinder head

1шт.

59

354399R21

HEAD W/PLUGS, 444654 and 444660, cylinder

1шт.

444654

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 auto. sq-soc pipe

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto. sq-soc pipe

1шт.

23164R1

SCREW

3/8-16 x 1-1/4 type 8 hex-hd cap

2шт.

354921R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

SCREW, 3/8-16 x 1-1/2 type 8 hex-hd cap

7шт.

354922R1

SCREW,Hex, 3/8"-16 x 2", G8

3/8-16 x 2 type 8 hex-hd cap

1шт.

372703R5

FLUID, hy-tran, quart can

1шт.

372704R5

FLUID

hy-tran, gallon can

1шт.

372705R5

FLUID

hy-tran, five gallon can

1шт.

407024R5

FLUID, hy-tran, fifteen gallon can

1шт.

360713R91

GASKET

1шт.

PACKAGE, cylinder block gasket and seal ring, consists of (1) gasket 351953R1, (1) gasket 351989R6, (1) gasket 352034R1, (1) o-ring 253070R1, (1) o-ring 252738R1, (1) o-ring 254691R1, (3) o-ring 350667R1, (2) o-ring 350684R1, (1) o-ring 352221R1, (2) o-ring 355966R1, (1) ring 350672R1, (2) ring 352004R1, (1) ring 461173R1

1шт.

381228R91

PACKAGE, touch-control conversion, for tractors with 105 mower, consists of (1) gasket 351989R6, (1) valve 381207R1

1шт.
