Запчасти Case IH INTERNATIONAL (13-05) - SUPERSTRUCTURE, HOOD AND FUEL TANK, SUPPORT, RADIATOR, GRILLE AND CONNECTIONS (05) - SUPERSTRUCTURE

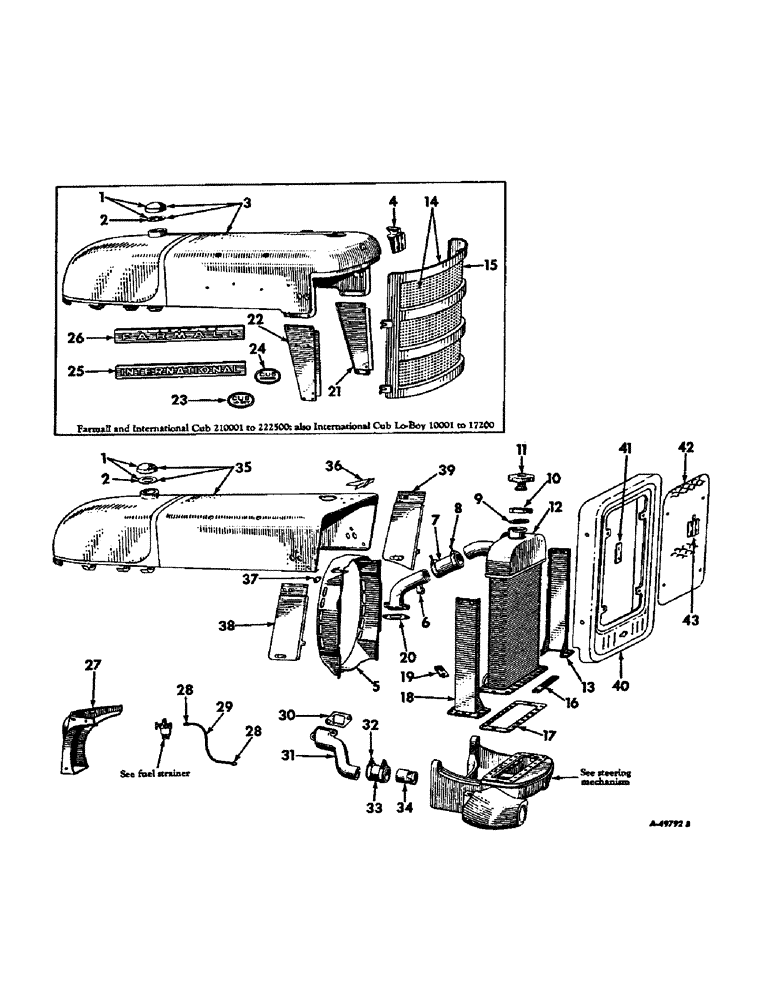

Схема запчастей Case IH INTERNATIONAL - (13-05) - SUPERSTRUCTURE, HOOD AND FUEL TANK, SUPPORT, RADIATOR, GRILLE AND CONNECTIONS (05) - SUPERSTRUCTURE
42
9
26
8
30
5
1
29
17
15
24
25
27
22
18
38
43
2
40
13
14
36
7
21
31
2
37
12
39
6
23
11
3
1
10
34
32
33
16
28
4
19
41
35
20
28

Артикул

Название

Примечание

Количество

1

23995DC

FILLER CAP

CAP ASSY, fuel tank filler

1шт.

2

23977DB

GASKET

fuel tank filler cap

1шт.

3

368757R91

HOOD AND FUEL TANK ASSY, tractors with vertical exhaust

1шт.

3

368704R91

HOOD AND FUEL TANK ASSY, tractors with underslung exhaust

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

362387R1

EMBLEM, IH hood

1шт.

363284R2

CLIP

FASTENER, tubular clip

2шт.

5

351037R2

SHROUD

HOUSING, fan

1шт.

171573

SCREW, 10-32 x 1/4 slt-rd-hd mach

4шт.

6

251429R1

ELBOW

water outlet

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

HOSE, 1-3/4 in. ID x 4 in. long, 1 ply radiator inlet, order 4 in. from bulk hose, 407006R1

1шт.

8

274087R91

HOSE CLAMP,1.50/2.38 Type F Worm

CLAMP, radiator hose

2шт.

9

351031R1

GASKET

radiator filler cap, used w/cap, 351030R91

1шт.

10

351030R91

CAP

W/GASKET, 351031R1, radiator filler, order cap, 400586R1

1шт.

10

400586R1

RADIATOR CAP

CAP, radiator filler, replaces 351030R91, cub tractors w/serial no. 248124 and below

1шт.

10

117536C1

CAP

radiator, cub tractors w/serial no. 248125 and above

1шт.

11

365892R91

CAP

radiator, pressure type, special

1шт.

11

80889R91

COVER

CAP, radiator, pressure type, for use with radiator, 352903R92

1шт.

12

351878R93

RADIATOR

ASSY, replaces 352903R92

1шт.

117534C1

CLIP, overflow hose

1шт.

13

351477R91

BRACKET

CHANNEL, radiator side LH

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

14

368671R11

GRILLE ASSY

GRILLE W/SCREEN, 368673R1, radiator

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 slt-truss-hd mach

4шт.

15

368673R1

SCREEN, radiator grille

1шт.

16

351033R1

PLATE

radiator hold-down

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

17

351032R1

GASKET

radiator

1шт.

18

351478R91

BRACKET

CHANNEL, radiator side RH

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

19

351036R1

CLIP, radiator overflow pipe, cub tractors w/serial no. 248124 and below

1шт.

20

4665D

GASKET

water outlet elbow

1шт.

21

373883R11

GRILLE

SIDE, radiator grille LH

1шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW, 10-24 x 1/2 c-z slt-rd-hd mach

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

22

373884R11

GRILLE

SIDE, radiator grille RH

1шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW, 10-24 x 1/2 c-z slt-rd-hd mach

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

23

369069R1

PLATE, cub lo-boy model symbol

2шт.

370786R1

FASTENER

tubular clip

4шт.

24

369068R1

DECAL

PLATE, cub model symbol

2шт.

370786R1

FASTENER

tubular clip

4шт.

25

369052R1

IDENTITY PLATE

PLATE, International name

2шт.

25

375526R1

PLATE, International name, for industrial tractors

2шт.

370786R1

FASTENER

tubular clip

10шт.

26

369046R1

PRODUCT GRAPHIC

PLATE, MCCormick Farmall name, order plate 369052R1

2шт.

26

375530R1

PLATE, MCCormick Farmall name, for industrial tractors, order plate, 375526R1

2шт.

370786R1

FASTENER

tubular clip

10шт.

27

354912R92

STRIPPER PACKAGE

PACKAGE, hood and fuel tank support service, cub tractors w/serial no. 224400 and below, cub lo-boy tractors w/serial no. 18700 and below

1шт.

27

387349R1

SUPPORT, hood and fuel tank, cub tractors w/serial nos 224401 to 239826, cub lo-boy tractors w/serial no. 18701 and above

1шт.

27

547146R2

SUPPORT, hood and fuel tank, cub tractors w/serial no. 239827 and above

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 znp p/hds mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 znd

4шт.

28

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting, fuel pipe coupling

2шт.

29

369992R11

TUBE

PIPE W/TWO NUTS, 29899D, fuel, cub tractors w/serial no. 248124 and below

1шт.

29

63499C91

PIPE W/TWO NUTS, 29899D, fuel, cub tractors w/serial no. 248125 and above

1шт.

30

251431R1

GASKET

water inlet elbow

1шт.

31

251430R2

PIPE

ELBOW, water inlet

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

32

274087R91

HOSE CLAMP,1.50/2.38 Type F Worm

CLAMP, radiator hose

2шт.

33

HOSE, 1-5/8 ID x 2-3/8 in. long, 1 ply radiator outlet, order 2-3/8 in. from bulk hose, 407005R1

1шт.

34

350888R1

FITTING

NIPPLE, radiator outlet

1шт.

35

140116C91

HOOD

AND FUEL TANK ASSY W/PROD GRAPH, tractors with vertical exhaust

1шт.

35

140115C91

HOOD

AND FUEL TANK ASSY W/PROD GRAPH, tractors w/underslung exhaust

1шт.

157767

SCREW, 5/16-18 x 5/8 c-z cr-rec truss-hd mach

4шт.

271713

5/8-11 x 3/4 c-z hex-hd cap

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

2шт.

36

392718R1

PRODUCT GRAPHIC

ORNAMENT, hood, cub tractors w/serial no. 248124 and below

1шт.

423324

SCREW,Hex L/Wshr Hd, #10-24 x 7/16"

W/INT-TOOTH LOCK WASHER, 10-24 x 7/8 hex-hd cap

2шт.

37

384978R1

SPACER, hood

2шт.

157767

SCREW, 5/16-18 x 5/8 c-z cr-rec truss-hd mach

4шт.

38

384983R11

SHEET

W/NUT, 363885R91, radiator grille RH

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

1шт.

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

10-24 x 3/8 c-z slt-rd-hd mach

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

39

384982R11

SHEET

W/NUT, 363885R91, radiator grille LH

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

1шт.

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

10-24 x 3/8 c-z slt-rd-hd mach

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

40

384979R91

GRILLE

ASSY, radiator

1шт.

157767

SCREW, 5/16-18 x 5/8 c-z cr-rec truss-hd mach

2шт.

41

384985R1

PLATE, grille emblem mounting

1шт.

147765

SCREW, 10-24 x 3/8 cr-rec-rd-hd mach

2шт.

42

384981R1

SCREEN

radiator grille

1шт.

381052R1

BOLT,Sl Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 slt-hex-washer hd cap

4шт.

43

2751844R1

PRODUCT GRAPHIC

IH emblem, optional with 2751846R1, cub tractors w/serial no. 248124 and below

1шт.

155097

SCREW, 10-24 x 5/16 cr-rec-rd-hd mach

2шт.

43

2751846R1

EMBLEM CASE/IH

PRODUCT GRAPHIC, IH emblem, optional with 2751844R1, cub tractors w/serial no. 248124 and below

1шт.

385130R1

SCREW, no. 10-16 x 9/16 thd-cutting

2шт.

43

61662C1

PRODUCT GRAPHIC

IH emblem, cub tractors w/serial no. 248125 and above

1шт.

115097

SCREW, 10-24 x 5/16 cr-rec-rd-hd

2шт.

2751849R1

PRODUCT GRAPHIC

MCCormick Farmall cub model symbol, cub tractors w/serial no., Serial Range: 222501-248124

2шт.

2751851R1

PRODUCT GRAPHIC

International cub model symbol, cub tractors w/serial no., Serial Range: 222501-248124

2шт.

2751850R1

PRODUCT GRAPHIC

International cub lo-boy model symbol, cub lo-boy tractors w/serial no. 17201 and above

2шт.

Выбрано товаров: 107
