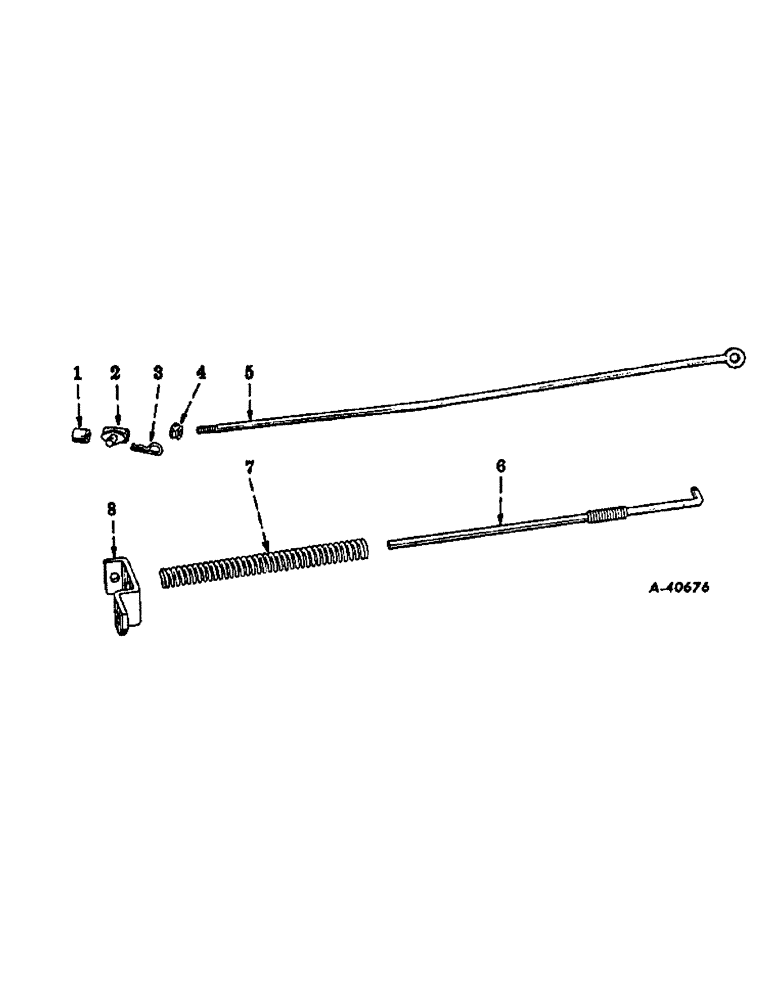

Запчасти Case IH INTERNATIONAL (09-03) - FRAME, FAST-HITCH, CUB TRACTORS, LIFT LINK AND HELPER SPRING CONNECTIONS (12) - FRAME

ATTACHMENT, fast-hitch 363655R92, for tractors equipped with touch control system, serial no. 185001 and above, composed of (1) bolt 17427R1, (2) bolt 17450R1, (6) bolt 17475R1, (1) nut 271500, (1) screw 179886, (1) fast hitch unit 520054R92 (NSS), (1) washer 103322, (1) washer 103323, (8) washer 103325

1шт.

1

520168R1

BUSHING, lift link

1шт.

2

520123R1

PIVOT

TRUNNION, lift link

1шт.

3

520175R1

CLIP

PIN, 3/16 quick-attachable cot.

1шт.

4

1431BX

COLLAR CLAMP

COLLAR W/SCREW, 110448, set

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2-13 x 3/4 sq-hd cup-pt set

1шт.

5

520143R11

LINK

W/NUT, 218443, lift

1шт.

218443

NUT

3/4-10 hex. jam

1шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

1шт.

Q3501

WASHER

25/32 x 1-1/8 x 16 ga

1шт.

6

520163R91

ROD ASSY, helper spring

1шт.

218446

NUT,Jam, 1 1/8"-7, G5

1-1/8-7 hex. jam

1шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

1шт.

7

520157R2

GUIDE, helper spring rod

1шт.

17427R1

BOLT, 7/16 x 14 x 1 hex-hd mach

1шт.

271500

SOCKET

7/16-14 hex.

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2-13 x 1-5/8 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.
