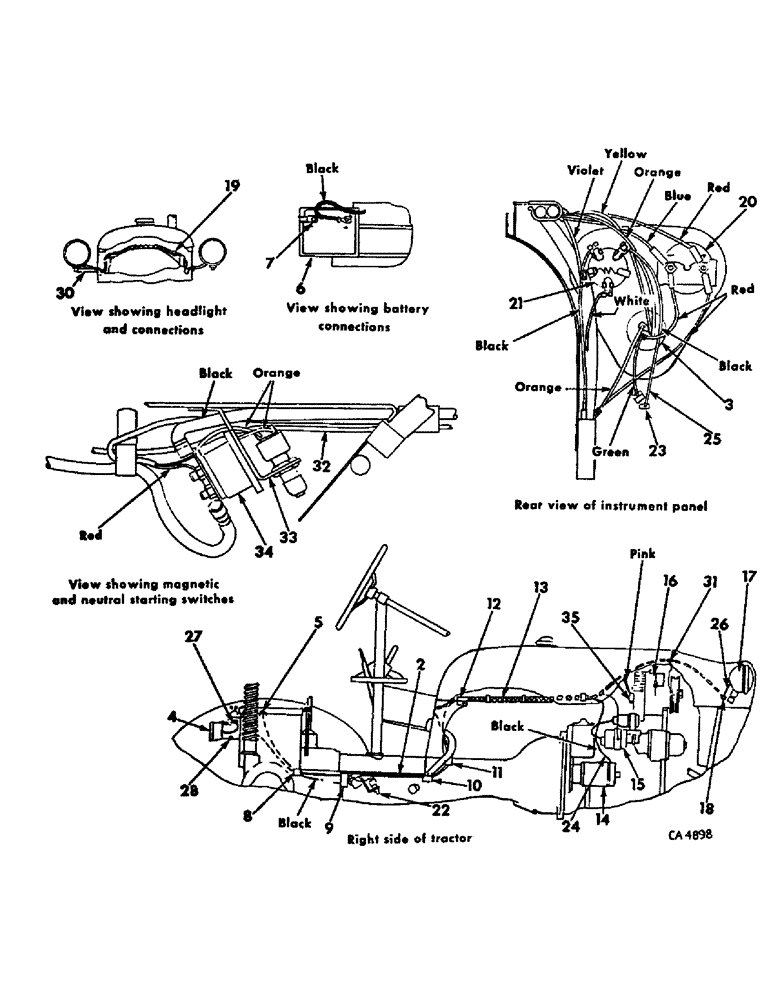

Запчасти Case IH INTERNATIONAL (08-38) - ELECTRICAL STARTING AND LIGHTING SYSTEM, 12 VOLT, TRACTORS W/ALTERNATOR GENERATOR (06) - ELECTRICAL

1

547143R1

CABLE

W/BOLT, 356062R91, boot, 364910R1, battery to magnetic switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

364910R1

BOOT

terminal

1шт.

2

387312R91

HARNESS

CABLE ASSY, rear light

1шт.

3

60736C2

SWITCH

ASSY, battery ignition key

1шт.

131313C1

KEY, IGNITION

KEY, switch

1шт.

365502R1

NUT

switch mounting

1шт.

375431R1

LOCK WASHER

switch mounting

1шт.

4

121846C91

LIGHT

ASSY, tail, replaces 376850R91, for components see list of parts under details of tail light

1шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

52118D

GROMMET

battery box

1шт.

6

IHPR20H

DRY BATTERY

12 volt

1шт.

7

629029R92

NEG BATTERY CABLE

STRAP W/BOLT, 356092R91, Serial Range: battery-ground

1шт.

120512HX

BOLT AND NUT,Sq Hd, 5/16" - 18 x 1 3/8", W/Hex Nut

BOLT ASSY, terminal

1шт.

8

371035R1

CLIP

cable, underneath platform

1шт.

9

371036R1

CLIP

third bolt from rear, underneath platform

1шт.

10

363500R1

CLIP

STRAP, cable wrapping, between pedal and clutch housing

1шт.

11

363504R1

CLIP, inside right side fuel tank support

1шт.

103088

NUT,#10-32

10-32 hex.

1шт.

100763

SCREW, 10-32 x 3/8 slt-rd-hd mach

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

12

371034R1

CLIP, cable harness, RH side, on inside edge of hood support

1шт.

13

107588R1

PIPE

HARNESS ASSY, cable

1шт.

14

1107327

MOTOR

ASSY, cranking, order 1109352, for components see list of parts under details of cranking motor

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

BATTERY IGNITION UNIT, refer to C-60 engine group 12

1шт.

16

ALTERNATOR ASSY, refer to alternator generator and connections

1шт.

17

376849R91

HEADLIGHT

LIGHT ASSY, head, only serviceable items are sealed beam unit, 373662R91 and connector, 530029R91, optional w/391005R91

2шт.

17

391005R91

HEADLIGHT

LIGHT ASSY, head, only serviceable items are sealed beam unit, 373662R91, retainer, 676078R1 and connector, 530029R91, optional w/376849R91

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

18

120302

GROMMET,3/8" ID x 27/32" x .188", Diag Cut

rubber no. 6, in hood

2шт.

19

362121R1

CLIP

head light cable harness

2шт.

109084

NUT,1/4"-20, G5

2шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 slt-rd-hd mach

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

536229R1

INDICATOR

ASSY, charge, replaces 360053R92

1шт.

21

376851R92

SWITCH

ASSY, lighting

1шт.

22

121629C1

IGNITION SWITCH

SWITCH ASSY, neutral starting, replaces 382728R91

1шт.

23

376852R91

HOUSING

ASSY, fuse

1шт.

9426333

FUSE,15 Amp, Type 3AG

cartridge type AGC 15

1шт.

24

547144R1

CABLE

ASSY, magnetic switch to cranking motor

1шт.

25

404401R1

CABLE PULLING GRIP

CABLE ASSY, fuse housing to lighting switch

1шт.

26

387311R1

ROD, CONNECTING

BODY, connector

2шт.

27

362121R1

CLIP

rear light cable

1шт.

28

366460R1

CABLE CLIP

CLIP, tail light cable

1шт.

29

45569D

SPACER

head light

2шт.

30

351341R1

BOLT

POST, head light

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

31

363660R1

CLIP

cable harness, on alternator bracket

1шт.

32

547145R1

HARNESS ASSY, neutral starting switch

1шт.

33

547147R1

BRACKET

neutral starting switch

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 1/2 znd crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

34

121613C1

IGNITION SWITCH

SWITCH ASSY, magnetic, replaces 545756R2

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga C-Z (or as required)

1шт.

180016

SPRING

SCREW, 1/4-20 x 1/2 znd hex-hd cap

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

35

107558C1

RESISTOR

25 OHM, replaces 534784R1

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.
