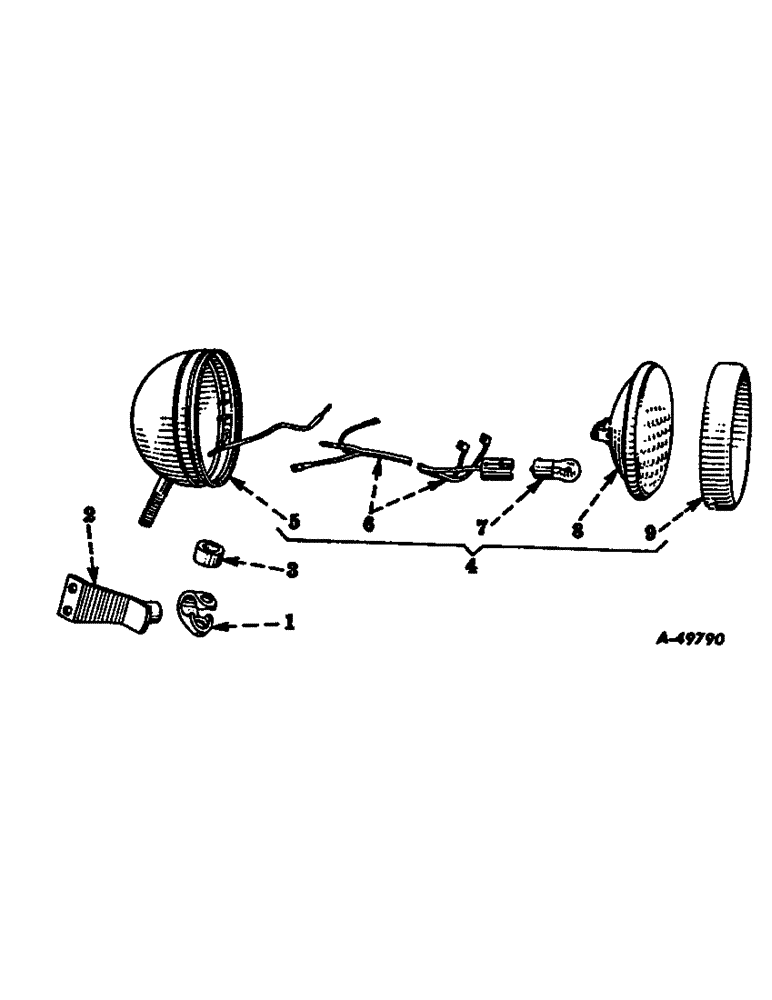

Запчасти Case IH INTERNATIONAL (08-21) - ELECTRICAL, COMBINATION REAR LIGHT AND TAIL LIGHT, SEALED BEAM, 6 VOLT (06) - ELECTRICAL

1

350920R1

CLAMP

rear light

1шт.

2

352121R21

BRACKET

ASSY, rear light

1шт.

120376

NUT,5/16"-18, G5

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

374213R91

LAMP

LIGHT ASSY, combination rear and tail, sealed beam, order light assy, 381184R91 and cable, 381185R91

1шт.

3

381184R91

LIGHT ASSY, combination rear and tail, sealed beam

1шт.

381185R91

CABLE

ASSY, light

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

BODY, rear light, not serviced separately

1шт.

5

WIRE W/SOCKET ASSY, not serviced separately

1шт.

6

454493

LAMP, no. 209, 6 volt #209, Type C-6, 6V

1шт.

7

371458R91

SEALED BEAM UNIT

UNIT, sealed beam

1шт.

8

371450R91

BEZEL

MOULDING, rear light, used only with light, 374213R91

1шт.

53526D

SCREW

moulding

1шт.

375376R1

RING

GASKET, sealed beam unit, used only if unit is loose in light body

1шт.
