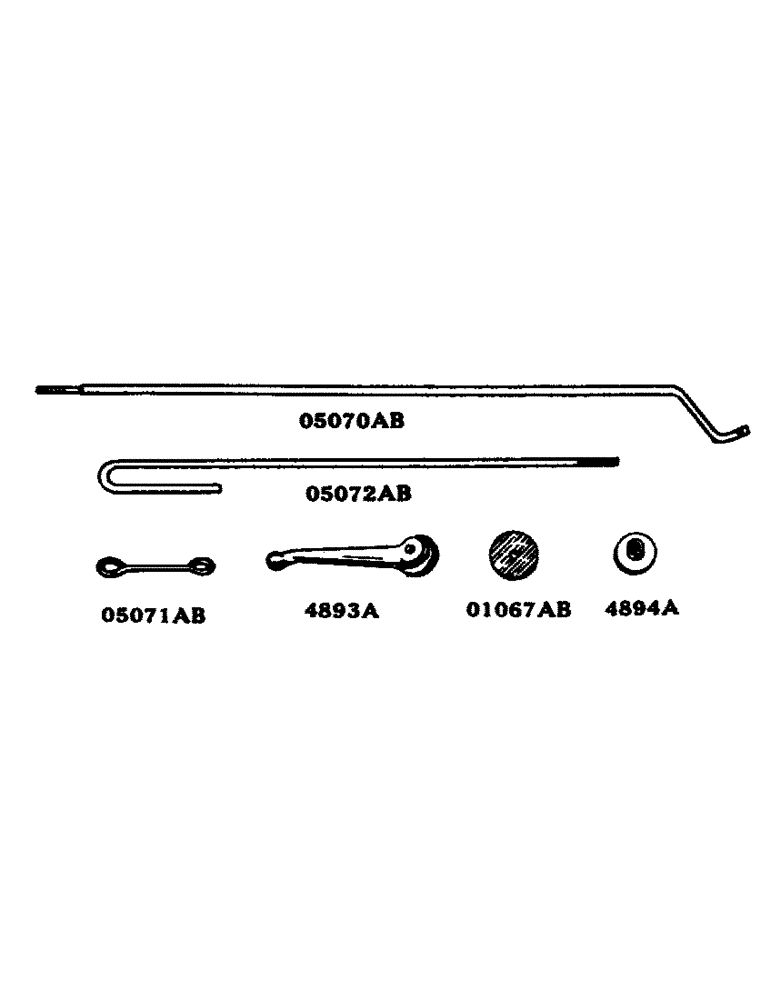

Запчасти Case IH DV-SERIES (027) - THROTTLE CONTROL, D, DC, DH, DO, DV (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
a4655a
A4655A
LEVER, throttle hand. Prior to tractor no. 4403649. See O5560AB (DO, DV)
1шт.
nss
NSS
NOT SOLD SEPARAT
BOLT, 5/16" x 2" machine, with hex nut (DO, DV)
1шт.
a4655a
A4655A
LEVER, throttle hand. Tractor no. 4402685 to 4403649. See 4893A - O5560AB (D)
1шт.
nss
NSS
NOT SOLD SEPARAT
BOLT, 5/16" x 2" machine, with hex nut (D)
1шт.
4893a
4893A
LEVER, throttle hand. Prior to tractor no. 4402685. See A4655A- O5560AB (D)
1шт.
4893a
4893A
LEVER, throttle hand. Prior to tractor no. 4403649. See O5560AB (DC, DH)
1шт.
4894a
4894A
COLLAR, throttle lever control rod. Prior to tractor no. 4402685 (D)
1шт.
nss
NSS
NOT SOLD SEPARAT
PIN, 5/32" x 7/8" type 1, taper groove (D)
1шт.
4894a
4894A
COLLAR, throttle lever control rod. Prior to tractor no. 4403649 (DC, DH)
1шт.
nss
NSS
NOT SOLD SEPARAT
PIN, 5/32" x 7/8" type 1, taper groove (DC, DH)
1шт.
o1066ab
O1066AB
SPRING, throttle hand lever. Prior to tractor no. 4403649. See O5564AB
1шт.
o1607ab
O1607AB
DISC, hand throttle friction. Prior to tractor no. 4403649
1шт.
o1853ab
O1853AB
BRACKET, throttle hand lever. Prior to tractor no. 4403649 (DO, DV)
1шт.
o1853ab
O1853AB
BRACKET, throttle hand lever. Tractor no. 4402685 to 4403649 (D)
1шт.
o4824ab
O4824AB
ROD, hand throttle. Prior to tractor no. 4403649. See O5563AB (DO, DV)
1шт.
nss
NSS
NOT SOLD SEPARAT
NUT, 3/8" hexagon (DO, DV)
2шт.
nss
NSS
NOT SOLD SEPARAT
PIN, 1/8" x 3/4" cotter (DO, DV)
1шт.
o4824ab
O4824AB
ROD, hand throttle. Tractor no. 4402685 to 4403649. See O5563AB or O5072AB (D)
1шт.
nss
NSS
NOT SOLD SEPARAT
NUT, 3/8" hexagon (D)
2шт.
nss
NSS
NOT SOLD SEPARAT
PIN, 1/8" x 3/4" cotter (D)
1шт.
o4825ab
O4825AB
SUPPORT, hand throttle rod, rear
1шт.
o5070ab
O5070AB
ROD, throttle hand lever control. Use O5070AB1 with O5147AB
1шт.
o5070ab1
O5070AB1
ROD, throttle lever control. Prior to tractor no. 4402685 (D)
1шт.
nss
NSS
NOT SOLD SEPARAT
KEY, no. 2 Woodruff (D)
1шт.
nss
NSS
NOT SOLD SEPARAT
NUT, 5/16" hexagon (D)
2шт.
o5070ab1
O5070AB1
ROD, throttle lever control. Prior to tractor no. 4403649 (DC, DH)
1шт.
nss
NSS
NOT SOLD SEPARAT
KEY, no. 2 Woodruff (DC, DH)
1шт.
nss
NSS
NOT SOLD SEPARAT
NUT, 5/16" hexagon (DC, DH)
2шт.
o5071ab
O5071AB
LINK, throttle lever control rod. Prior to tractor no. 4402685 (D)
1шт.
o5071ab
O5071AB
LINK, throttle lever control rod. Prior to tractor no. 4403649 (DC, DH)
1шт.
o5072ab
O5072AB
ROD, throttle control. Prior to tractor no. 4402685. See O4824AB or O5563AB (D)
1шт.
nss
NSS
NOT SOLD SEPARAT
NUT, 3/8" hexagon (D)
2шт.
o5072ab
O5072AB
ROD, throttle control. Prior to tractor no. 4403649. See O5563AB (DC, DH)
1шт.
nss
NSS
NOT SOLD SEPARAT
NUT, 3/8" hexagon (DC, DH)
2шт.
o5147ab
O5147AB
CRANK, throttle lever control rod. Prior to tractor no. 4402685 (D)
1шт.
nss
NSS
NOT SOLD SEPARAT
PIN, 1/8" x 3/4" cotter (D)
1шт.
nss
NSS
NOT SOLD SEPARAT
PIN, 5/32" x 5/8" type 1, full length taper groove (D)
1шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 3/8" plain (D)
1шт.
o5147ab
O5147AB
CRANK, throttle lever control rod. Prior to tractor no. 4403649 (DC, DH)
1шт.
nss
NSS
NOT SOLD SEPARAT
PIN, 1/8" x 3/4" cotter (DC, DH)
1шт.
nss
NSS
NOT SOLD SEPARAT
PIN, 5/32" x 5/8" type 1, full length taper groove (DC, DH)
1шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 3/8" plain (DC, DH)
1шт.
o5560ab
O5560AB
LEVER, throttle control hand. Tractor no. 4403649 and after. See 4893A - A4655A
1шт.
nss
NSS
NOT SOLD SEPARAT
SCREW, 3/8" x 1-1/4" hexagon head cap, N.C. thread
1шт.
nss
NSS
NOT SOLD SEPARAT
NUT, 3/8" hexagon, N.C. thread
2шт.
o5563ab
O5563AB
ROD, throttle. Tractor no. 4403649 and after. See O4824AB or O5072AB
1шт.
nss
NSS
NOT SOLD SEPARAT
NUT, 3/8" hexagon, N.C. thread
2шт.
nss
NSS
NOT SOLD SEPARAT
PIN, 1/8" x 3/4" cotter
1шт.
o5564ab
O5564AB
SPRING, throttle hand lever. Tractor no. 4403649 and after. See O1066AB
1шт.
2300aa
2300AA
QUADRANT, throttle control, with support. Tractor no. 4403649 and after
1шт.
Выбрано товаров: 50
