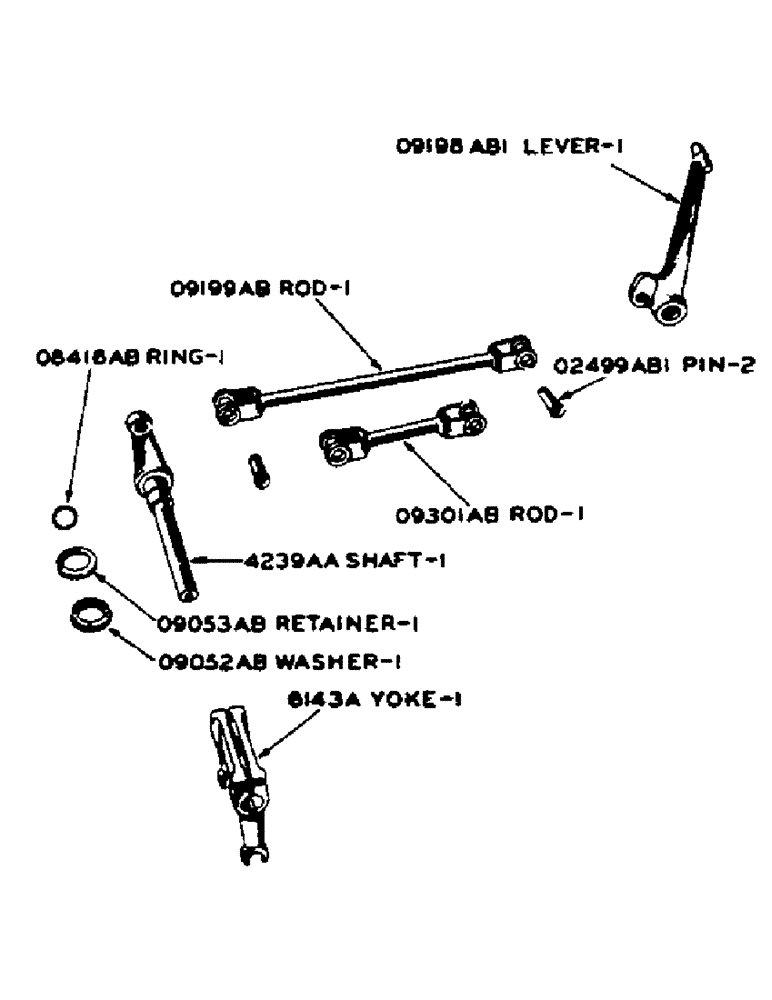

Запчасти Case IH DV-SERIES (144) - PTO CLUTCH THROWOUT, D, DC-3, DC-4, DO, DV (06) - POWER TRAIN

6143A

X

YOKE - PTO clutch throwout

1шт.

5/16" x 1-1/4" N.C. hex hd. cap screw with lockwasher

2шт.

O1167AB

X

WASHER - clutch hand lever mounting pin (Used with 4209AA and 4245AA seat channel brackets) (See O9639AB)

1шт.

O2499AB1

X

PIN - PTO clutch hand control rod end

2шт.

1/8" x 1" cotter pin

2шт.

O6044AB

X

SNAP RING - clutch hand lever mounting pin (Used with 4209AA and 4245AA seat channel brackets) (See O9639AB)

1шт.

O8416AB

X

"O" RING - PTO clutch throwout shaft

1шт.

O9052AB

X

WASHER - felt, PTO clutch throwout shaft

1шт.

O9053AB

X

RETAINER - PTO clutch throwout shaft felt washer

1шт.

O9198AB1

LEVER - hand, PTO clutch

1шт.

1/8" - 90 degree Lincoln fitting no. 5400

1шт.

O9199AB

ROD - PTO clutch hand control (D, DC-3, DC-4)

1шт.

O9301AB

ROD - PTO clutch hand control (DO, DV)

1шт.

O9639AB

X

"E" RING - retaining, for clutch hand lever mounting pin on 4433AA and A4245AA seat channel brackets (See O1167AB and O6044AB)

1шт.

4239AA

SHAFT AND ARM - clutch throwout

1шт.

No. 9 Woodruff key

2шт.
