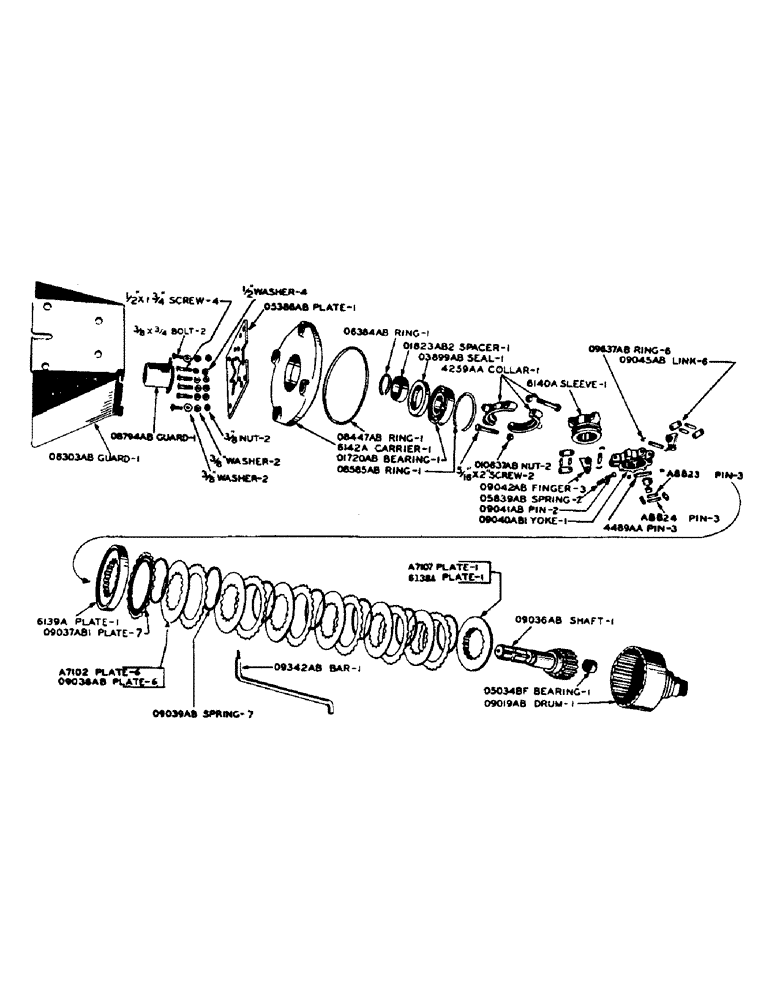

Запчасти Case IH DV-SERIES (143) - POWER TAKE OFF CLUTCH AND STUB SHAFT, D, DC-3, DC-4, DO, DV (06) - POWER TRAIN

A7102

CLUTCH DRIVING PLATE

PLATE - PTO clutch driven (Steel, ground finish surface) (Used with A7107 backing plate) (See O9038AB) (See note)

6шт.

A7107

PLATE

- PTO clutch backing (Used with A7102 driven plate) (See 6138A) (See note)

1шт.

A8823

PIN,6.29mm OD x 26.99mm L

- lever link, upper (Short)

3шт.

3/32" x 1/2" cotter pin

3шт.

A8824

PIN

- lever link, lower (Long)

3шт.

3/32" x 1/2" cotter pin

3шт.

6138A

PLATE - PTO clutch backing (Used with O9038AB driven plate) (See A7107) (See note)

1шт.

6139A

X

PLATE - PTO clutch pressure

1шт.

6140A

X

SLEEVE - PTO clutch sliding

1шт.

6141A

X

COLLAR - PTO clutch throwout (Use 4259AA)

1шт.

6142A

CARRIER - PTO rear bearing

1шт.

O7120AB

BEARING - PTO shaft, rear (New Departure no. 1207)

1шт.

O1823AB2

X

SPACER - PTO stub shaft

1шт.

O3899AB

X

OIL SEAL - stub shaft

1шт.

O5386AB

PLATE - mounting, PTO guard

1шт.

1/2" x 1-3/4" N.C. hex hd. cap screw with lockwasher

4шт.

O5839AB

X

SPRING - PTO clutch adjusting lock pin

2шт.

O6384AB

SNAP RING - PTO stub shaft

1шт.

O8303AB

X

GUARD - PTO

1шт.

3/8" x 1" carr. bolt with hex nut

2шт.

3/8" Shakeproof lockwasher no. 4020-26

2шт.

O8447AB

X

"O" RING - PTO rear bearing carrier

1шт.

O8585AB

X

SNAP RING - stub shaft rear bearing carrier

1шт.

O8749AB

GUARD - tubular, PTO shaft

1шт.

3/8" x 3/4" N.F. hex hd. cap screw with hex nut

2шт.

3/8" Shakeproof lockwasher no. 4020-26

2шт.

O9019AB

DRUM - PTO clutch

1шт.

O9036AB

X

SHAFT - PTO stub

1шт.

O9037AB

X

PLATE - PTO clutch drive (Use O9037AB1)

1шт.

O9037AB1

X

PLATE - PTO clutch drive (Bronze with circular corrugations) (See note)

7шт.

O9038AB

X

PLATE - PTO clutch driven (Steel, unfinished surface) (Used with 6138A backing plate) (See A7102) (See note)

6шт.

O9039AB

SPRING

- PTO clutch drive plate separator

7шт.

O9040AB1

X

YOKE - PTO clutch adjusting

1шт.

O9041AB

X

PIN - PTO clutch adjusting lock

2шт.

O9042AB

X

FINGER - PTO clutch

3шт.

O9043AB

X

PIN - (Use 4489AA)

1шт.

O9044AB

RING, SNAP

RING - retaining, for O9043AB finger pin (See O9637AB)

6шт.

O9045AB

LINK - PTO clutch lever

6шт.

O9342AB

BAR - clutch adjusting

1шт.

O9637AB

X

"E" RING - retaining, for 4489AA clutch finger pin (See O9044AB)

6шт.

O9914AB

DRIVER - for installing O5034BF needle bearing in PTO stub shaft (See 4550AA)

1шт.

O9915AB

JAW - 4550AA needle bearing puller

2шт.

O10837AB

STOP NUT - elastic, 5/16" - 24 thread, for cap screw for 4259AA collar

2шт.

O5034BF

X

BEARING - PTO pilot (Torrington no. BH1616-OH)

1шт.

4259AA

X

COLLAR - PTO clutch throwout, complete (Consists of 2 - 6141A collars, 2 - 5/16" x 2" N.F. hex hd. cap screws and 2 - O10837AB stop nuts)

1шт.

4489AA

X

PIN - PTO clutch finger, with 2 - O9637AB "E" rings

3шт.

4550AA

PULLER - for removing O5034BF needle bearing from PTO stub shaft (For tractors equipped with constant PTO) (Same puller as 3913AA except O9915AB jaws are used)

1шт.
