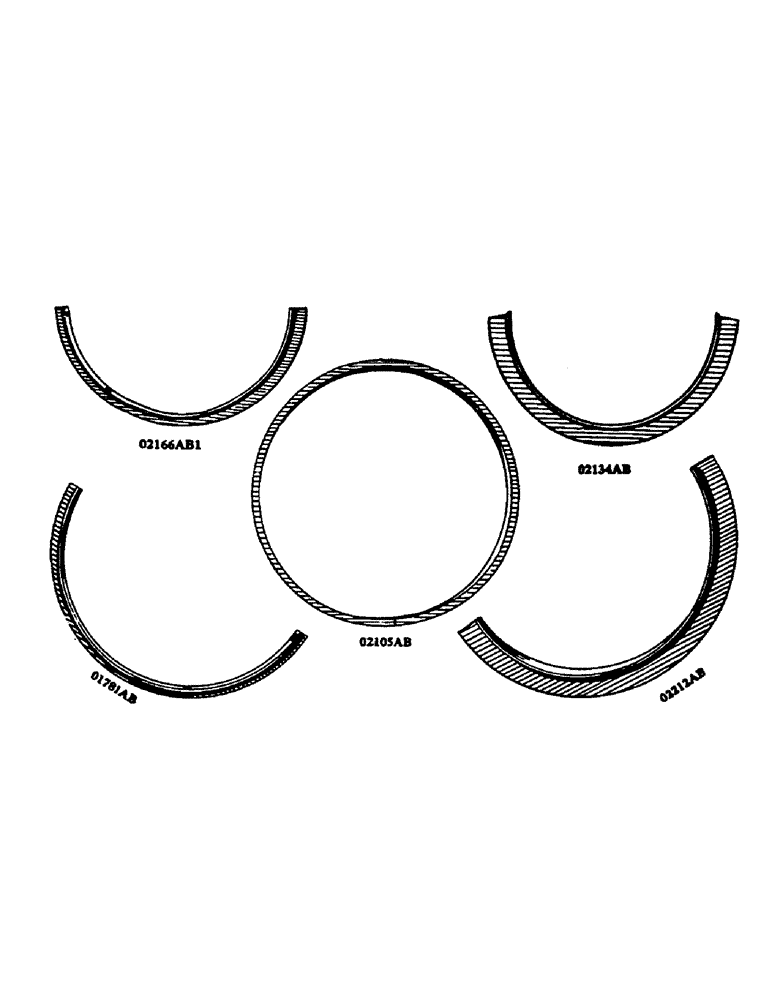

Запчасти Case IH DV-SERIES (127) - SKID RINGS AND GUIDE RINGS, FOR STEEL FRONT WHEELS, D, DC, DO (06) - POWER TRAIN

O1781AB

RING - front wheel skid, 1-1/2" high (Half ring, 2 required per wheel) (See 466AA) (D, DC)

4шт.

BOLT - 1/2" x 1-1/4" machine, with hex nut (D, DC)

16шт.

WASHER - 1/2" std. lock (D, DC)

16шт.

O2105AB

RING - front wheel guide (Special 2" wide) (See 143AA) (D)

2шт.

BOLT - 1/2" x 1-3/4" no. 7 key head plow (D)

16шт.

WASHER - 1/2" standard lock (D)

16шт.

NUT - 1/2" hex, N.C. thread (D)

16шт.

O2134AB

RING - front wheel skid, 3" high (Half ring, 2 required per wheel) (See 175AA) (DO)

4шт.

BOLT - 1/2" x 1-3/4" machine, with hex nut (DO)

16шт.

WASHER - 1/2" std. lock (DO)

16шт.

O2166AB1

RING - front wheel skid, 1-1/2" high (Half ring, 2 required per wheel) (See 463AA) (DC)

4шт.

BOLT - 1/2" x 1-1/2" machine, with hex nut (DC)

16шт.

WASHER - 1/2" std. lock (DC)

16шт.

O2212AB

RING - front wheel skid, special - 3" high (Half ring, 2 required per wheel) (See 194AA) (D)

4шт.

BOLT - 1/2" x 1-1/4" machine, with hex nut (D)

16шт.

WASHER - 1/2" std. lock (D)

16шт.

143AA

RINGS - set of front wheel guide, 2" wide. Set consists of 2-O2105AB rings, 16-1/2" x 1-3/4" no. 7 key head plow bolts with hex nuts and lockwashers. (Machinery account) (D)

1шт.

175AA

RINGS - set of front wheel skid, 3" high. Set consists of 4-O2134AB rings, 16-1/2" x 1-3/4" machine bolts with hex nuts and lockwashers (Machinery account) (DO)

1шт.

194AA

RINGS - set of front wheel skid, special - 3" high. Set consists of: 4-O2212AB rings, 16-1/2" x 1-1/4" machine bolts with hex nuts and lockwashers (Machinery account) (D)

1шт.

463AA

RINGS - set of front wheel skid, 1-1/2" high. Set consists of 4-O2166AB1 rings, 16-1/2" x 1-1/2" machine bolts with hex nuts and lockwashers (Machinery account) (DC)

1шт.

466AA

RINGS - set of front wheel skid, 1-1/2" high. Set consists of 4-O1781AB rings, 16-1/2" x 1-1/4" machine bolts with hex nuts and lockwashers (Machinery account) (D, DC)

1шт.
