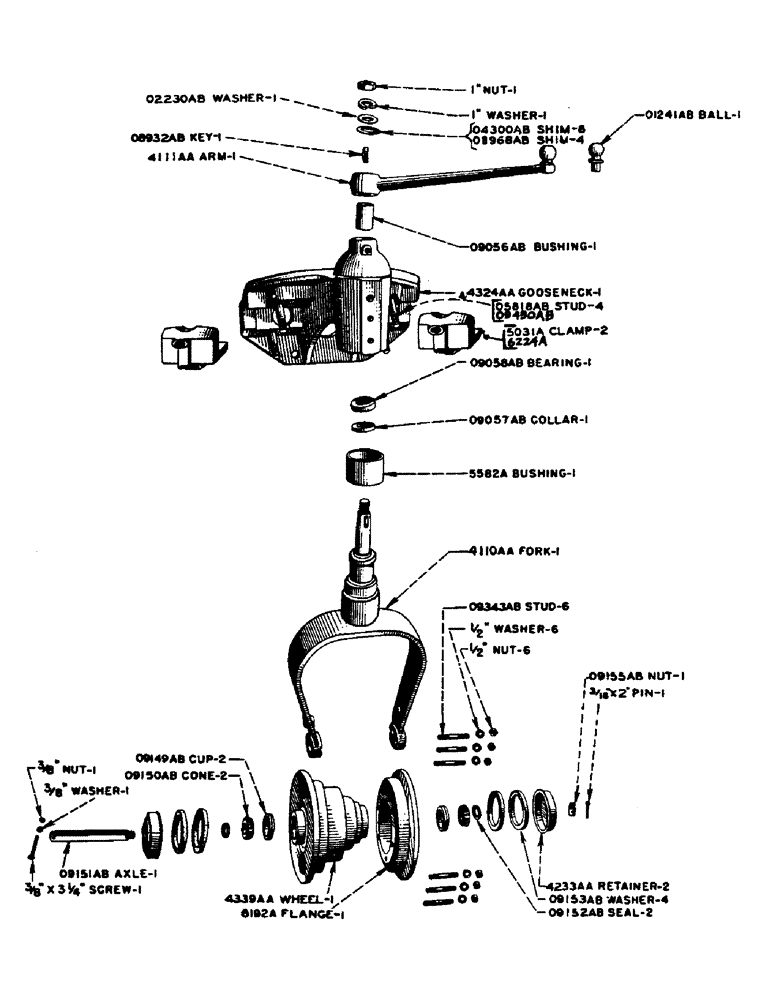

Запчасти Case IH DV-SERIES (112) - SINGLE FRONT WHEEL FORK AND SPINDLE, FOR "DC" TRACTOR (06) - POWER TRAIN

5031A

CLAMP - for 6146A gooseneck, using 3/4" studs (See 6224A)

2шт.

5582A

BUSHING - gooseneck, lower

1шт.

6145A

FORK - front wheel (Use 4110AA)

1шт.

6146A

GOOSENECK - (Use A4324AA)

1шт.

A6146A

GOOSENECK - (Use A4324AA)

1шт.

6147A

ARM - steering spindle (Use 4111AA)

1шт.

6155A

ARM - steering spindle (Use 4132AA)

1шт.

6224A

CLAMP - for A6146A gooseneck, using 7/8" studs (See 5031A)

2шт.

O1241AB

BALL - steering arm

1шт.

O2230AB

WASHER - fork spindle, upper

1шт.

O4300AB

SHIM - steering spindle (.0179)

8шт.

O5818AB

X

STUD - for 5031A clamp (See O9490AB)

4шт.

3/4" hex nut, light, N.F. thrd.

4шт.

3/4" std. lockwasher

4шт.

O8932AB

KEY - no. 25 Woodruff, for front steering arm (4111AA)

1шт.

O8968AB

SHIM - steering spindle (.005)

4шт.

O9056AB

X

BUSHING - gooseneck, upper

1шт.

O9057AB

COLLAR - fork spindle bearing

1шт.

O9058AB

X

BEARING - thrust, fork spindle (Timken no. T-199)

1шт.

O9150AB

X

CONE - front wheel bearing (Timken no. 25878)

2шт.

O9151AB

AXLE - front wheel

1шт.

3/16" x 2" cotter pin

1шт.

3/8" x 3-1/4" hex hd. cap screw, N.F. thrd.

1шт.

3/8" hex nut, light, N.F. thrd.

1шт.

3/8" std. lockwasher

1шт.

O9152AB

SEAL - axle shaft

2шт.

O9153AB

X

WASHER - felt, front wheel hub

4шт.

O9155AB

NUT - axle shaft

1шт.

O9490AB

STUD - for 6224A clamp (See O5818AB)

4шт.

7/8" light nut, N.F. hex

4шт.

7/8" std. lockwasher

4шт.

1706AA

BRACKET - starting crank, and guide

1шт.

1/2" x 1" N.C. hex hd. cap screw, with lockwasher

1шт.

4110AA

FORK - with spindle

1шт.

1" hex jam nut, light, N.F. thrd.

1шт.

1" std. lockwasher

1шт.

4111AA

ARM - steering spindle, with ball

1шт.

4132AA

ARM - steering spindle, with ball (Must be used when 1951 single front wheel attach. is installed on 1952 tractors) (See 4111AA)

1шт.

4324AA

GOOSENECK - (Use A4324AA)

1шт.

A4324AA

GOOSENECK - complete (Consists of gooseneck with 1 - 4574AA, 1 - 5582A, 2 - 6224A, 1 - O9056AB and 4 - O9490AB studs with nuts and lockwashers)

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.

5/8" x 3/4" hex hd. cap screw, N.C. thrd.

1шт.

1/2" x 1/2" hex hd. cap screw, N.C. thrd. (Used with front end weights)

1шт.

4574AA

LOCK SCREW - gooseneck lower bushing, with 5/16" Lincoln fitting no. 5031 (Tractor no. 8023583 and after)

1шт.

1/2" N.C. hex jam nut

1шт.

6158A

WHEEL - (Use 4339AA), single front, for 9.00 x 10 tires, DC tractor

1шт.

6192A

FLANGE - front wheel, single, for 9.00 x 10 tires, DC tractors

1шт.

1/8" str. Lincoln fitting no. 5000, single front wheel for 9.00 x 10 tires, DC tractors

1шт.

O9149AB

X

CUP - inner and outer bearing (Timken no. 25820)single front wheel for 9.00 x 10 tires, DC tractors

2шт.

O9343AB

STUD - front wheel, single, for 9.00 x 10 tires, DC tractors

6шт.

1/2" hex nut, light, N.F. thrd., single front wheel for 9.00 x 10 tires, DC tractors

6шт.

1/2" std. lockwasher, single front wheel for 9.00 x 10 tires, DC tractors

6шт.

4233AA

RETAINER - felt, with lug, single front wheel for 9.00 x 10 tires, DC tractors

2шт.

4339AA

WHEEl - with 2 - O9149AB cups, 6 - O9343AB studs and 1-1/8" no. 5000 str. Lincoln fitting, single front for 9.00 x 10 tires, DC tractor

1шт.
