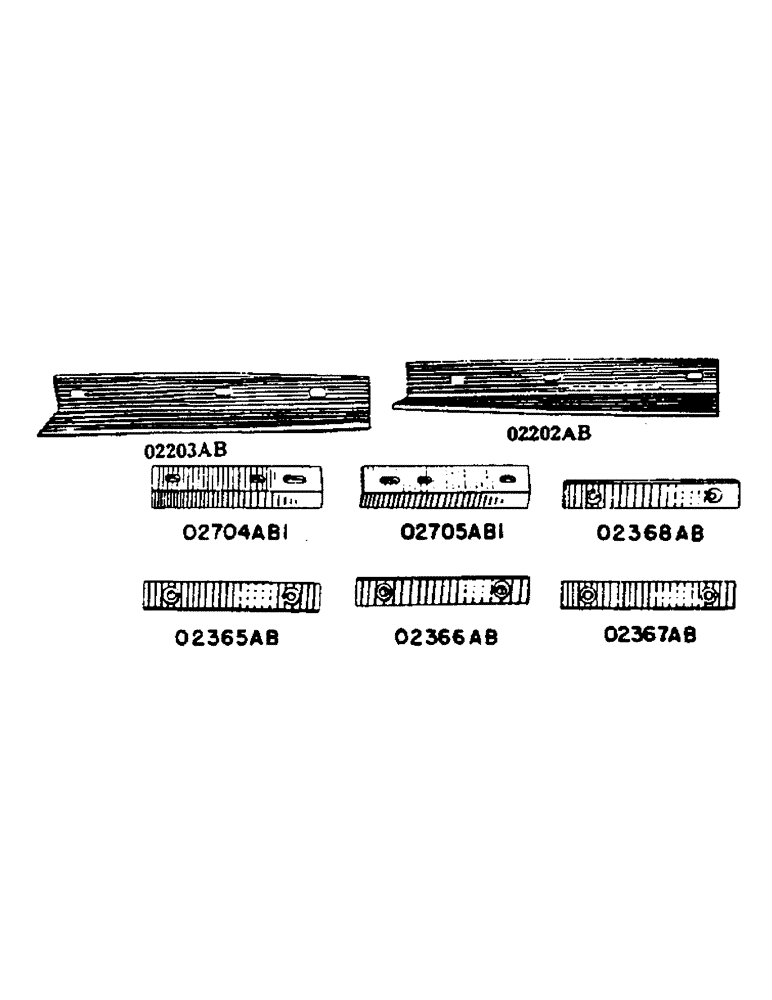

Запчасти Case IH DV-SERIES (097) - REAR WHEEL GROUTERS, MODEL "D" TRACTOR (06) - POWER TRAIN

O2202AB

GROUTER - angle, R.H. (3-1/2" x 20") (See 215AA)

12шт.

BOLT - 5/8" x 1-1/2" mach., with hex nut

24шт.

WASHER - 5/8" std. lock

24шт.

O2203AB

GROUTER - angle, L.H. (3-1/2" x 20") (See 215AA)

12шт.

BOLT - 5/8" x 1-1/2" mach., with hex nut

24шт.

WASHER - 5/8" std. lock

24шт.

O2365AB

GROUTER - road, R.H. (1" x 13-3/16") (See 309AA)

24шт.

BOLT - 5/8" x 2" no. 7 key hd. plow, with hex nut

48шт.

WASHER - 5/8" std. lock

48шт.

O2366AB

GROUTER - road, L.H. (1" x 13-3/16") (See 309AA)

24шт.

BOLT - 5/8" x 2" no. 7 key hd. plow, with hex nut

48шт.

WASHER - 5/8" std. lock

48шт.

O2367AB

GROUTER - road, R.H. (1" x 13-29/32") (See 310AA)

15шт.

BOLT - 5/8" x 2" no. 7 key hd. plow, with hex nut

30шт.

WASHER - 5/8" std. lock

30шт.

O2368AB

GROUTER - road, L.H. (1" x 13-29/32") (See 310AA)

15шт.

BOLT - 5/8" x 2" no. 7 key hd. plow, with hex nut

30шт.

WASHER - 5/8" std. lock

30шт.

O2704AB1

GROUTER - angle, R.H. (2" x 12-1/2") (See A413AA)

15шт.

BOLT - 5/8" x 1-1/2" mach., with hex nut

30шт.

WASHER - 5/8" std. lock

30шт.

O2705AB1

GROUTER - angle, L.H. (2" x 12-1/2") (See A413AA)

15шт.

BOLT - 5/8" x 1-1/2" mach., with hex nut

30шт.

WASHER - 5/8" std. lock

30шт.

215AA

GROUTERS - set of angle iron (3-1/2" x 20") Consists of: 12 - O2202AB, 12-O2203AB and 48-5/8" x 1-1/2" mach. bolts with hex nuts and washers (Machy. acct.)

1шт.

309AA

GROUTERS - set of road (1" x 13-3/16") Consists of: 24-O2365AB, 24-O2366AB and 96-5/8" x 2" no. 7 key hd. plow bolts with nuts and washers (Machy. acct.)

1шт.

310AA

GROUTERS - set of road (1" x 13-29/32") Consists of: 15-O2367AB, 15-O2368AB and 60-5/8" x 2" no. 7 key hd. plow bolts with nuts and washers (Machy. acct.)

1шт.

A413AA

GROUTER - set of angle iron (2" x 12-1/2") Consists of: 15 - O2704AB1, 15-O2705AB1 and 60-5/8" x 1-1/2" mach. bolts with nuts and lockwashers (Machy. acct.)

1шт.
