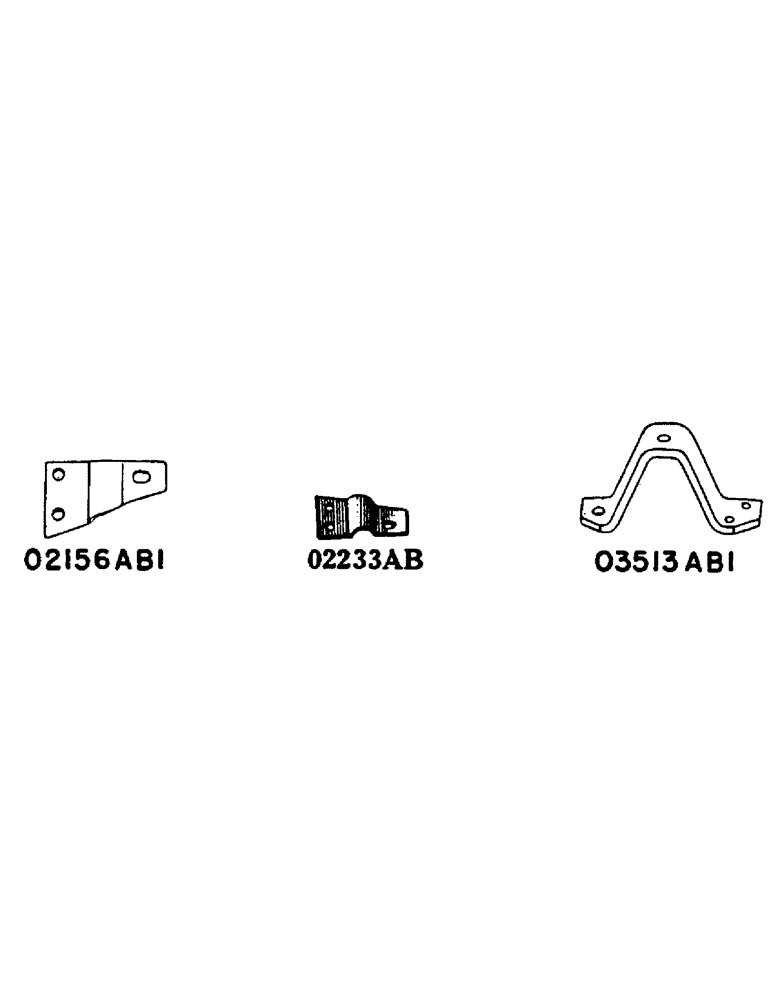

Запчасти Case IH DV-SERIES (094) - EXTENSION RIMS FOR REAR WHEELS, EXTENSION RIMS FOR NARROW RIM REAR WHEEL, MODEL " DC" TRACTOR (06) - POWER TRAIN

O2847AB

RIM - extension, for narrow rim rear wheels

2шт.

O3513AB1

BRACKET - extension rim

12шт.

BOLT - 1/2" x 1-1/2" mach., with hex nut

24шт.

BOLT - 5/8" x 1-3/4" mach., with hex nut

24шт.

WASHER - 1/2" std. lock

24шт.

WASHER - 5/8" std. lock

24шт.

1233AA

RIMS - set of extension, for narrow rim rear wheels (Consists of 2 - O2847AB rims, 12 - O3513AB1 brackets, 24-1/2" x 1-1/2" machine bolts with hex nuts, 24-5/8" x 1-3/4" mach. bolts with hex nuts, 24-1/2" lockwasher and 24-5/8" lockwashers) (Machy. acct.)

1шт.

O2232AB

RIM - 6" x 48" extension

2шт.

O2233AB

STRAP - tie, for extension rim

12шт.

BOLT - 5/8" x 1-1/2" mach., with hex nut

24шт.

BOLT - 5/8" x 1-3/4" mach., with hex nut

12шт.

WASHER - 5/8" std. lock

36шт.

252AA

RIMS - set of 6" x 48" extension for solid type rim wheels (Consists of: 2 - O2232AB rims, 12-O2233AB straps, 24-5/8" x 1-1/2" mach. bolts with hex nuts, 12-5/8" x 1-3/4" mach. bolts with hex nuts and 36-5/8" lockwashers) (Machy. acct.)

1шт.

O1989AB

RIM - 6" x 42" extension

2шт.

O2156AB1

STRAP - tie, for extension rim

12шт.

BOLT - 5/8" x 1-1/2" machine, with hex nut

36шт.

WASHER - 5/8" std. lock

36шт.

72AA

RIMS - set of 6" x 42" extension, for rear wheels with lugs (Consists of: 2-O1989AB rims, 12-O2156AB1 tie straps, 36-5/8" x 1-1/2" mach. bolts with hex nuts and lockwashers) (Machy. acct.)

1шт.

O1989AB

RIM - 6" x 42" extension

2шт.

BOLT - 5/8" x 1-1/2" mach., with hex nut

24шт.

WASHER - 5/8" std. lock

24шт.

216AA

RIMS - set of 6" x 42" extension, for rear wheels with grouters, (Consists of: 2-O1989AB rims, 24-5/8" x 1-1/2" mach. bolts with hex nuts and lockwashers) (Machy. acct.)

1шт.
