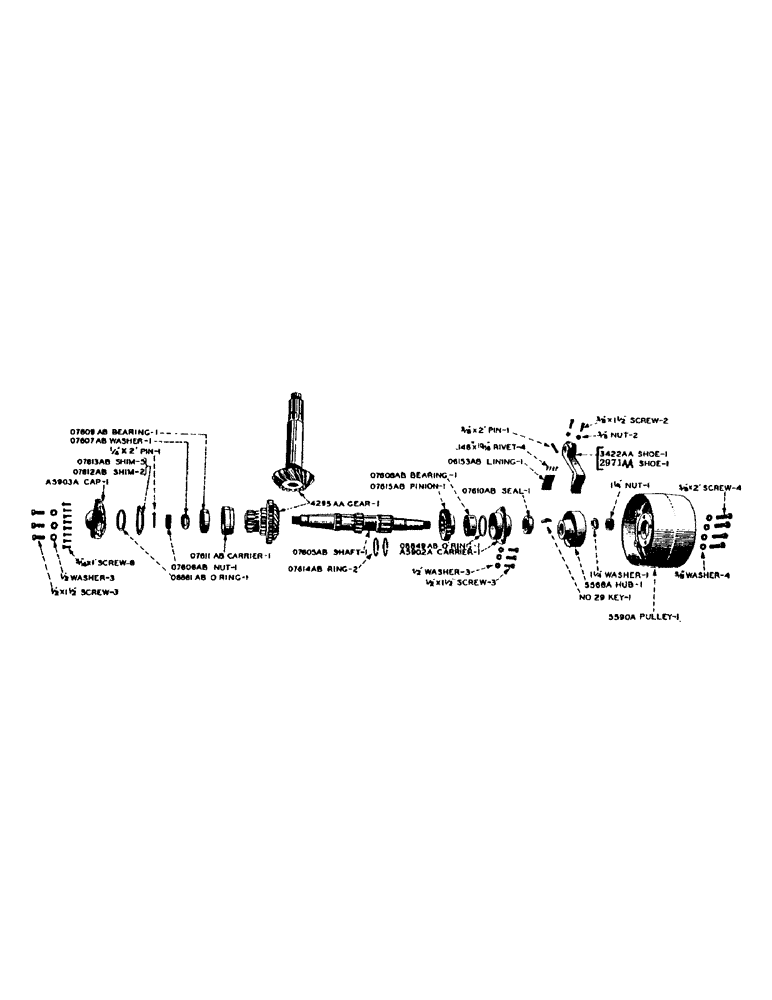

Запчасти Case IH DV-SERIES (070) - BELT PULLEY SHAFT, D, DC3, DC4, DO, DV (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
5568A
HUB - belt pulley and brake drum (D, DC4, DO, DV)
1шт.
5590A
PULLEY - belt, less hub (12-1/4" dia. x 7-1/4" face) (See 5912A) (D, DC4, DO, DV)
1шт.
SCREW - 5/8" x 2" hex hd. cap, N.C. thread (D, DC4, DO, DV)
4шт.
WASHER - 5/8" std. lock (D, DC4, DO, DV)
4шт.
5809A
SHOE - (Use 2971AA)
1шт.
A5902A
CARRIER - belt pulley shaft bearing, R.H.
1шт.
SCREW - 1/2" x 1-1/2" hex hd. cap, N.C. thread
3шт.
WASHER - 1/2" std. lock
3шт.
A5903A
CAP - belt pulley shaft bearing carrier, L.H.
1шт.
SCREW - 5/16" x 1" hex hd. cap, N.C. thread
8шт.
SCREW - 1/2" x 1-1/2" hex hd. cap, N.C. thread
3шт.
WASHER - 1/2" std. lock
3шт.
5916A
SHOE - belt pulley brake (Use 3422AA)
1шт.
O6153AB
X
LINING - brake shoe
1шт.
RIVET - .146" x 10/16" brass tubular, no. 2561
4шт.
O7605AB
SHAFT - belt pulley
1шт.
KEY - no. 29 Woodruff
1шт.
NUT - 1-1/4" hex, light, jam, N.F. thread
1шт.
WASHER - 1-1/4" std. lock
1шт.
O7606AB
NUT - belt pulley shaft
1шт.
PIN - 1/4" x 2" cotter
1шт.
O7607AB
WASHER - belt pulley shaft
1шт.
O7608AB
X
BEARING - belt pulley shaft, R.H. (New Departure no. 1210)
1шт.
O7609AB
BEARING - belt pulley shaft, L.H. (New Departure no. 5209)
1шт.
O7610AB
OIL SEAL
- belt pulley shaft
1шт.
O7611AB
CARRIER - belt pulley shaft bearing, L.H.
1шт.
O7612AB
SHIM - belt pulley shaft bearing carrier (.003" thick)
2шт.
O7613AB
SHIM - belt pulley shaft bearing carrier (.005" thick)
5шт.
O7614AB
X
SNAP RING - third speed pinion
2шт.
O7615AB
PINION - third speed (See O9365AB)
1шт.
O8849AB
X
"O" RING - belt pulley shaft bearing carrier, R.H.
1шт.
O8861AB
X
"O" RING - belt pulley shaft bearing carrier cap (A5903A)
1шт.
O9365AB
PINION - third speed (25 teeth) (Special for 6 M.P.H. third speed) (See O7615AB) (See note) (DC4)
1шт.
2971AA
SHOE - brake, with lining (Tractor no. 8025740 and after) (See 3422AA) (D, DC3, DC4)
1шт.
3422AA
SHOE - belt pulley brake, with lining and 2-3/8" x 1-1/2" flat point set screw and jam nut (Prior to tractor no. 8025740) (See 2971AA) (D, DC3, DC4)
1шт.
PIN - 3/8" x 2" type 5 groove (D, DC3, DC4)
1шт.
3422AA
SHOE - belt pulley brake, with lining and 2-3/8" x 1-1/2" flat point set screw and jam nut (DO, DV)
1шт.
PIN - 3/8" x 2" type 5 groove (DO, DV)
1шт.
4295AA
SHAFT AND PINION - clutch, with transmission bevel gear
1шт.
Выбрано товаров: 39
