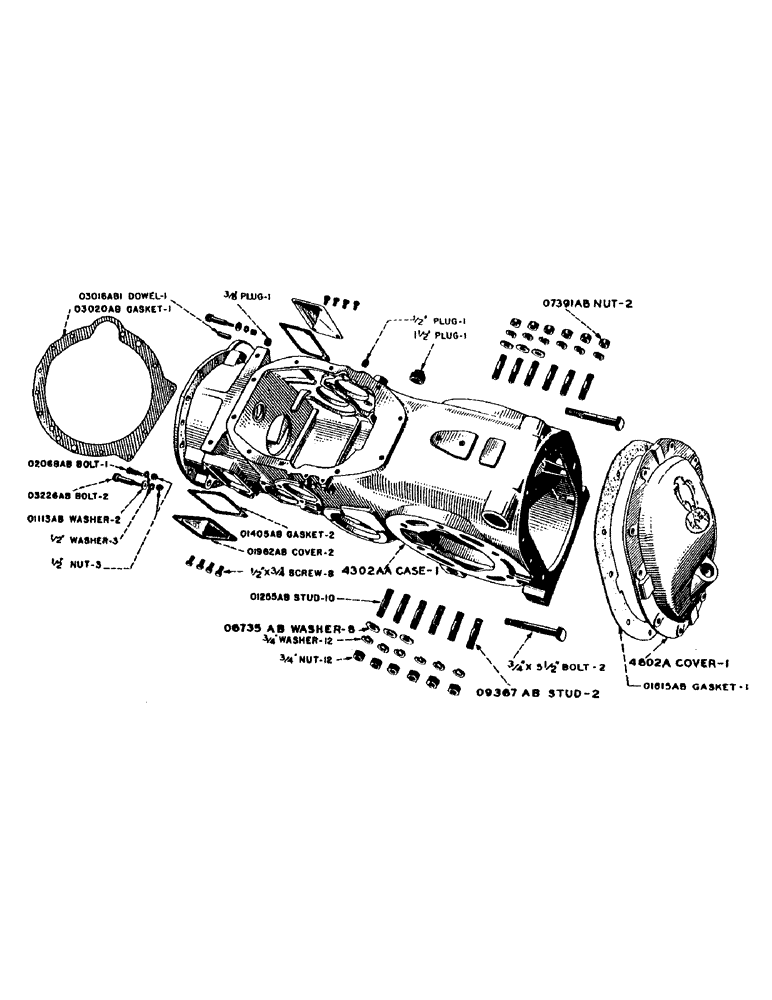

Запчасти Case IH DV-SERIES (068) - TRANSMISSION CASE, D, DC, DO, DV (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
4602A
COVER - transmission case, rear (Prior to tractor no. 8025740) (D, DO, DV)
1шт.
PLUG - 1-1/4" sq. hd. pipe (D, DO, DV)
1шт.
SCREW - 1/2" x 1-1/4" hex hd. cap, N.C. thread (D, DO, DV)
10шт.
WASHER - 1/2" std. lock (D, DO, DV)
10шт.
6175A
CASE - transmission (Use 4302AA)
1шт.
O1113AB
WASHER - transmission flange bolt
2шт.
O1255AB
STUD - rear axle housing (3/4" x 3-1/4") (D, DC)
10шт.
O1255AB
STUD - rear axle housing (3/4" x 3-1/4") (DO, DV)
12шт.
NUT - 3/4" hex, light, N.F. thread (D, DC)
10шт.
NUT - 3/4" hex, light, N.F. thread (DO, DV)
12шт.
WASHER - 3/4" std. lock (D, DC)
10шт.
WASHER - 3/4" std. lock (DO, DV)
12шт.
O1405AB
X
GASKET - clutch hand hole cover
2шт.
O1615AB
X
GASKET - transmission case rear cover
1шт.
O1962AB
COVER - clutch hand hole
2шт.
SCREW - 1/2" x 3/4" hex hd. cap, N.C. thread
8шт.
O2068AB
BOLT - transmission dowel
1шт.
WASHER - 1/2" std. lock
1шт.
NUT - 1/2" hex, light, N.F. thread
1шт.
O3016AB1
DOWEL - transmission case and cylinder block
1шт.
O3020AB
GASKET
- transmission case front end
1шт.
O3226AB
BOLT - transmission flange
2шт.
NUT - 1/2" hex, light, N.F. thread
2шт.
WASHER - 1/2" std. lock
2шт.
O6735AB
WASHER - rear axle housing stud (D, DC)
8шт.
O6735AB
WASHER - rear axle housing stud (DO, DV)
12шт.
O7391AB
NUT - rear axle housing stud, upper (D, DC)
2шт.
O7768AB
GASKET - used on 1/2" x 3" cap screw, N.C. thread, which fastens the cylinder block to transmission case
1шт.
O9090AB
PLUG - Eagle hitch rockshaft hole (D, DO, DV)
2шт.
O9367AB
STUD - rear axle housing, upper (D, DC)
2шт.
NUT - 3/4" hex, light, N.F. thread (D, DC)
2шт.
WASHER - 3/4" std. lock (D, DC)
2шт.
4302AA
CASE - transmission (Includes 2-O9090AB plugs and 1-1/2" sq. hd. pipe plug)
1шт.
BOLT - 3/4" x 5-1/2" machine, with N.F. hex nut
2шт.
NUT - 1/2" hex, light, N.F. thread
7шт.
PLUG - 1-1/2" pipe
1шт.
PLUG - 3/8" sq. hd. pipe
1шт.
PLUG - 1/2 sq. hd. pipe
2шт.
SCREW - 1/2" x 2" hex hd. cap, N.F. thread
7шт.
SCREW - 1/2" x 3" hex hd. cap, N.F. thread
1шт.
WASHER - 1/2" std. lock
12шт.
WASHER - 3/4" std. lock
2шт.
Выбрано товаров: 42
