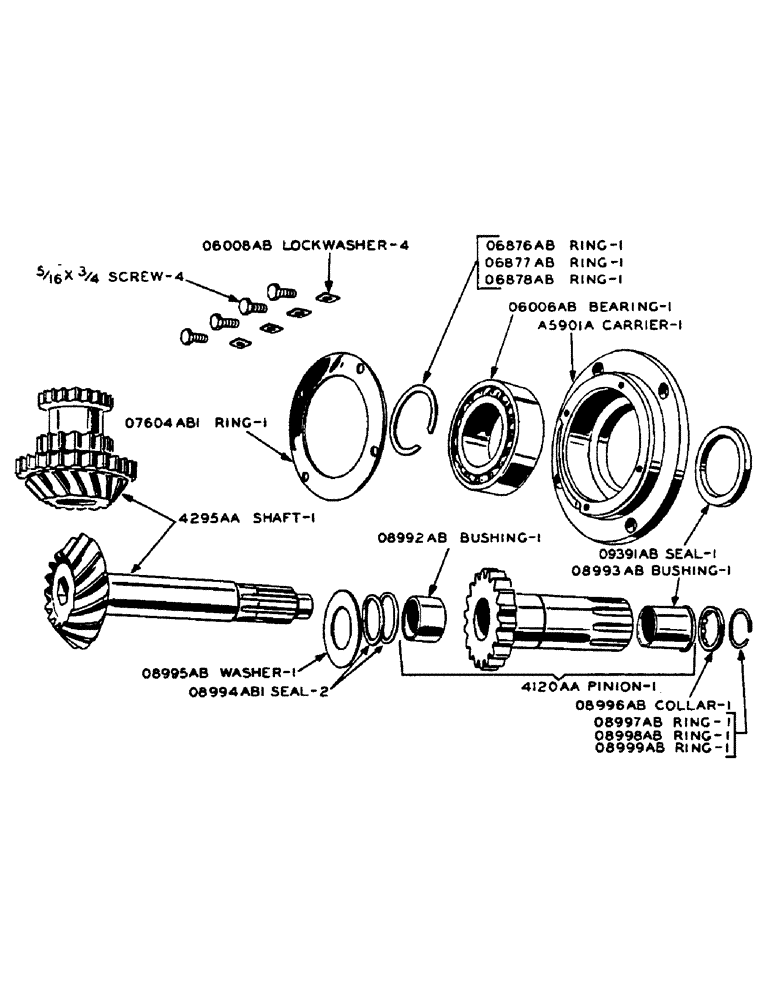

Запчасти Case IH DV-SERIES (066) - CLUTCH SHAFT, D, DC, DO, DV (06) - POWER TRAIN

5901A

CARRIER - (Use A5901A)

1шт.

A5901A

CARRIER - clutch shaft bearing (Used with hand operated clutch) (See 4408AA)

1шт.

1/2" x 1-1/4" N.C. hex hd. cap screw with lockwasher

1шт.

1/2" x 1-1/2" N.c. hex hd. cap screw with lockwasher

2шт.

1/2" x 1-3/4" N.C. hex hd. cap screw with lockwasher

1шт.

6240A

CARRIER - (Use 4408AA)

1шт.

O1623AB

SHIM - clutch shaft bearing carrier (No. 30 gauge)

4шт.

O1771AB

SHIM - clutch shaft bearing carrier (.005" thick)

2шт.

O2144AB

X

GASKET - for O5007AB washer (D, DO, DV)

1шт.

O2846AB

X

GASKET - oil trough carriage bolt (Prior to tractor no. 8025740) (D, DO, DV)

1шт.

O4696AB

SHIM - clutch shaft bearing carrier (.003" thick)

2шт.

O5007AB

WASHER - oil trough reinforcement (Prior to tractor no. 8025740) (D, DO, DV)

1шт.

O5258AB

BEARING

- pilot, flywheel end of clutch shaft (New Departure no. 8505)

1шт.

O6006AB

X

BEARING - clutch shaft, rear end (New Departure #5211)

1шт.

O6008AB

LOCKWASHER - clutch shaft bearing retainer ring

4шт.

5/16" x 3/4" N.C. hex hd. cap screw

4шт.

O6876AB

X

SNAP RING - PTO pinion and sleeve (4120AA) (.0960" thick)

1шт.

O6877AB

X

SNAP RING - PTO pinion and sleeve (4210AA) (.0975" thick)

1шт.

O6878AB

X

SNAP RING - PTO pinion and sleeve (4120AA) (.0990" thick)

1шт.

O7604AB1

X

RING - retainer, clutch shaft bearing

1шт.

5/16" x 3/4" N.C. hex hd. cap screw

4шт.

O8992AB

BUSHING - for pinion end of 4120AA sleeve

1шт.

O8993AB

BUSHING - flanged, for 4120AA sleeve

1шт.

O8994AB1

X

OIL SEAL - clutch shaft and PTO pinion

2шт.

O8995AB

WASHER - bronze, thrust, clutch shaft and PTO pinion

1шт.

O8996AB

COLLAR - thrust, clutch shaft

1шт.

O8997AB

X

SNAP RING - clutch shaft (.0775)

1шт.

O8998AB

X

SNAP RING - clutch shaft (.0805)

1шт.

O8999AB

X

SNAP RING - clutch shaft (.0835)

1шт.

O9391AB

OIL SEAL - clutch shaft (Used with A5901A bearing carrier) (See O9542AB)

1шт.

O9463AB

SPACER - for 5901A bearing carrier

1шт.

O9541AB

GUIDE - clutch release bearing sleeve (Used with 4408AA bearing carrier) (D, DC)

1шт.

O9542AB

OIL SEAL - clutch shaft bearing (Used with 4408AA bearing carrier) (See O9391AB) (D, DC)

1шт.

O10276AB

THIMBLE - to install O9391AB and O9542AB oil seals on PTO pinion sleeve

1шт.

A1996AA

TROUGH - oil, transmission bevel gears (Prior to tractor no. 8025740) (D, DO, DV)

1шт.

3/8" x 2" carr. bolt with N.C. hex nut (D, DO, DV)

1шт.

4120AA

PINION - PTO, and sleeve, with bushings

1шт.

4295AA

SHAFT - clutch, and pinion, with transmission bevel gear (See note)

1шт.

No. 141 Woodruff key

1шт.

4408AA

CARRIER - clutch shaft bearing, with release bearing sleeve guide (Used with foot operated clutch) (See A5901) (D, DC)

1шт.

1/2" x 1-1/4" N.C. hex hd. cap screw w/lockwasher (D, DC)

3шт.

1/2" x 1-3/4" N.C. hex hd. cap screw w lockwasher (D, DC)

1шт.
