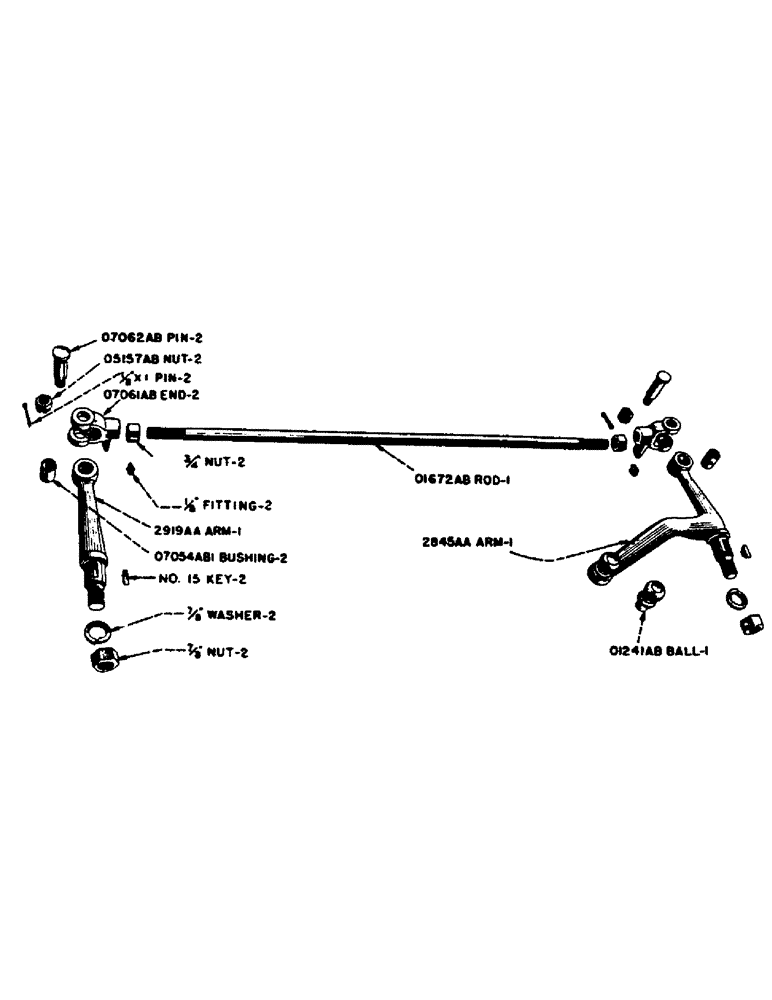

Запчасти Case IH DV-SERIES (134) - STEERING ARMS AND TIE ROD, FOR D, DC-4, DO AND DV TRACTORS (05) - STEERING
№
Артикул
Название
Примечание
Количество
O1241AB
BALL - L.H. steering spindle arm
1шт.
O1672AB
ROD - front axle tie (D, DO, DV)
1шт.
3/4" hex nut, light, N.F. thread (D, DO, DV)
2шт.
O1672AB
ROD - front axle tie (Prior to tractor no. 8025740) (See O9681AB) (DC-4)
1шт.
3/4" hex nut, N.F. thread (DC-4)
2шт.
O5157AB
NUT - tie rod yoke end pin
2шт.
O7054AB1
X
BUSHING - steering spindle arms
2шт.
O7061AB
END - yoke, tie rod
2шт.
O7062AB
PIN - tie rod yoke end
2шт.
1/8" x 1" cotter pin
2шт.
O9681AB
ROD - front axle tie (Tractor no. 8025740 and after) (See O1672AB) (DC-4)
1шт.
3/4" hex nut, N.F. thread (DC-4)
2шт.
2845AA
ARM - steering spindle, with ball and bushing, L.H. (D, DO, DV)
1шт.
1/8" straight Lincoln fitting no. 5000 (D, DO, DV)
1шт.
7/8" hex nut, light, N.F. thread (D, DO, DV)
1шт.
7/8" std. lockwasher (D, DO, DV)
1шт.
No. 15 Woodruff key (D, DO, DV)
1шт.
2845AA
ARM - steering spindle, with ball and bushing, L.H. (Prior to tractor no. 8025740) (See 4519AA) (DC-4)
1шт.
1/8" str. Lincoln fitting no. 5000 (DC-4)
1шт.
7/8" hex nut, light, N.F. thread (DC-4)
1шт.
7/8" std. lockwasher (DC-4)
1шт.
No. 15 Woodruff key (DC-4)
1шт.
2919AA
ARM - steering spindle, with bushing, R.H. (D, DO, DV)
1шт.
1/8" str. Lincoln fitting no. 5000 (D, DO, DV)
1шт.
7/8" hex nut, light, N.F. thread (D, DO, DV)
1шт.
7/8" std. lockwasher (D, DO, DV)
1шт.
No. 15 Woodruff key (D, DO, DV)
1шт.
2919AA
ARM - steering spindle, with O7054AB1 bushings, R.H. (Prior to tractor no. 8025740) (See 4518AA) (DC-4)
1шт.
1/8" str. Lincoln fitting no. 5000 (DC-4)
1шт.
7/8" hex nut, light, N.F. thread (DC-4)
1шт.
7/8" std. lockwasher (DC-4)
1шт.
No. 15 Woodruff key (DC-4)
1шт.
4518AA
ARM - steering spindle, with O7054AB1 bushings, R.H. (Tractor no. 8025740 and after) (See 2919AA) (DC-4)
1шт.
1/8" str. Lincoln fitting no. 5000 (DC-4)
1шт.
7/8" hex nut, light, N.F. thread (DC-4)
1шт.
7/8" std. lockwasher (DC-4)
1шт.
No. 15 Woodruff key (DC-4)
1шт.
4519AA
ARM - steering spindle, with ball and bushing, L.H. (Tractor no. 8025740 and after) (See 2845AA) (DC-4)
1шт.
1/8" str. Lincoln fitting no. 5000 (DC-4)
1шт.
7/8" hex nut, light, N.F. thread (DC-4)
1шт.
7/8" std. lockwasher (DC-4)
1шт.
No. 15 Woodruff key (DC-4)
1шт.
Выбрано товаров: 42
