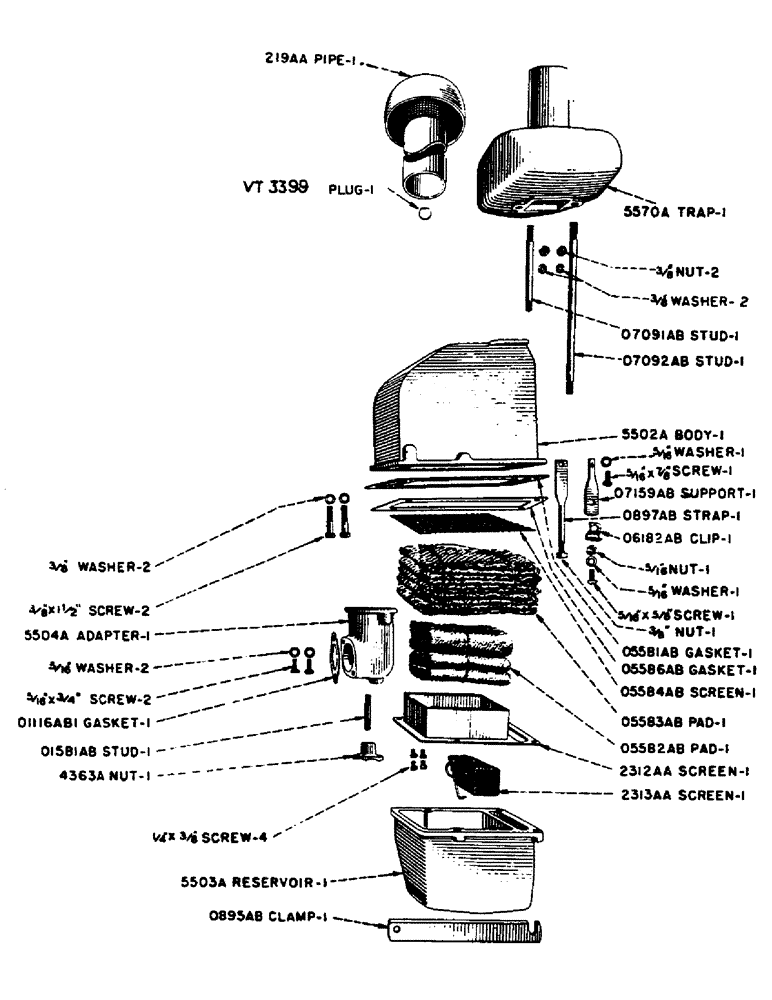

Запчасти Case IH DV-SERIES (022) - AIR CLEANER, D, DC, DO, DV (02) - ENGINE

VT3399

PLUG - air cleaner oil trap (1" dia. Welch)

1шт.

4363A

NUT - air cleaner clamp

1шт.

5502A

BODY - air cleaner

1шт.

5503A

RESERVOIR - air cleaner

1шт.

PLUG - 1-1/4" slotted hex pipe

1шт.

SCREW - 1/4" x 3/8" Fillister hd. mach., N.F. thread

4шт.

5504A

ADAPTER - carburetor

1шт.

SCREW - 3/8" x 1-1/2" hex hd. cap, N.C. thread

2шт.

WASHER - 3/8" std. lock

2шт.

5570A

TRAP - oil, air cleaner, with VT3399 plug (D, DC)

1шт.

5829A

TRAP - oil, air cleaner (DO, DV)

1шт.

O895AB

CLAMP - air cleaner

1шт.

O897AB

STRAP - air cleaner clamp

1шт.

NUT - 3/8" hex, N.C. thread

1шт.

O1116AB1

X

GASKET - carburetor adapter

1шт.

O1581AB

STUD - air cleaner clamp

1шт.

O5581AB

GASKET - air cleaner box plate

1шт.

O5582AB

PAD - air cleaner filter, lower

1шт.

O5583AB

PAD - air cleaner filter, upper

1шт.

O5584AB

SCREEN - air cleaner, upper

1шт.

O5586AB

GASKET - air cleaner reservoir

1шт.

O6182AB

CLIP - strainer to carburetor tube

1шт.

SCREW - 5/16" x 5/8" rd. hd. mach., N.C. thread

1шт.

NUT - 5/16" hex, N.C. thread

1шт.

WASHER - 5/16" std. lock

1шт.

O7091AB

STUD - air cleaner oil trap, short

1шт.

NUT - 3/8" hex, light, N.F. thread

1шт.

WASHER - 3/8" std. lock

1шт.

O7092AB

STUD - air cleaner oil trap, long

1шт.

NUT - 3/8" hex, light, N.F. thread

1шт.

WASHER - 3/8" std. lock

1шт.

O7159AB

SUPPORT - strainer to carburetor tube

1шт.

SCREW - 5/16" x 7/8" hex hd. cap, N.C. thread

1шт.

WASHER - 5/16" std. lock

1шт.

219AA

X

PIPE - air intake, complete (Approx. length 30") (D, DC)

1шт.

2312AA

BOX AND SCREEN - air cleaner

1шт.

2313AA

SCREEN - chaff, air cleaner

1шт.
