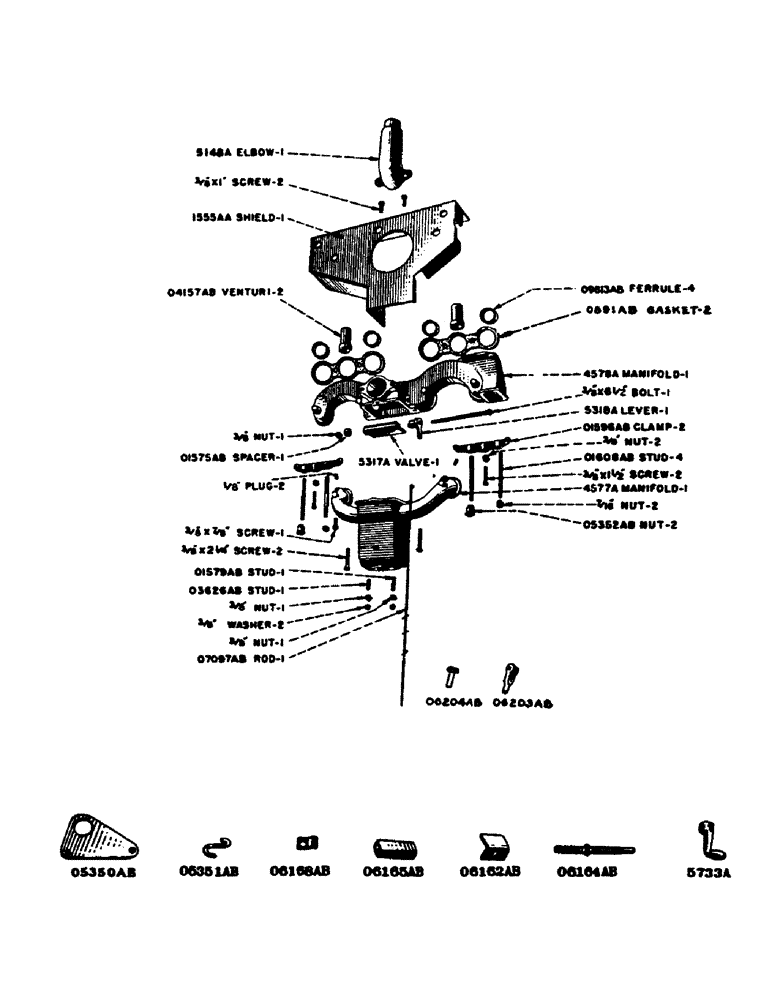

Запчасти Case IH DV-SERIES (020) - LOW COST FUEL MANIFOLD, D, DC, DO, DV (02) - ENGINE
№
Артикул
Название
Примечание
Количество
4577A
MANIFOLD - intake
1шт.
PLUG - 1/8" sq. hd. pipe
2шт.
SCREW - 3/8" x 7/8" hex hd. cap, N.C. thread
1шт.
4578A
MANIFOLD - exhaust
1шт.
5148A
X
ELBOW - exhaust (D, DC)
1шт.
SCREW - 3/8" x 1" hex hd. cap, N.C. thread (D, DC)
2шт.
5220A
ELBOW - exhaust (DO, DV)
1шт.
SCREW - 3/8" x 1" hex hd. cap, N.C. thread (DO, DV)
2шт.
5317A
VALVE - heat regulator
1шт.
BOLT - 3/8" x 6-1/2" mach.
1шт.
NUT - 3/8" hex jam, N.C. thread
1шт.
5318A
LEVER - heat regulator
1шт.
5733A
HANDLE - heat regulator control
1шт.
PIN - 3/32" x 5/8" type 1 groove
1шт.
O887AB
X
FERRULE - (Use O9813AB)
1шт.
O891AB
MANIFOLD GASKET
- intake and exhaust manifold
2шт.
O1575AB
SPACER - heat regulator valve
1шт.
O1579AB
STUD - carburetor to manifold, long (See O3626AB)
1шт.
NUT - 3/8" hex light, N.F. thread
1шт.
WASHER - 3/8" std. lock
1шт.
O1596AB
CLAMP - manifold
2шт.
SCREW - 3/8" x 1-1/2" cup point set, N.C. thread
2шт.
NUT - 3/8" hex, jam, N.C. thread
2шт.
O1608AB
STUD - manifold clamp
4шт.
NUT - 7/16" hex, light, N.F. thread
2шт.
O3626AB
STUD - carburetor to manifold, short (See O1579AB)
1шт.
NUT - 3/8" hex jam, light, N.F. thread
1шт.
WASHER - 3/8" std. lock
1шт.
O4157AB
VENTURI - inlet manifold
2шт.
O5350AB
ARM - heat regulator lever
1шт.
O5351AB
LINK - heat regulator lever arm
1шт.
PIN - 1/16" x 3/8" cotter
1шт.
O5352AB
NUT - manifold cover
2шт.
O6162AB
GUIDE - heat regulator control
1шт.
O6164AB
SCREW - heat regulator control
1шт.
O6165AB
CONNECTOR - heat regulator control
1шт.
O6168AB
CLIP - heat regulator control rod
1шт.
SCREW - 5/16" x 3/4" rhd. mach., N.C. thread
1шт.
NUT - 5/16" hex, N.C. thread
1шт.
WASHER - 5/16" std. lock
1шт.
O6203AB
X
END - heat regulator rod
1шт.
PIN - 1/16" x 5/16" cotter
1шт.
213-1
ADJUSTABLE CLEVIS,#10-32
PIN - heat regulator rod end
1шт.
O7097AB
ROD - heat regulator
1шт.
O9813AB
X
FERRULE - exhaust manifold
4шт.
1555AA
SHIELD - manifold
1шт.
Выбрано товаров: 46
