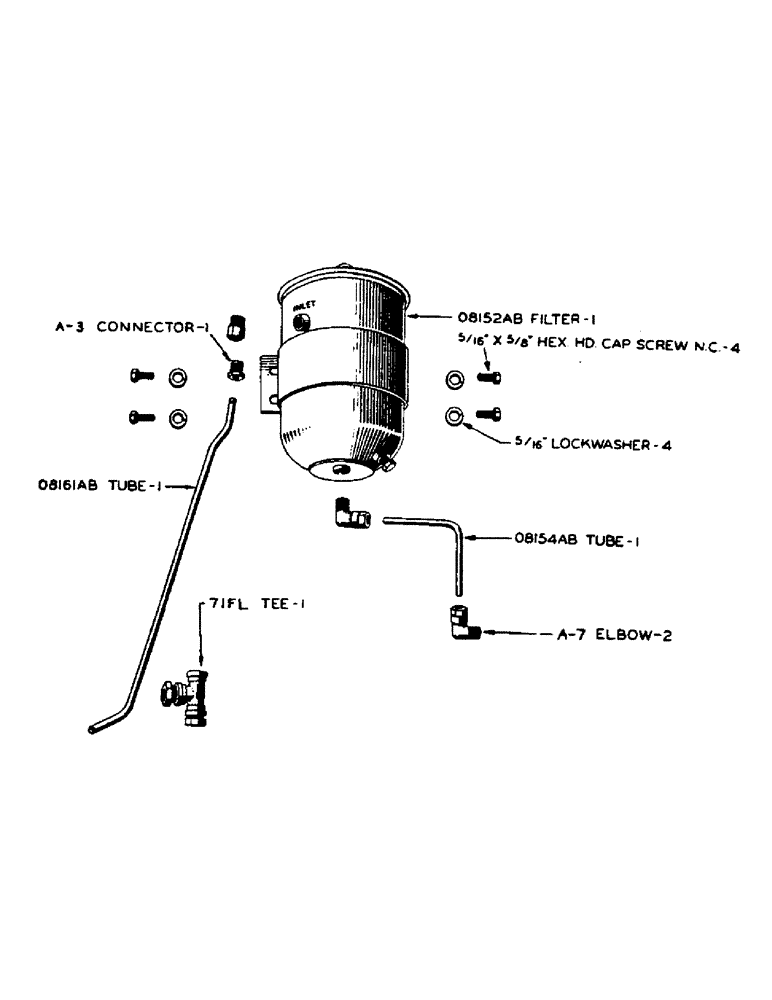

Запчасти Case IH DV-SERIES (016) - OIL FILTER, D, DC, DO, DV (02) - ENGINE

O8152AB

X

FILTER - oil (Purolator type P-706)

1шт.

SCREW - 5/16" x 5/8" hex hd. cap, N.C. thread

4шт.

WASHER - 5/16" std. lock

4шт.

WASHER - 5/16" plain

4шт.

O8154AB

TUBE - oil filter outlet to cylinder block

1шт.

ELBOW - Dole A-7 male, 3/16" tube size x 1/8" pipe thread

2шт.

O8161AB

TUBE - oil filter inlet

1шт.

CONNECTOR - Dole A-3 male, 3/16" tube size x 1/8" pipe thread

1шт.

TEE - Imperial Brass no. 71FL, 3/16" tube size x 1/8" pipe thread

1шт.

O8167AB

TUBE - oil gauge to cylinder block

1шт.

TEE - Imperial Brass flex no. 71FL, 3/16" tube size x 1/8" pipe thread

1шт.

O8891AB

CONNECTION - oil gauge tube

1шт.

CONNECTOR - 3/16" tube size x 1/8" pipe thread - Imperial flex #68FL

1шт.
