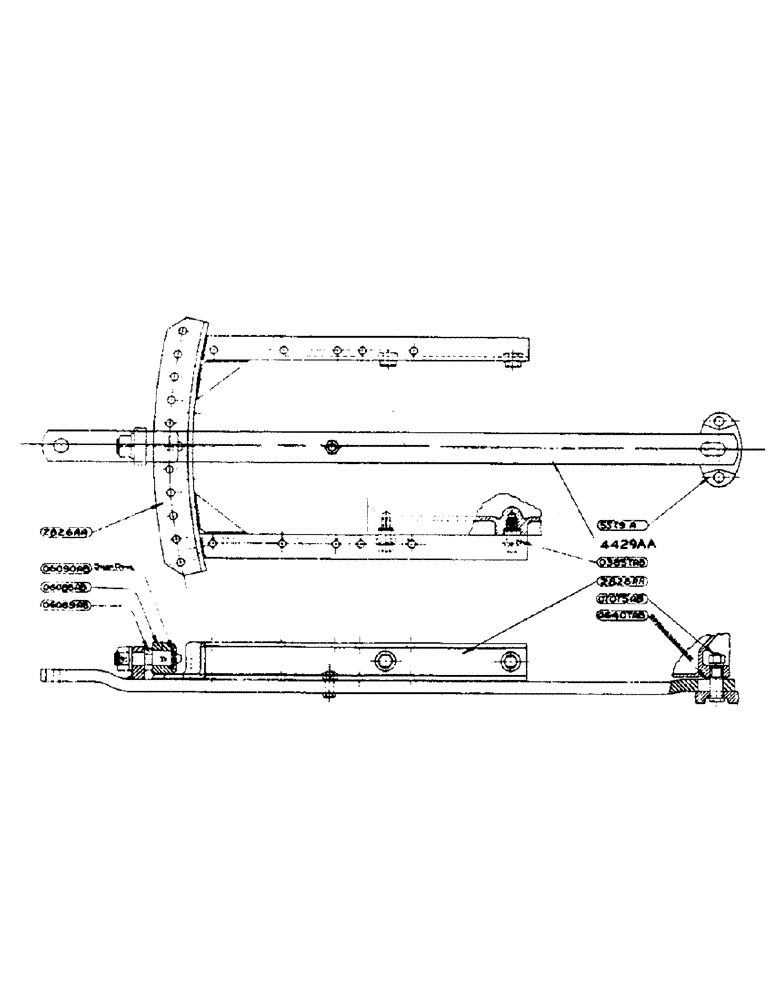

Запчасти Case IH DV-SERIES (169) - DRAW BAR, FROM TRACTOR NO. 4513322 TO NUMBER 4800000, D, DC, DO (09) - CHASSIS

5579A

X

BRACKET, draw bar pivot

1шт.

SCREW, 3/4" x 3-1/2" hexagon head cap, N.F. thread

2шт.

NUT, 3/4" hexagon, light, N.F. thread

2шт.

WASHER, 3/4" standard lock

2шт.

O3857AB

BUSHING, draw bar support

4шт.

SCREW, 3/4" x 2" hexagon head cap, N.C. thread

4шт.

WASHER, 3/4" standard lock

4шт.

O6088AB

X

ROLLER, draw bar

1шт.

O6089AB

X

BOLT, draw bar roller. Use O6089AB1

1шт.

O6089AB1

X

BOLT, draw bar roller

1шт.

FITTING, 1/8" straight Lincoln, no. 5000 (DC)

1шт.

FITTING, 1/8" 45 degree Lincoln, no. 5200 (D, DO)

1шт.

NUT, 1-1/8" hexagon, light, N.F. thread

1шт.

WASHER, 1-1/8" standard lock

1шт.

O6090AB

X

RING, snap, draw bar roller bolt

1шт.

O6407AB

WASHER, draw bar spring

1шт.

O7075AB

X

BOLT, draw bar pivot

1шт.

NUT, 3/4" hexagon, light, N.F. thread

1шт.

WASHER, 3/4" standard lock

1шт.

2826AA

GUIDE ANGLE WITH SUPPORT FOR DRAW BAR (DC)

1шт.

2827AA

GUIDE ANGLE WITH SUPPORT FOR DRAW BAR (D, DO)

1шт.

2831AA

BAR, draw, with roller and bolt. Use 4429AA

1шт.

4429AA

BAW - draw, complete

1шт.

O5505AB

PLATE, platform (D, DO)

1шт.

BOLT, 3/8" x 1-1/4" carriage, (With hexagon nut) (D, DO)

2шт.

BOLT, 3/8" x 1-1/4" machine, (With hexagon nut) (D, DO)

2шт.

WASHER, 3/8" standrad lock (D, DO)

2шт.

WASHER, 3/8" standard plain (D, DO)

2шт.

O7128AB

PLATE, platform, front, R.H. (D, DO)

1шт.

BOLT, 1/4" x 1/2" machine (D, DO)

2шт.

BOLT, 3/8" x 1" machine (Hex. nut) (D, DO)

2шт.

WASHER, 1/4" standard lock (D, DO)

2шт.

WASHER, 3/8" standard lock (D, DO)

2шт.

O7129AB

PLATE, platform, front, L.H. (D, DO)

1шт.

BOLT, 1/4" x 1/2" machine (D, DO)

2шт.

BOLT, 3/8" x 1" machine (Hex. nut)

2шт.

WASHER, 1/4" standard lock (D, DO)

2шт.

WASHER, 3/8" standard lock (D, DO)

2шт.

C182AA

PLATFORM ASSEMBLY (D, DO)

1шт.
