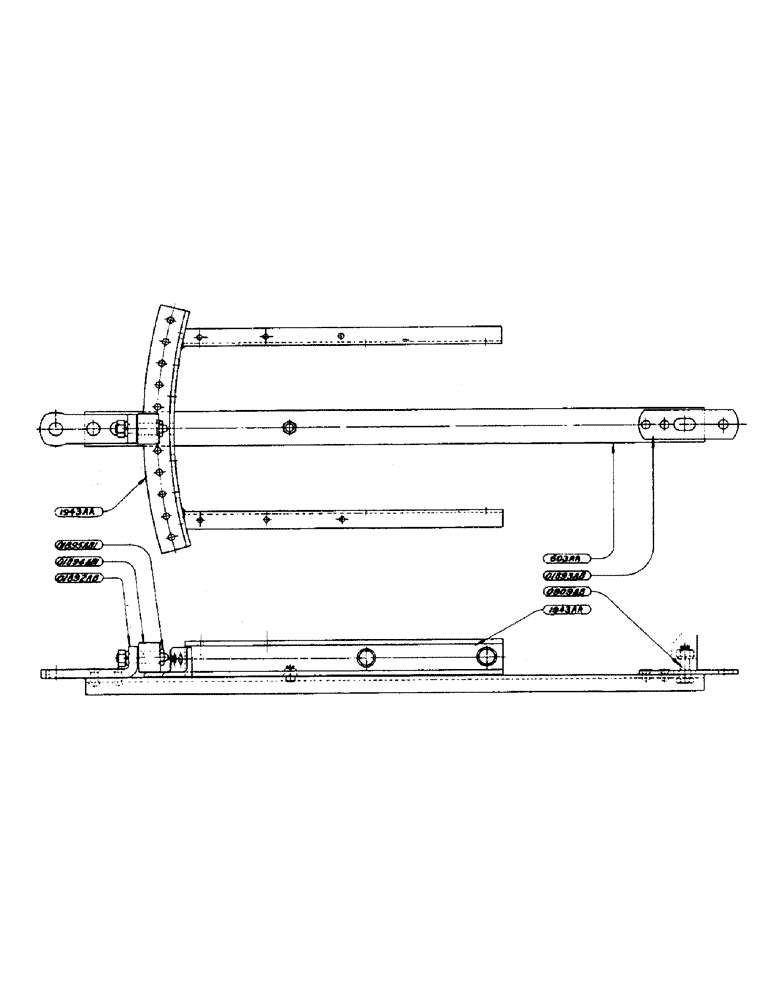

Запчасти Case IH DV-SERIES (168) - DRAW BAR PRIOR TO TRACTOR NUMBER 4513322, D, DC, DO, PLATFORM (09) - CHASSIS

O909AB

BOLT, draw bar pivot

1шт.

NUT, 3/4" hexagon, N.F. thread

1шт.

WASHER, 3/4" standdard lock

1шт.

O1892AB

STRAP, draw bar, rear

1шт.

RIVET, 5/8" x 1-7/8" round head

2шт.

O1893AB

STRAP, draw bar, front

1шт.

RIVET, 1/2" x 1-1/8" round head

2шт.

O1894AB1

ROLLER, draw bar

1шт.

O1895AB1

BOLT, draw bar roller

1шт.

NUT, 3/4" hexagon, N.F. thread

1шт.

WASHER, 3/4" standard lock

1шт.

603AA

BAR, draw, complete with straps, roller, and bolt

1шт.

BOLT, 5/8" x 1-1/4" machine, with hex. nut (DC)

1шт.

WASHER, 5/8" standard lock (DC)

1шт.

1943AA

ANGLE, guide, with supports (DC)

1шт.

2262AA

ANGLE, guide, with supports (D, DO)

1шт.

O5505AB

PLATE, platform (D, DO)

1шт.

BOLT, 3/8" x 1" carriage, (With hexagon nut) (D, DO)

4шт.

WASHER, 3/8" standard lock (D, DO)

4шт.

O5506AB

PLATE, platform, front, R.H. (D, DO)

1шт.

BOLT, 3/8" x 1" machine (D, DO)

2шт.

WASHER, 3/8" standard lock (D, DO)

2шт.

O5507AB

PLATE, platform, front, L.H. (D, DO)

1шт.

BOLT, 3/8" x 1" machine (D, DO)

2шт.

WASHER, 3/8" standard lock (D, DO)

2шт.

O5508AB

BRACE, platform (D, DO)

2шт.

BOLT, 3/8" x 1" machine (D, DO)

2шт.

WASHER, 3/8" standard lock

2шт.

B182AA

PLATFORM ASSEMBLY (D, DO)

1шт.
