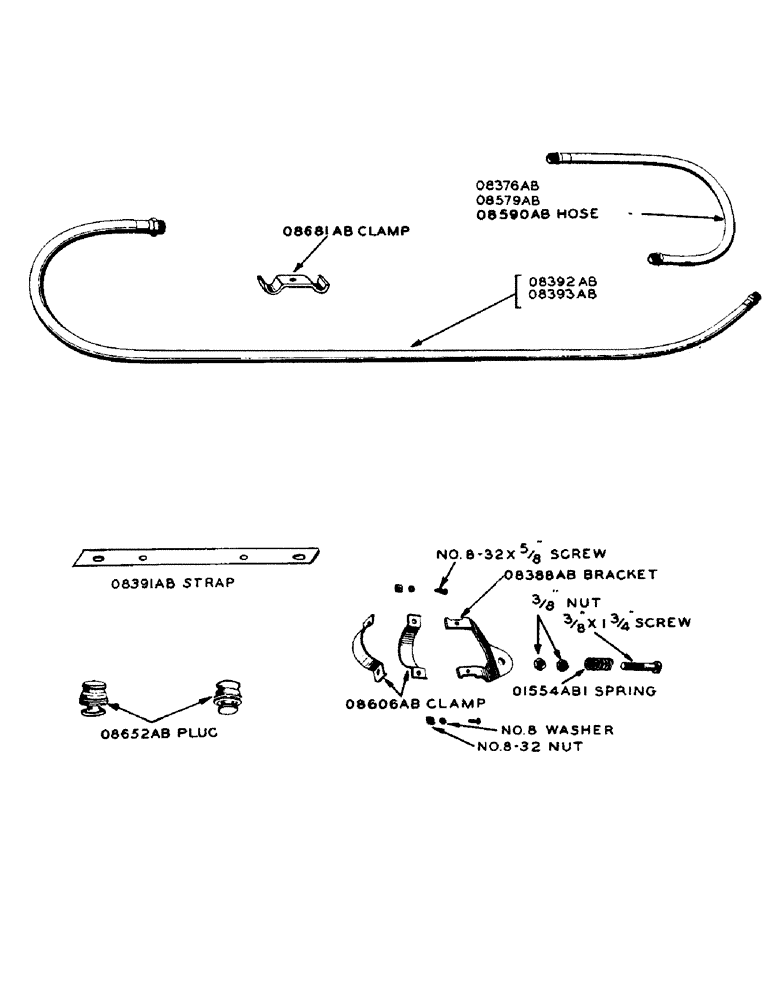

Запчасти Case IH DV-SERIES (164) - HYDRAULIC CONTROL UNIT, HOSES FOR PORTABLE CYLINDER, D, DC, DO (08) - HYDRAULICS

O8376AB

HOSE, coupling to valve, L.H. (3/8" inside diameter x 23-1/4" long) (DC)

1шт.

O8392AB

HOSE, coupling to portable cylinder, front (3/8" inside diameter 76" long)

1шт.

O8393AB

HOSE, coupling to portable cylinder, rear (3/8" inside diameter x 88" long)

1шт.

O8579AB

HOSE, coupling to valve, R.H. (3/8" inside diameter x 33" long) (DC)

1шт.

O8590AB

HOSE, coupling to valve, (1/2" inside diameter x 18" long) (D, DO)

2шт.

O8681AB

X

CLAMP FOR HOSE

1шт.

SCREW, 5/16" x 3/4" hex. hd. cap N.F. thread

1шт.

NUT, 5/16" hex. light, N.F. thread

1шт.

WASHER, 5/16" std. lock

1шт.

O8387AB

X

PLUG, male body adapter

1шт.

O8727AB

X

HOSE, short, for manure loader. (3/8" x 14-1/2" long)

1шт.

4025AA

X

COUPLING, break-away male. Consists of 1 - 6118A, 1 - O8372AB, 1 - O8375AB, 1 - O8381AB, 1 - O8386AB, and 1 - O8859AB

2шт.

O1554AB1

X

SPRING, mounting bracket

2шт.

O8388AB

X

BRACKET, break-away coupling mounting

4шт.

SCREW, 3/8" x 2" hexagon head cap, N.F. thread

2шт.

NUT, 3/8" hexagon jam, light, N.F. thread

1шт.

O8391AB

STRAP, break-away coupling mounting (DC)

1шт.

O8606AB

X

CLAMP, break-away coupling mounting

4шт.

SCREW, no. 8-32 x 5/8" round head machine w/nut and lockwasher

4шт.

O8652AB

X

PLUG, dust, hydraulic brake-away coupling

2шт.

O8687AB

STRAP, break-away coupling mounting (D, DO)

1шт.

SCREW, 5/16" x 3/4" hexagon head cap, N.F. thread w/nut and lockwasher (D, DO)

2шт.
