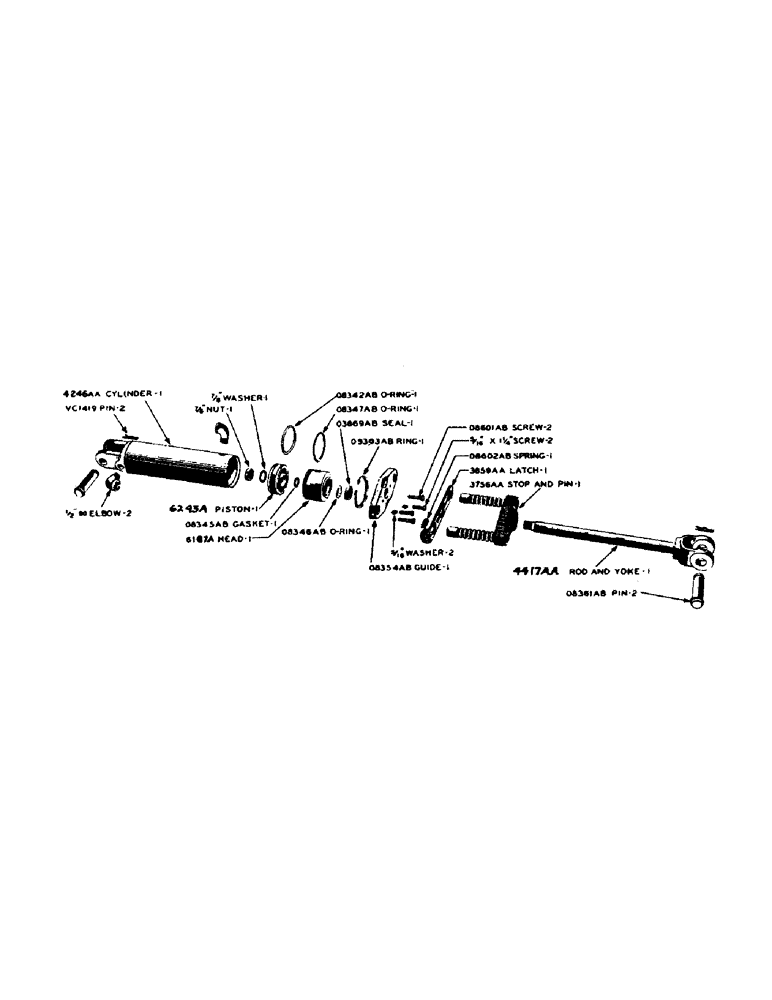

Запчасти Case IH DV-SERIES (163) - HYDRAULIC CONTROL UNIT, B3785AA PORTABLE CYLINDER (3-1/4" X 8"), D, DC, DO (08) - HYDRAULICS

6044A

HEAD (Use 4246AA)

1шт.

6187A

HEAD - inner (Replaces 6041A)

1шт.

Part of Cylinder, P/N B3785AA

1шт.

6243A

PISTON - hydraulic cylinder (Replaces 6041A)

1шт.

Part of Cylinder, P/N B3785AA

1шт.

O3869AB

X

OIL SEAL - piston rod

1шт.

Part of Cylinder, P/N B3785AA

1шт.

O8342AB

X

"O" RING - piston

1шт.

Part of Cylinder, P/N B3785AA

1шт.

O8345AB

X

GASKET - piston rod

1шт.

Part of Cylinder, P/N B3785AA

1шт.

O8346AB

X

"O" RING - piston rod

1шт.

Part of Cylinder, P/N B3785AA

1шт.

O8347AB

X

"O" RING - hydraulic cylinder

1шт.

Part of Cylinder, P/N B3785AA

1шт.

O8348AB

RING, hydraulic cylinder head snap (For sq. groove) (See O9303AB)

1шт.

Part of Cylinder, P/N B3785AA

1шт.

O8354AB

GUIDE - limit stop pin

1шт.

Part of Cylinder, P/N B3785AA

1шт.

5/16" x 1-1/4" N.C. hex. hd. cap screw w/lockwasher

2шт.

Part of Cylinder, P/N B3785AA

1шт.

O8361AB

X

PIN - yoke end

2шт.

O8392AB

HOSE - 4025AA male coupling to portable cylinder, front (1/2" I.D. x 76")

1шт.

O8393AB

HOSE - 4025AA male coupling to portable cylinder, rear (1/2" I.D. x 88")

1шт.

O8590AB

HOSE - 4026AA coupling to valve (1/2" I.D. x 18" long)

2шт.

O8601AB

X

SCREW - limit stop latch

2шт.

Part of Cylinder, P/N B3785AA

1шт.

5/16" Shakeproof lockwasher, no. 1218-4

2шт.

Part of Cylinder, P/N B3785AA

1шт.

O8602AB

X

SPRING - limit stop latch

1шт.

Part of Cylinder, P/N B3785AA

1шт.

O8681AB

X

CLAMP - hose

2шт.

5/16" x 3/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

1шт.

O9303AB

X

SNAP RING - cylinder head (For rd. groove) (See O8348AB)

1шт.

Part of Cylinder, P/N B3785AA

1шт.

VC1419

X

PIN - yoke pin retainer

2шт.

3756AA

STOP AND PINS - hydraulic limit

1шт.

Part of Cylinder, P/N B3785AA

1шт.

B3785AA

CYLINDER - 3-1/4" x 8" hydraulic portable, (Replaces A3785AA)

1шт.

Includes 6187A, 6243A, 03869AB, 08342AB, 08345AB, 08346AB, 08347AB, 08348AB, screw, 08601AB, lockwasher, 08602AB. 09303AB, 3756AA, 3859AA, 4246AA and 4417AA

1шт.

3859AA

X

LATCH - limit stop

1шт.

Part of Cylinder, P/N B3785AA

1шт.

4246AA

CYLINDER - with head

1шт.

Part of Cylinder, P/N B3785AA

1шт.

1/2" - 90 degree street elbow

2шт.

Part of Cylinder, P/N B3785AA

1шт.

4417AA

ROD AND YOKE - hydraulic cylinder piston (Replaces 3755AA)

1шт.

Part of Cylinder, P/N B3785AA

1шт.

7/8" N.F. hex nut, light

1шт.

7/8" type 12 Shakeproof lockwasher #1234

1шт.
