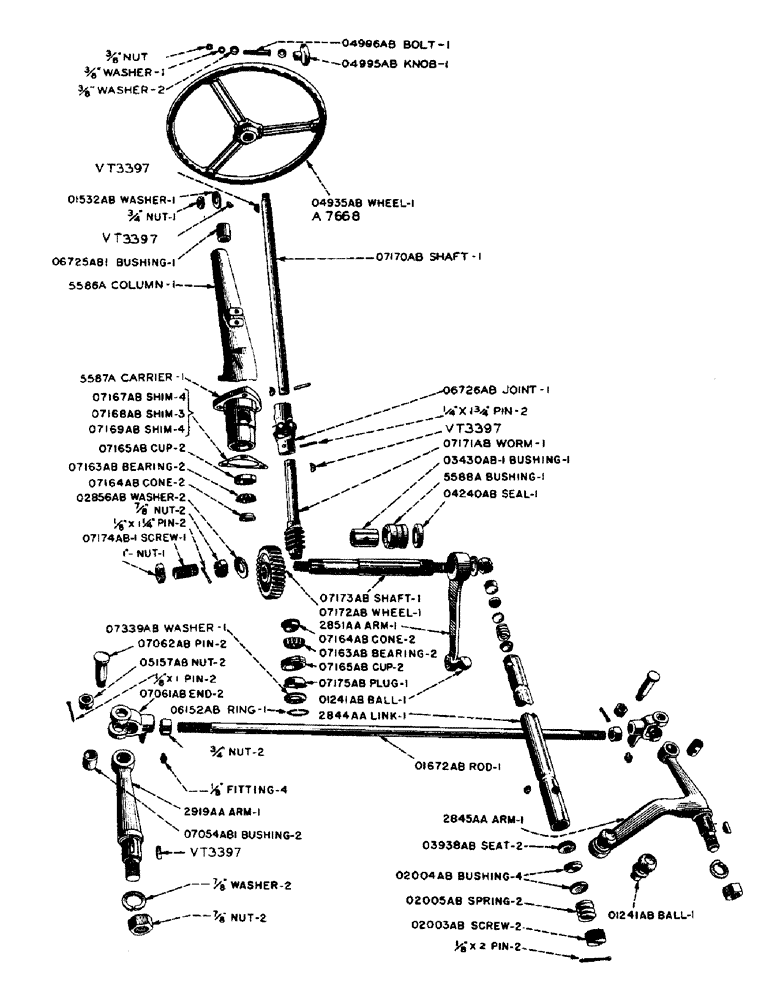

Запчасти Case IH DV-SERIES (128) - STEERING GEAR, FOR "D" - "DO" - "DV" TRACTORS NUMBER 4607033 AND AFTER (05) - STEERING

A7668

WHEEL

steering

1шт.

5586A

COLUMN, steering shaft

1шт.

SCREW, 1/2" x 1-3/4" hexagon head cap, N.C. thread

2шт.

SCREW, 1/2" x 5-1/2" hexagon head cap, N.C. thread

1шт.

WASHER, 1/2" standard lock

3шт.

5587A

CARRIER, steering bearing

1шт.

5588A

BUSHING, steering worm shaft, outer

1шт.

O1241AB

BALL, steering arm

1шт.

O1532AB

WASHER, steering shaft

1шт.

O1672AB

ROD, front axle tie

1шт.

NUT, 3/4" hexagon, light, N.F. thread

2шт.

O2003AB

X

SCREW, adjusting, steering gear drag link

2шт.

PIN, 1/8" x 2" cotter

2шт.

O2004AB

BEARING, steering gear drag link

4шт.

O2005AB

X

SPRING, steering gear drag link

2шт.

O2856AB

WASHER, steering worm wheel shaft

2шт.

O3430AB1

BUSHING, steering worm shaft, inner

1шт.

O3938AB

X

SEAT, steering gear drag link

2шт.

O4240AB

X

SEAL, oil, steering drop arm shaft

1шт.

O4995AB

X

KNOB, for O4935AB steering wheel (D, DO)

1шт.

O4996AB

BOLT, for O4995AB knob (D, DO)

1шт.

NUT, 3/8" hexagon, jam, N.C. thread (D, DO)

1шт.

WASHER, 3/8" standard lock (D, DO)

1шт.

WASHER, 3/8" standard plain

2шт.

O5086AB

X

SEAL, oil, steering worm wheel

1шт.

O5157AB

NUT, front axle tie rod yoke end pin

2шт.

O6152AB

RING, snap, steering worm bearing retainer washer

1шт.

O6725AB1

X

BUSHING, steering shaft column

1шт.

FITTING, 1/8" straight Lincoln

1шт.

O6726AB

GASKET

JOINT, steering shaft universal

1шт.

PIN, 1/4" x 1-3/4" type 1, full length taper groove

2шт.

O7054AB1

X

BUSHING, steering spindle arm

2шт.

O7061AB

END, yoke, front axle tie rod

2шт.

O7062AB

PIN, front axle tie rod yoke end

2шт.

PIN, 1/8" x 1" cotter

2шт.

O7163AB

X

ROLLER ASSEMBLY, steering gear bearing, Timken no. 11BC

2шт.

O7164AB

X

CONE, steering gear bearing, Timken no. 12CB

2шт.

O7165AB

X

CUP, steering gear bearing, Timken no. 13C

2шт.

O7167AB

SHIM, steering column, .003" thick

4шт.

O7168AB

SHIM, steering column, .005" thick

3шт.

O7169AB

SHIM, steering column, no. 30 gauge thickness

4шт.

O7170AB

SHAFT, steering wheel

1шт.

NUT, 3/4" hexagon, jam, light, N.F. thread

1шт.

O7171AB

WORM, steering

1шт.

O7172AB

WHEEL, steering worm

1шт.

O7173AB

SHAFT, steering drop arm

1шт.

NUT, 7/8" hexagon, castle, light, N.F. thread

2шт.

PIN, 1/8" x 1-1/4" cotter

2шт.

O7174AB1

SCREW, adjusting, steering drop arm shaft

1шт.

NUT, 1" hexagon, jam, N.F. thread

1шт.

O7175AB

PLUG, steering column end

1шт.

O7339AB

WASHER, steering worm bearing retainer

1шт.

O7779AB

X

WHEEL, steering, 17-3/4" (Hard rubber) (Use A7668)

1шт.

VT3397

KEY - Woodruff, steering shaft, spindle arms and steering worm

5шт.

2844AA

LINK, steering drag

1шт.

FITTING, 1/8" straight Lincoln no. 5000 (D)

2шт.

FITTING, 1/8" straight Lincoln no. 5000 (DO, DV)

1шт.

FITTING, 1/8" straight 90 degree Lincoln, no. 5400 (DO, DV)

1шт.

2845AA

ARM, steering spindle, with ball and bushing, L.H.

1шт.

FITTING, 1/8" straight Lincoln , no. 5000

1шт.

NUT, 7/8" hexagon, light, N.F. thread

1шт.

WASHER, 7/8" standard lock

1шт.

2851AA

ARM, steering drop, with ball

1шт.

2919AA

ARM, steering spindle, with bushing, R.H.

1шт.

FITTING, 1/8" straight Lincoln, no. 5000

1шт.

NUT, 7/8" hexagon, light, N.F. thread

1шт.

WASHER, 7/8" standard lock

1шт.
