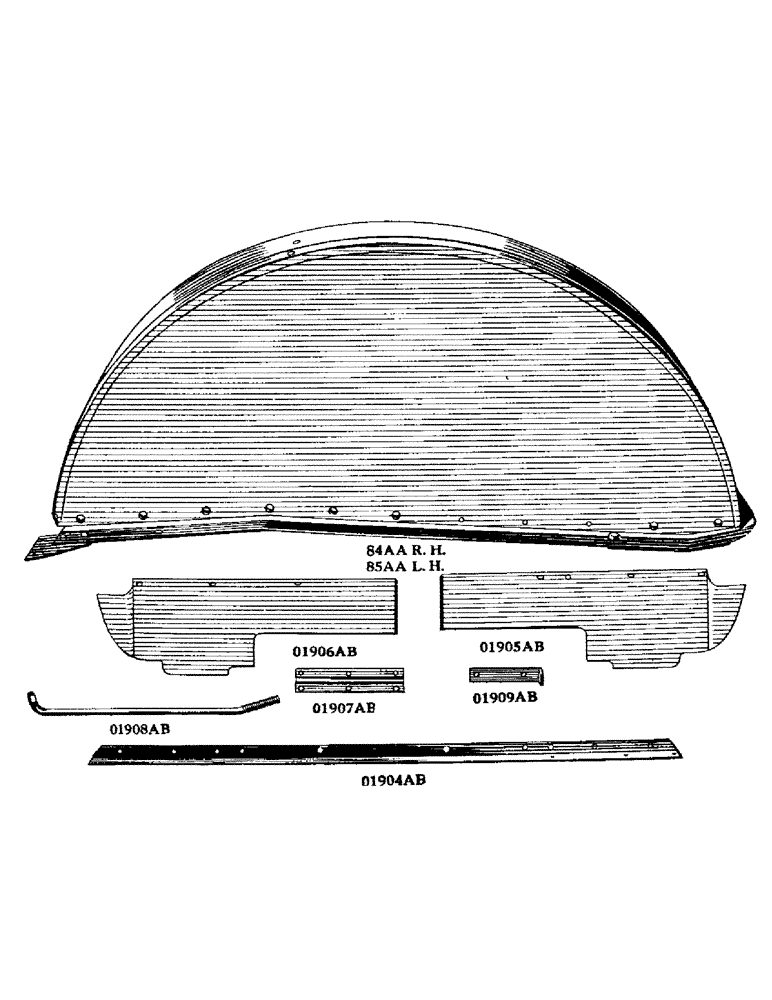

Запчасти Case IH DO-SERIES (085) - REAR WHEEL FENDERS, MODEL "DO" - "DV" TRACTORS (09) - CHASSIS

5486a

5486A

NUT, L.H., fender extension front bolt

1шт.

o1904ab

O1904AB

ANGLE, fender front, support. Prior to tractor no. 4402517. See O5482AB (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 1/2" x 1" hexagon head cap, N.C. thread (DO)

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock (DO)

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" plain (DO)

2шт.

o1905ab

O1905AB

APRON, fender, R.H. Prior to tractor no. 4402517 (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/4" x 3/4" machine, with square nut (DO)

5шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/4" standard lock (DO)

5шт.

o1906ab

O1906AB

APRON, fender, L.H. Prior to tractor no. 4402517 (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/4" x 3/4" machine, with square nut (DO)

5шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/4" standard lock (DO)

5шт.

o1907ab

O1907AB

SUPPORT, fender front. Prior to tractor no. 4402517 (DO)

2шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 7/8" machine, with square nut (DO)

6шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DO)

6шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, 1/4" x 1/2" wagon box head (DO)

6шт.

o1908ab

O1908AB

BRACE, fender top (DO)

2шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 3-1/4" machine, with square nut (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 1/2" hexagon (DO)

4шт.

o1909ab

O1909AB

SUPPORT, fender top brace. Prior to tractor no. 4402517 (DO)

2шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 5/16" x 5/8" machine (DO)

6шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" standard lock (DO)

6шт.

o3371ab

O3371AB

BRACE, fender top (DV)

2шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 1/2" hexagon (DV)

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DV)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 3-1/4" machine (DV)

1шт.

o4671ab

O4671AB

HANGER, fender extension front. Prior to tractor no. 4402517. See O5502AB (DO)

2шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 3/8" x 1-1/4" hexagon head cap, N.C. thread (DO)

4шт.

o5291ab

O5291AB

CLEAT, fender backing. Prior to tractor no. 4402517 (DO)

2шт.

o5482ab

O5482AB

ANGLE, fender front support. Tractor no. 4402517 and after. See O1904AB (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/4" x 5/8" machine (DO)

4шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 1" machine (DO)

4шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 1/2" x 1" hexagon head cap, N.C. thread (DO)

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/4" standard lock (DO)

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DO)

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock (DO)

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" plain (DO)

2шт.

o5485ab

O5485AB

BRACE, fender front extension and cowl. Tractor no. 4402517 and after (DO)

2шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 1" machine (DO)

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DO)

4шт.

o5502ab

O5502AB

HANGER, fender extension front (DV)

2шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 3/8" x 1-1/4" hexagon head cap, N.C. thread (DV)

4шт.

o5502ab

O5502AB

HANGER, fender extension front. Tractor no. 4402517 and after. See O4671AB (DO)

2шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 3/8" x 1-1/4" hexagon head cap, N.C. thread (DO)

4шт.

o5510ab

O5510AB

SHEET, fender dust, R.H. Tractor no. 4402517 and after (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/4" x 1/2" machine, with hex nut (DO)

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/4" standard lock (DO)

4шт.

o5511ab

O5511AB

SHEET, fender dust, L.H. Tractor no. 4402517 and after (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/4" x 1/2" machine, with hex nut (DO)

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/4" standard lock (DO)

4шт.

o5525ab

O5525AB

ANGLE, fender front support (DV)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 1" machine (DV)

4шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 1/2" x 1" hexagon head cap, N.C. thread (DV)

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DV)

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock (DV)

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" plain (DV)

2шт.

o5531ab

O5531AB

BRACE, fender extension (DV)

2шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 1" machine (DV)

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DV)

4шт.

84aa

84AA

FENDER, R.H. Prior to tractor no. 4402517. See 2260AA (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 3/4" machine (DO)

3шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 7/8" machine (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DO)

5шт.

85aa

85AA

FENDER, L.H. Prior to tractor no. 4402517. See 2261AA (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 3/4" machine (DO)

3шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 7/8" machine (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DO)

5шт.

1780aa

1780AA

EXTENSION, fender, R.H. Prior to tractor no. 4402517. See 2242AA (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 4-1/2" machine (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/2" x 1-1/2" machine, with hex nut (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 5/16" hexagon (DO)

2шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/16"-18 x 5/8" round head machine (DO)

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" standard lock (DO)

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" plain (DO)

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" plain (DO)

1шт.

1781aa

1781AA

EXTENSION, fender, L.H. Prior to tractor no. 4402517. See 2243AA (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 4-1/2" machine (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 5/16" hexagon (DO)

2шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 1/2" x 1-3/4" hexagon head cap, N.C. thread (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/16"-18 x 5/8" round head machine (DO)

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" standard lock (DO)

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" plain (DO)

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" plain (DO)

1шт.

2242aa

2242AA

EXTENSION, fender, R.H. Tractor no. 4402517 and after. See 1780AA (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 5" machine (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/2" x 1-1/4" machine, with hex nut (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/16" x 5/8" round head machine (DO)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" standard lock (DO)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" plain (DO)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" plain (DO)

1шт.

2243aa

2243AA

EXTENSION, fender, L.H. Tractor no. 4402517 and after. See 1781AA (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 5" machine (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 1/2" x 1-3/4" hexagon head cap, N.C. thread (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/16" x 5/8" round head machine (DO)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" standard lock (DO)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" plain (DO)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" plain (DO)

1шт.

2259aa

2259AA

COWL, orchard. Tractor no. 4402517 and after (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/16" x 5/8" round head machine (DO)

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" standard lock (DO)

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" plain (DO)

4шт.

2260aa

2260AA

FENDER, R.H. (DV)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x1-1/4" carriage (DV)

3шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 5/16" square, N.C. thread (DV)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DV)

3шт.

2260aa

2260AA

FENDER, R.H. Tractor no. 4402517 and after. See 84AA (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 1-1/4" carriage (DO)

3шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/4" x 1/2" machine (DO)

4шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 5/16" square, N.C. thread (DO)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/4" standard lock (DO)

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DO)

3шт.

2261aa

2261AA

FENDER, L.H. (DV)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" 1-1/4" carriage (DV)

3шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 5/16" square, N.C. thread (DV)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DV)

3шт.

2261aa

2261AA

FENDER, L.H. Tractor no. 4402517 and after. See 85AA (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 1-1/4" carriage (DO)

3шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/4" x 1/2" machine (DO)

4шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 5/16" square, N.C. thread (DO)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/4" standard lock (DO)

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DO)

3шт.

2270aa

2270AA

EXTENSION, fender, R.H. (DV)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 5" machine (DV)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/2" x 1-1/4" machine, with hex. nut (DV)

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/16" x 1/2" round head machine (DV)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" standard lock (DV)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DV)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock (DV)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" plain (DV)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" plain (DV)

1шт.

2271aa

2271AA

EXTENSION, fender, L.H. (DV)

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 5" machine (DV)

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 1/2" x 1-3/4" hexagon head cap, N.C. thread (DV)

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/16" x 1/2" round head machine (DV)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" standard lock (DV)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock (DV)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock (DV)

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" plain (DV)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" plain (DV)

1шт.

2288aa

2288AA

DEFLECTOR, orchard branch, R.H., with anchorage (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/16" x 5/8" round head machine (DO)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" standard lock (DO)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" plain (DO)

3шт.

2289aa

2289AA

DEFLECTOR, orchard branch, L.H., with anchorage (DO)

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/16" x 5/8" round head machine (DO)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" standard lock (DO)

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/16" plain (DO)

3шт.
