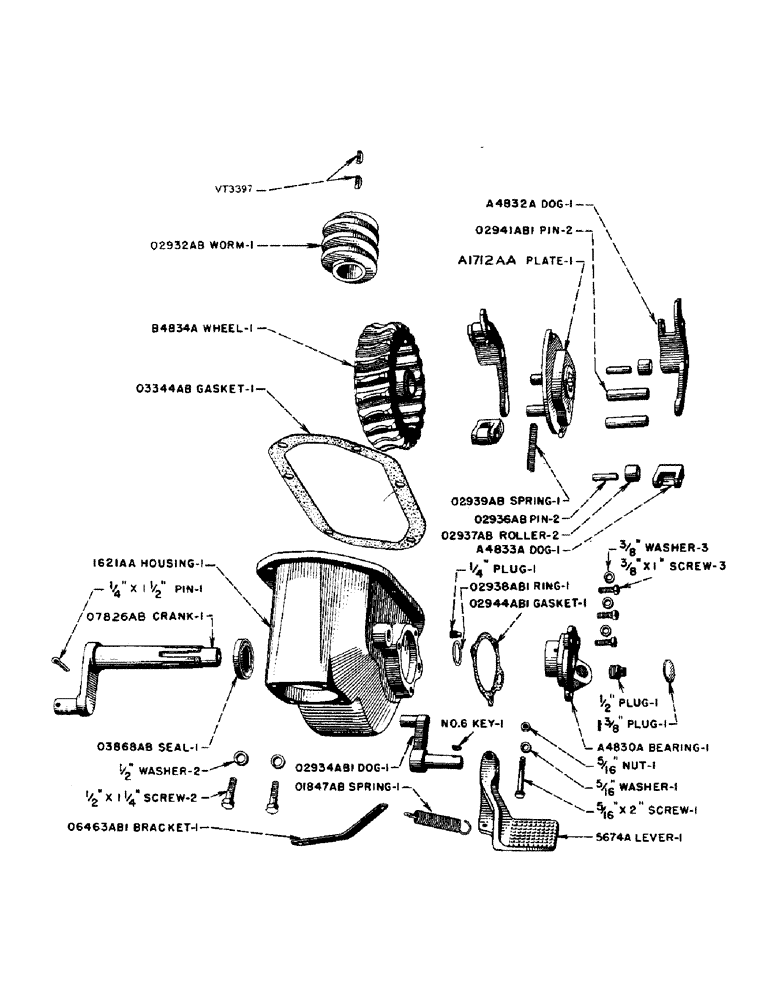

Запчасти Case IH DO-SERIES (142) - MOTOR LIFT, FOR "DC" AND "DO" TRACTORS (06) - POWER TRAIN

A4829A

HOUSING, motor lift. Use 1621AA

1шт.

PLUG, 1/4" square head pipe

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread (DC)

2шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread (DO)

6шт.

WASHER, 1/2" standard lock (DC)

2шт.

WASHER, 1/2" standard lock (DO)

6шт.

WASHER, 3/8" standard lock

4шт.

A4830A

BEARING, housing

1шт.

PLUG, 1-3/8" Welch

1шт.

PLUG, 1/2" square head pipe

1шт.

SCREW, 3/8" x 1" hexagon head cap, N.C. thread

3шт.

WASHER, 3/8" standard lock

3шт.

B4831A

PLATE, driving. Use A1712AA

1шт.

C4831A

PLATE, driving. Use A1712AA

1шт.

A4832A

DOG, clutch driving

1шт.

A4833A

DOG, clutch auxiliary (DC)

1шт.

B4834A

WHEEL, worm

1шт.

5674A

LEVER, motor lift release

1шт.

SCREW, 5/16" x 2" hexagon head cap, N.F. thread

1шт.

NUT, 5/16" hexagon, light, N.F. thread

1шт.

WASHER, 5/16" standard lock

1шт.

O1847AB

SPRING, foot release lever

1шт.

O2932AB

WORM, driving

1шт.

O2934AB1

DOG, release lever

1шт.

KEY, no. 6 Woodruff

1шт.

O2936AB

PIN, clutch driving dog

2шт.

O2937AB

ROLLER, clutch

2шт.

O2938AB1

RING, snap, for crank

1шт.

O2939AB

SPRING, dog engaging

1шт.

O2941AB1

PIN, driving plate

2шт.

O2944AB1

GASKET, housing bearing

1шт.

O3344AB

GASKET, housing

1шт.

O3868AB

OIL SEAL

SEAL, oil, housing

1шт.

O6463AB1

BRACKET, spring

1шт.

O7826AB

CRANK, with shaft

1шт.

PIN, 1/4" x 1-1/4" cotter

1шт.

VT3397

KEY - for O2934AB1

2шт.

1621AA

HOUSING, motor lift, with oil seal

1шт.

A1712AA

PLATE, driving, with pins

1шт.

A2625AA

SHIELD, motor lift, with bracket

1шт.

RIVET, 5/16" x 1/2" W.B. head

2шт.
