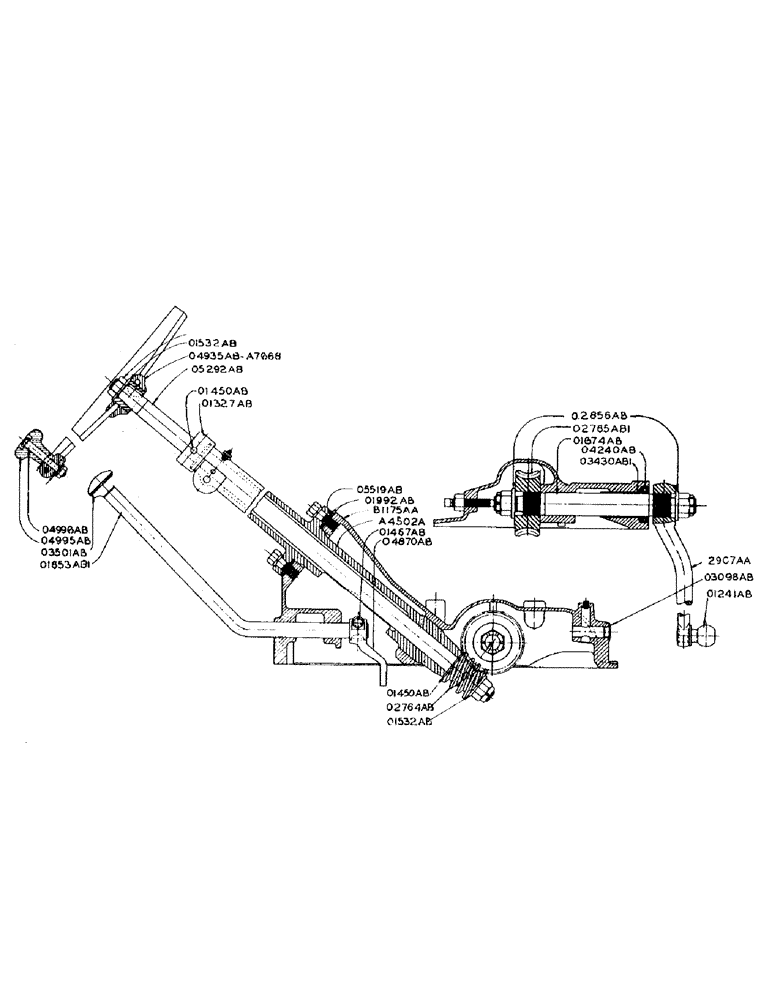

Запчасти Case IH DO-SERIES (124) - STEERING GEAR ASSEMBLY, STEERING GEAR, FOR "D" - "DO" TRACTORS PRIOR TO NO. 4607033 (05) - STEERING

A7668

WHEEL

steering

1шт.

A4502A

COLUMN, steering shaft

1шт.

SCREW, 1/2" x 1-1/2" hexagon head cap, N.C. thread

2шт.

WASHER, 1/2" standard lock

2шт.

O1241AB

BALL, steering arm

1шт.

O1327AB

COLLAR, steering shaft

1шт.

O1450AB

WASHER, thrust, steering shaft

1шт.

O1532AB

WASHER, steering shaft

2шт.

O1672AB

ROD, tie, front axle

1шт.

NUT, 3/4" hexagon, light, N.F. thread

2шт.

O1674AB

SHAFT, steering arm and worm wheel

1шт.

NUT, 7/8" castle, regular, N.C. thread

2шт.

PIN, 1/8" x 1-1/4" cotter

2шт.

O1992AB

GASKET, steering shaft column

2шт.

O2003AB

X

SCREW, adjusting, steering gear drag link

2шт.

PIN, 1/8" x 2" cotter

2шт.

O2004AB

BEARING, steering gear drag link

4шт.

O2005AB

X

SPRING, steering gear drag link

2шт.

O2764AB

WORM, steering

1шт.

O2765AB1

WHEEL, steering worm

1шт.

O2856AB

WASHER, steering worm wheel shaft

2шт.

O3430AB

BUSHING, steering worm shaft - use O3430AB1

1шт.

O3430AB1

BUSHING, steering worm shaft, outer

1шт.

O3938AB1

X

SEAT, steering gear drag link

2шт.

O4240AB

X

SEAL, oil drop arm shaft

1шт.

O4995AB

X

KNOB, for O4935AB steering wheel

1шт.

O4996AB

BOLT, for O4995AB knob

1шт.

NUT, 3/8" hexagon, jam, N.F. thread

1шт.

WASHER, 3/8" standard lock

1шт.

WASHER, 3/8" stadard plain

1шт.

O5157AB

NUT, front axle tie rod yoke end pin

2шт.

O5292AB

SHAFT, steering wheel

1шт.

NUT, 3/4" hexagon, castle, N.F. thread

1шт.

NUT, 3/4" standard, jam, N.F. thread

1шт.

KEY, no. 15 Woodruff

1шт.

O5519AB

SPACER, steering column

1шт.

O7054AB1

X

BUSHING, steering spindle arm

2шт.

O7061AB

END, tie rod yoke

2шт.

O7062AB

PIN, tie rod yoke end

2шт.

PIN, 1/8" x 1" cotter

2шт.

O7174AB1

SCREW, adjusting, steering drop arm shaft

1шт.

2844AA

LINK, steering drag

1шт.

FITTING, 1/8" straight Lincoln no. 5000

1шт.

2845AA

ARM, steering spindle, with ball and bushing, L.H.

1шт.

FITTING, 1/8" straight Lincoln no. 5000

1шт.

2907AA

ARM, steering drop, with ball

1шт.

2919AA

ARM, steering spindle, with bushing, R.H.

1шт.

FITTING, 1/8" straight Lincoln no. 5000

1шт.

NUT, 7/8" hexagon, light, N.F. thread

2шт.

WASHER, 7/8" standard lock

2шт.

KEY, no. 15 Woodruff

2шт.
