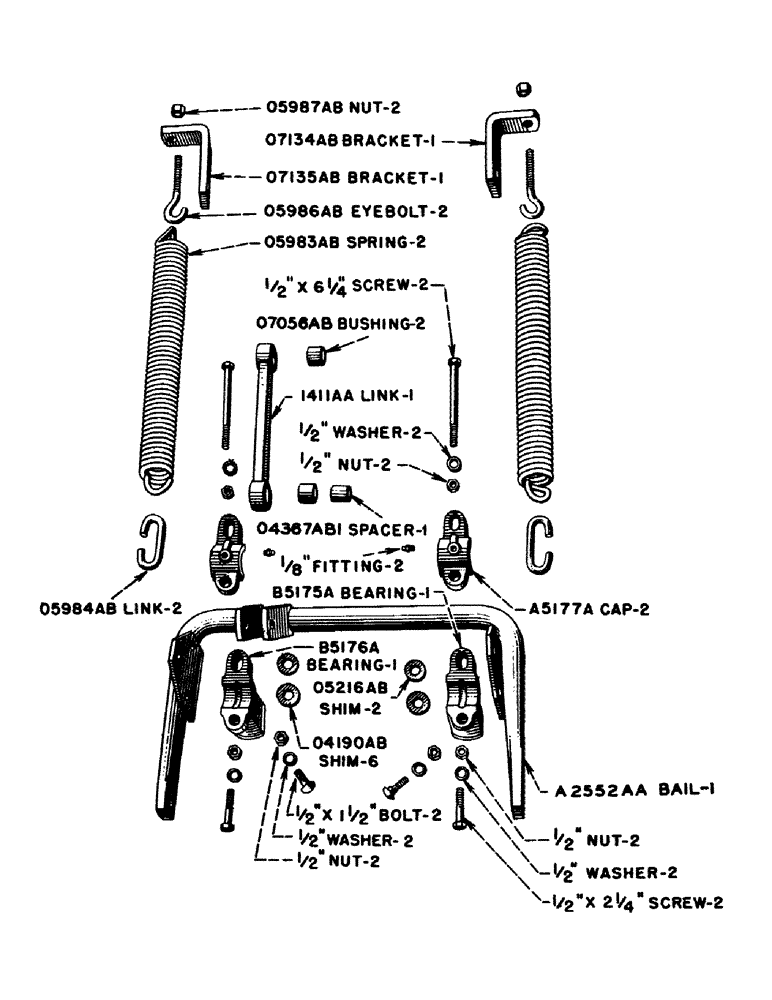

Запчасти Case IH DC-SERIES (126) - RAISING BAIL WITH SPRINGS UNDER AXLE, FOR "DC" TRACTOR ONLY (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
a5175a
A5175A
BEARING, raising bail, R.H. Use B5175A
1шт.
b5175a
B5175A
BEARING, raising bail, R.H.
1шт.
nss
NSS
NOT SOLD SEPARAT
BOLT, 1/2" x 1-1/2" carriage, with hex nut
1шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 1/2" standard lock
1шт.
a5176a
A5176A
BEARING, raising bail, L.H. Use B5176A
1шт.
b5176a
B5176A
BEARING, raising bail, L.H.
1шт.
nss
NSS
NOT SOLD SEPARAT
BOLT, 1/2" x 1-1/2" carriage, with hex nut
1шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 1/2" standard lock
1шт.
a5177a
A5177A
CAP, raising bail bearing
2шт.
nss
NSS
NOT SOLD SEPARAT
SCREW, 1/2" x 2-1/4" hexagon head cap, N.F. thread
2шт.
nss
NSS
NOT SOLD SEPARAT
SCREW, 1/2" x 6-1/4" hexagon head cap, N.F. thread
2шт.
nss
NSS
NOT SOLD SEPARAT
NUT, 1/2" hexagon, light, N.F. thread
4шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 1/2" standard lock
4шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 1/2" plain
2шт.
nss
NSS
NOT SOLD SEPARAT
FITTING, 1/8" straight Lincoln no. 5000
2шт.
o3816ab
O3816AB
SPACER, connecting link, for 1/2" x 2-3/4" cap screw. See O4367AB1
1шт.
nss
NSS
NOT SOLD SEPARAT
SCREW, 1/2" x 2-3/4" hexagon head cap, N.F. thread
1шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 1/2" standard lock
1шт.
nss
NSS
NOT SOLD SEPARAT
NUT, 1/2" hexagon, light, N.F. thread
1шт.
o3817ab
O3817AB
X
BUSHING, for O3816AB spacer. See O7056AB
2шт.
o4190ab
O4190AB
SHIM, raising bail bearing, no. 22 gauge
6шт.
o4367ab1
O4367AB1
SPACER, connecting link, for 3/4" x 3" cap screw. See O3816AB
1шт.
nss
NSS
NOT SOLD SEPARAT
SCREW, 3/4" x 3" hexagon head cap, N.F. thread
1шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 3/4" standard lock
1шт.
nss
NSS
NOT SOLD SEPARAT
NUT, 3/4" hexagon, light, N.F. thread
1шт.
o4831ab
O4831AB
SPRING, raising bail, 2-11/16" outside diameter x 20-1/2" long. See O5983AB
2шт.
o5216ab
O5216AB
SHIM, raising bail bearing, 3/16" thick
2шт.
o5983ab
O5983AB
SPRING, raising bail, 2-1/4" outside diameter x 20-1/2" long. See O4831AB
2шт.
o5984ab
O5984AB
LINK, raising bail spring
2шт.
o5986ab
O5986AB
EYEBOLT, raising bail spring
2шт.
o5987ab
O5987AB
NUT, eyebolt
2шт.
o7056ab
O7056AB
X
BUSHING, for O4367AB1 spacer. See O3817AB
2шт.
o7134ab
O7134AB
BRACKET, raising bail spring, R.H.
1шт.
o7135ab
O7135AB
BRACKET, raising bail spring, L.H.
1шт.
1411aa
1411AA
LINK, connecting, with bushings
1шт.
2552aa
2552AA
BAIL, raising. Use 3446AA
1шт.
a2552aa
A2552AA
BAIL, raising
1шт.
3446aa
3446AA
BAIL, raising, with parts, furnished when 2552AA is ordered for repairs. Consists of 1 - A2552AA bail, 1 - O4327AB1 spacer, 1-3/4" x 3" cap screw with hex nut and lockwasher
1шт.
Выбрано товаров: 38
