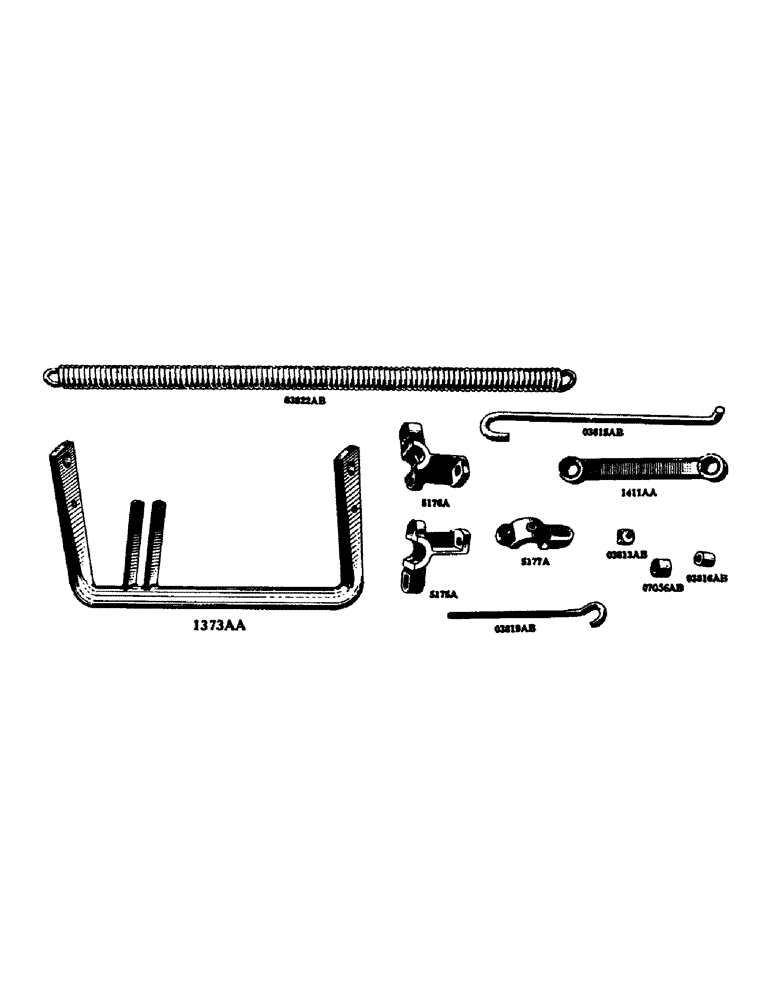

Запчасти Case IH DC-SERIES (125) - RAISING BAIL WITH SPRINGS OVER AXLE, FOR "DC" TRACTOR ONLY (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
5175a
5175A
BEARING, raising bail, R.H. Use B5175A
1шт.
a5175a
A5175A
BEARING, raising bail, R.H. Use B5175A
1шт.
b5175a
B5175A
BEARING, raising bail, R.H.
1шт.
nss
NSS
NOT SOLD SEPARAT
BOLT, 1/2" x 1-1/2" carriage, with hexagon nut
1шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 1/2" standard lock
1шт.
5176a
5176A
BEARING, raising bail, L.H. Use B5176A
1шт.
a5176a
A5176A
BEARING, raising bail, L.H. Use B5176A
1шт.
b5176a
B5176A
BEARING, raising bail, L.H.
1шт.
nss
NSS
NOT SOLD SEPARAT
BOLT, 1/2" x 1-1/2" carriage, with hexagon nut
1шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 1/2" standard lock
1шт.
5177a
5177A
CAP, raising bail bearing. Use A5177A
1шт.
a5177a
A5177A
CAP, raising bail bearing
2шт.
nss
NSS
NOT SOLD SEPARAT
SCREW, 1/2" x 2-1/4" hexagon head cap, N.F. thread
2шт.
nss
NSS
NOT SOLD SEPARAT
SCREW, 1/2" x 6-1/4" hexagon head cap, N.F. thread
2шт.
nss
NSS
NOT SOLD SEPARAT
NUT, 1/2" hexagon, light, N.F. thread
4шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 1/2" standard lock
4шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 1/2" plain
2шт.
nss
NSS
NOT SOLD SEPARAT
FITTING, 1/8" straight Lincoln no. 5000
2шт.
o3813ab
O3813AB
NUT, eye bolt swivel
2шт.
o3815ab
O3815AB
HOOK, raising spring
2шт.
nss
NSS
NOT SOLD SEPARAT
PIN, 3/16" x 1-1/4" cotter
2шт.
o3816ab
O3816AB
SPACER, connecting link. (Used with 1373AA raising bail) See O4376AB1. (For 1/2" x 2-3/4" cap screw)
1шт.
nss
NSS
NOT SOLD SEPARAT
SCREW, 1/2" x 2-3/4" hexagon head cap, N.F. thread
1шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 1/2" standard lock
1шт.
nss
NSS
NOT SOLD SEPARAT
NUT, 1/2" hexagon, light, N.F. thread
1шт.
o3817ab
O3817AB
X
BUSHING, connecting link, for O3816AB spacer. See O7056AB
2шт.
o3819ab
O3819AB
EYEBOLT, lift spring
2шт.
o3822ab
O3822AB
SPRING, lift
2шт.
o4190ab
O4190AB
SHIM, raising bail bearing, 1/32" thick - no. 22 gauge
6шт.
o4367ab1
O4367AB1
SPACER, connecting link (Used with A1373AA raising bail). See O3816AB (For 3/4" x 3" cap screw)
1шт.
nss
NSS
NOT SOLD SEPARAT
SCREW, 3/4" x 3" hexagon head cap, N.F. thread
1шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 3/4" standard lock
1шт.
nss
NSS
NOT SOLD SEPARAT
NUT, 3/4" hexagon, light, N.F. thread
1шт.
o5216ab
O5216AB
SHIM, raising bail bearing, 3/16" thick. Prior to tractor no. 4400723
2шт.
o7056ab
O7056AB
X
BUSHING, connecting link, for O4367AB1 spacer. See O3817AB
2шт.
1373aa
1373AA
BAIL, raising, with arms. Use 3447AA
1шт.
a1373aa
A1373AA
BAIL, raising, with arms. Used with O4367AB1 spacer, cap screw, nut and lockwasher to replace 1373AA. See 3447AA
1шт.
1411aa
1411AA
LINK, connecting, with bushings
1шт.
3447aa
3447AA
1шт.
BAIL, raising, with spacer and cap screw. To be furnished when 1373AA is ordered for repairs. See A1373AA. Consists of 1 - A1373AA raising bail, 1 - O4367AB1 spacer, 1 - 3/4" x 3" hex head cap screw N.F., 1 - 3/4" lockwashers and 1 - 3/4" hex nut, light, N.F. thread
1шт.
Выбрано товаров: 40
