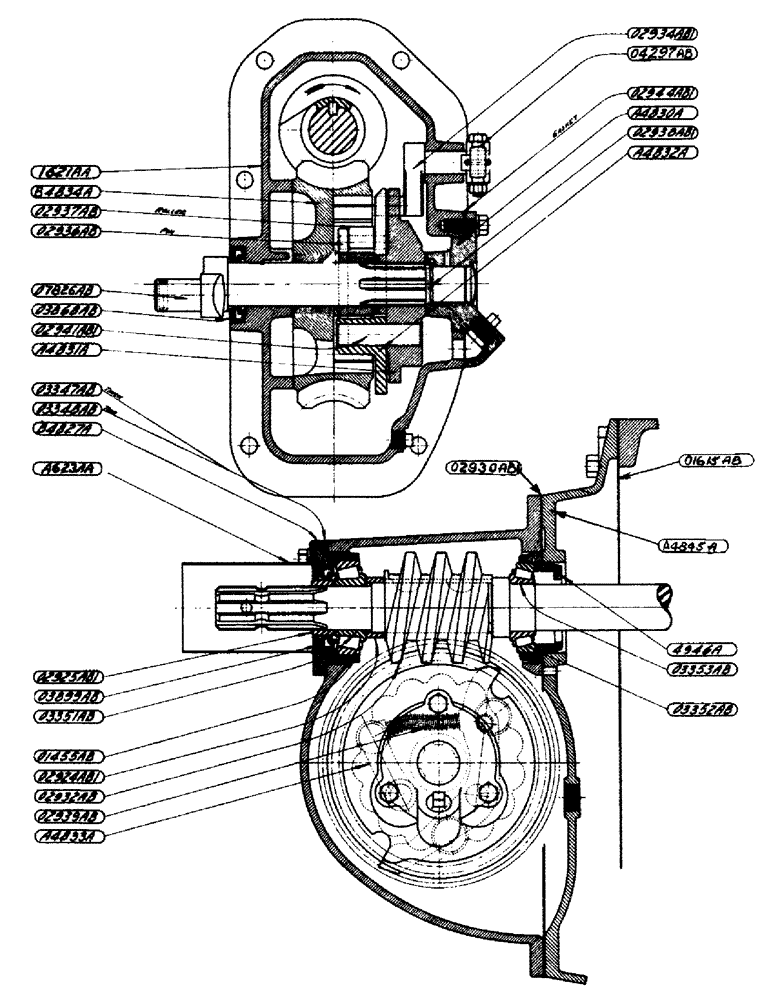

Запчасти Case IH DC-SERIES (122) - MOTOR LIFT ASSEMBLY ONLY, FOR "DC" TRACTOR (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
a4829a
A4829A
HOUSING, motor lift. Use 1621AA
1шт.
nss
NSS
NOT SOLD SEPARAT
PLUG, 1/4" sq. head pipe
1шт.
nss
NSS
NOT SOLD SEPARAT
SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread
2шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 1/2" standard lock
2шт.
a4830a
A4830A
BEARING, housing
1шт.
nss
NSS
NOT SOLD SEPARAT
PLUG, 1-3/8" Welch
1шт.
nss
NSS
NOT SOLD SEPARAT
PLUG, 1/2" sq. head pipe
1шт.
nss
NSS
NOT SOLD SEPARAT
SCREW, 3/8" x 1" hexagon head cap, N.C. thread
3шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 3/8" standard lock
3шт.
a4831a
A4831A
PLATE, driving. Use C1415AA
1шт.
b4831a
B4831A
PLATE, driving. Use C1415AA
1шт.
c4831a
C4831A
PLATE, driving. USE C1415AA
1шт.
a4832a
A4832A
DOG, clutch driving
1шт.
a4833a
A4833A
DOG, clutch auxiliary
1шт.
b4834a
B4834A
WHEEL, worm
1шт.
o2932ab
O2932AB
WORM, driving
1шт.
nss
NSS
NOT SOLD SEPARAT
KEY, no. 15 Woodruff
2шт.
o2934ab1
O2934AB1
DOG, release lever
1шт.
nss
NSS
NOT SOLD SEPARAT
KEY, no. 6 Woodruff
1шт.
o2936ab
O2936AB
PIN, clutch driving dog
2шт.
o2937ab
O2937AB
ROLLER, clutch
2шт.
o2938ab1
O2938AB1
RING, snap, for crank
1шт.
o2939ab
O2939AB
SPRING, dog engaged
1шт.
o2941ab1
O2941AB1
PIN, driving plate
2шт.
o2944ab1
O2944AB1
GASKET, housing bearing
1шт.
o3344ab
O3344AB
GASKET, housing
1шт.
o3868ab
O3868AB
OIL SEAL
SEAL, oil, motor lift housing
1шт.
o4297ab
O4297AB
LEVER, release
1шт.
nss
NSS
NOT SOLD SEPARAT
BOLT, 5/16" x 1-3/4" machine, with square nut
1шт.
nss
NSS
NOT SOLD SEPARAT
WASHER, 5/16" standard lock
1шт.
o4919ab
O4919AB
LEVER, trip
1шт.
o4920ab
O4920AB
LINK, trip
1шт.
nss
NSS
NOT SOLD SEPARAT
PIN, 1/8" x 1" cotter
2шт.
o4921ab
O4921AB
X
SPRING, trip return. Prior to tractor no. 4304633. See O5282AB
1шт.
o5282ab
O5282AB
SPRING, trip return. Tractor no. 4304633 and after. See O4921AB
1шт.
o7826ab
O7826AB
CRANK, with shaft
1шт.
nss
NSS
NOT SOLD SEPARAT
PIN, 1/4" x 1-1/2" cotter
1шт.
c1415aa
C1415AA
PLATE, driving, with pins
1шт.
1621aa
1621AA
HOUSING, motor lift, with oil seal
1шт.
Выбрано товаров: 39
