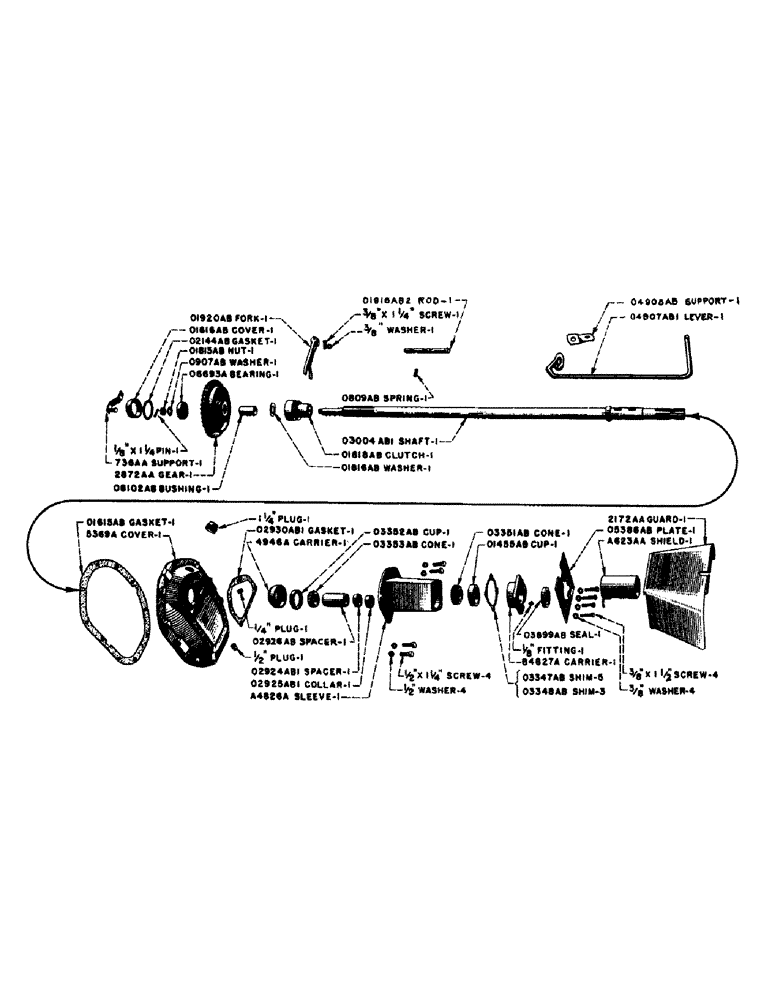

Запчасти Case IH DC-SERIES (120) - POWER TAKE-OFF, REGULAR FOR "DC" TRACTOR, SPECIAL FOR "D" (06) - POWER TRAIN

a4826a

A4826A

SLEEVE, bearing extension

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock

4шт.

b4827a

B4827A

CARRIER, rear bearing

1шт.

nss

NSS

NOT SOLD SEPARAT

FITTING, 1/8" straight Lincoln no. 5000

1шт.

a4845a

A4845A

COVER, rear, transmission case. Use 5369A

1шт.

4946a

4946A

CARRIER, front bearing

1шт.

5369a

5369A

COVER, rear, transmission case

1шт.

nss

NSS

NOT SOLD SEPARAT

PLUG, 1/4" square head pipe

1шт.

nss

NSS

NOT SOLD SEPARAT

PLUG, 1/2" square head pipe

1шт.

nss

NSS

NOT SOLD SEPARAT

PLUG, 1-1/4" square head pipe

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread

6шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 1/2" x 1-3/4" hexagon head cap, N.C. thread

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock

10шт.

o6693ab

O6693AB

BEARING, front end, power take-off shaft, New Departure no. 1305

1шт.

o809ab

O809AB

SPRING, power take-off shifter

1шт.

o907ab

O907AB

WASHER, power take-off shaft, front end

1шт.

o1455ab

O1455AB

X

CUP, rear shaft bearing. Timken no. 2720

1шт.

o1615ab

O1615AB

X

GASKET, transmission case rear cover

1шт.

o1616ab

O1616AB

COVER, front end, power take-off

1шт.

o1815ab

O1815AB

X

NUT, power take-off shaft, front end

1шт.

o1816ab

O1816AB

WASHER, power take-off shaft, front end

1шт.

o1818ab

O1818AB

CLUTCH, power take-off shaft gear

1шт.

o1916ab1

O1916AB1

ROD, shifter. Prior to tractor no. 4304633

1шт.

nss

NSS

NOT SOLD SEPARAT

BALL, 7/16" hard steel

1шт.

o1916ab2

O1916AB2

ROD, shifter. Tractor no. 4304633 and after

1шт.

nss

NSS

NOT SOLD SEPARAT

BALL, 7/16" hard steel

1шт.

o1920ab

O1920AB

FORK, shifter

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 3/8" x 1-1/4" hexagon head cap, N.C. thread

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock

1шт.

o2144ab

O2144AB

X

GASKET, front cover, power take-off

1шт.

o2924ab1

O2924AB1

SPACER, power take-off shaft, 9/16" long

1шт.

o2925ab1

O2925AB1

COLLAR, power take-off shaft

1шт.

o2926ab

O2926AB

SPACER, power take-off shaft, 3-1/2" long

1шт.

o2930ab1

O2930AB1

GASKET, transmission case rear cover cap

1шт.

o3004ab1

O3004AB1

SHAFT, power take-off (1-3/8" spline x 49" long)

1шт.

nss

NSS

NOT SOLD SEPARAT

PIN, 1/8" x 1-1/4" cotter

1шт.

o3347ab

O3347AB

SHIM, rear bearing carrier (.0125" thick)

5шт.

o3348ab

O3348AB

SHIM, rear bearing carrier (.005" thick)

3шт.

o3351ab

O3351AB

CONE, rear shaft bearing. Timken no. 2796

1шт.

o3352ab

O3352AB

CUP, front shaft bearing. Timken no. 16284

1шт.

o3353ab

O3353AB

X

CONE, front shaft bearing. Timken no. 16150

1шт.

o3899ab

O3899AB

X

SEAL, oil, power take-off shaft

1шт.

o4811ab

O4811AB

X

RING, snap, shifter rod. Prior to tractor no. 4304633

2шт.

o4907ab

O4907AB

LEVER AND LINK, shifter rod. Prior to tractor no. 4304633

1шт.

o4907ab1

O4907AB1

LEVER AND LINK, shifter rod. Tractor no. 4304633 and after

1шт.

nss

NSS

NOT SOLD SEPARAT

PIN, 1/4" x 2" cotter

1шт.

o4908ab

O4908AB

SUPPORT, shifter rod link

1шт.

o5386ab

O5386AB

PLATE, mounting, power take-off guard

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 1" carriage, with hex nut

2шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 3/8" x 1-1/2" hexagon head cap, N.C. thread

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" plain

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" Shakeproof lock, type 40, no. 4020-26

2шт.

o5534ab

O5534AB

STOP, shifter rod (Used with O1916AB1). Prior to tractor no. 4304633

1шт.

o6102ab

O6102AB

BUSHING, power take-off gear

1шт.

o7603ab

O7603AB

PINION, power take-off drive. For tractors having 3261AA transmission gear assembly field change

1шт.

nss

NSS

NOT SOLD SEPARAT

KEY, no. B Woodruff

1шт.

a381aa

A381AA

GEAR, power take-off, with bushing (39 teeth), for 2142AA and 2143AA bevel gears. See 2872AA

1шт.

a623aa

A623AA

SHIELD, tubular, power take-off shaft end

1шт.

736aa

736AA

SUPPORT, with spring, power take-off front cover

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 1/2" x 1-3/4" hexagon head cap, N.C. thread

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock

1шт.

1966aa

1966AA

GUARD, power take-off, with supports. Use 1 - 2172AA guard with 1-O5386AB plate

1шт.

2172aa

2172AA

X

GUARD, power take-off

1шт.

2872aa

2872AA

GEAR, power take-off, with bushing (40 teeth), for 3261AA bevel gears. See A381AA

1шт.
