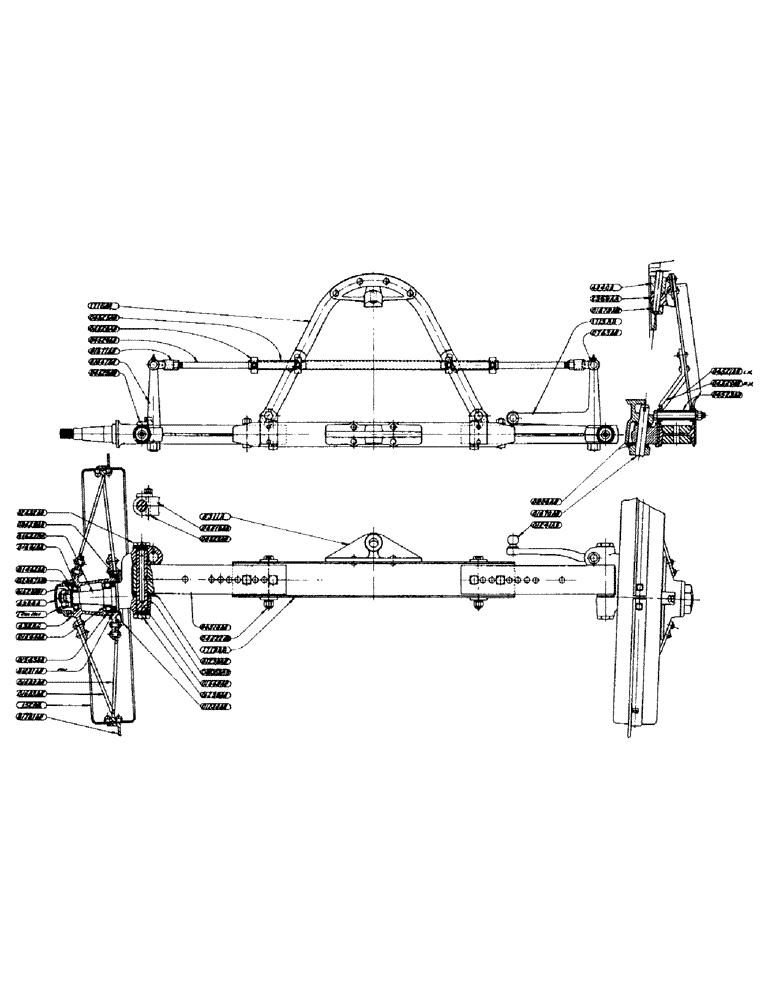

Запчасти Case IH DC-SERIES (108) - ADJUSTABLE FRONT AXLE ASSEMBLY, FOR "DC" TRACTOR (06) - POWER TRAIN

4384a

4384A

X

CAP, front wheel hub

2шт.

4592a

4592A

BEARING, starting crank

1шт.

4623a

4623A

HUB, steel front wheel. Use 438AA

1шт.

a4623a

A4623A

HUB, steel front wheel. Use 438AA

1шт.

4840a

4840A

X

BEARING, radius rod pivot pin

1шт.

c4933a

C4933A

WHEEL, front. Use A1336AA

1шт.

d4933a

D4933A

WHEEL, front, for 4.50E-16 rim. Use A1336AA

1шт.

5311a

5311A

BRACKET, front axle pivot. Use 1718AA

1шт.

o763ab

O763AB

PIN, tie rod yoke end

2шт.

nss

NSS

NOT SOLD SEPARAT

PIN, 1/8" x 1" cotter

2шт.

o877ab

O877AB

PIN, starting crank handle

1шт.

o878ab

O878AB

HANDLE, starting crank

1шт.

o906ab

O906AB

WASHER, front axle pivot pin

4шт.

o1230ab

O1230AB

GUARD, dust, front wheel hub

2шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 1/4" x 1" flat head machine

6шт.

o1231ab

O1231AB

FELT

WASHER, felt, front wheel hub

2шт.

o1238ab

O1238AB

WASHER, thrust, front wheel spindle

4шт.

o1239ab

O1239AB

X

PLUG, front wheel spindle, lower. See O2432AB

2шт.

o1241ab

O1241AB

BALL, steering drop arm and front wheel spindle arm

2шт.

o1352ab

O1352AB

PIN, starting crank

1шт.

o1461ab

O1461AB

X

CUP, front wheel outer bearing. Timken no. 14274

2шт.

o1462ab

O1462AB

X

CONE, front wheel outer bearing. Timken no. 14125

2шт.

o1528ab1

O1528AB1

X

WASHER, lock, front wheel spindle nut

2шт.

o1543ab

O1543AB

CUP, front wheel inner bearing. Timken no. 354

2шт.

o1544ab

O1544AB

X

CONE, front wheel inner bearing. Timken no. 358

2шт.

o1667ab

O1667AB

ARM, steering spindle, R.H.

1шт.

nss

NSS

NOT SOLD SEPARAT

KEY, no. 15 Woodruff

1шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 7/8" hexagon, light, N.F. thread

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 7/8" standard lock

1шт.

nss

NSS

NOT SOLD SEPARAT

FITTING, 1/8" straight Lincoln no. 5000

1шт.

o1669ab

O1669AB

PIN, front axle king

2шт.

o1670ab

O1670AB

PIN, front axle pivot, for C4591A bracket. See O7055AB

1шт.

nss

NSS

NOT SOLD SEPARAT

PIN, 3/8" x 2" cotter

1шт.

o1671ab

O1671AB

END, tie rod yoke

2шт.

o1679ab1

O1679AB1

X

PIN, radius rod pivot

1шт.

o1682ab

O1682AB

SPOKE, steel front wheel, inner

10шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, 3/8" x 1" round head

20шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, 3/8" x 1-1/2" round head

20шт.

o1683ab

O1683AB

SPOKE, steel front wheel, outer

10шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, 3/8" x 1" round head

20шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, 3/8" x 1-1/2" round head

20шт.

o1781ab

O1781AB

RING, front wheel skid, 1-1/2" high (Half ring - 2 required per wheel) See 466AA

4шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/2" x 1-1/4" machine, with hex nut

16шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock

16шт.

o1970ab

O1970AB

SPRING, starting crank

1шт.

o1971ab

O1971AB

WASHER, starting crank spring

1шт.

o2003ab

O2003AB

X

SCREW, steering drag link adjusting

2шт.

nss

NSS

NOT SOLD SEPARAT

PIN, 1/8" x 2" cotter

2шт.

o2004ab

O2004AB

BEARING, steering drag link

4шт.

o2005ab

O2005AB

X

SPRING, steering drag link

2шт.

o2432ab

O2432AB

PLUG, front wheel spindle, upper. See O1239AB

2шт.

nss

NSS

NOT SOLD SEPARAT

FITTING, 1/8" straight Lincoln no. 5000

2шт.

o2887ab1

O2887AB1

X

WASHER, front wheel spindle

2шт.

o2983ab

O2983AB

STUD, radius rod pivot bracket

3шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 5/8" hexagon, light, N.F. thread

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/8" standard lock

3шт.

o3429ab

O3429AB

GASKET, felt, front wheel hub

2шт.

o4518ab

O3938AB

X

SEAT AND SPACER, steering drag link

2шт.

o4518ab

O4518AB

SECTION, front axle outer

2шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/8" x 2-3/4" hexagon head cap, N.F. thread

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/8" standard lock

4шт.

o4520ab

O4520AB

STRAP, radius rod, R.H.

1шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, 7/16" x 1-1/2" round head

2шт.

o4521ab

O4521AB

STRAP, radius rod, L.H.

1шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, 7/16" x 1-1/2" round head

2шт.

o4522ab

O4522AB

BOLT, radius rod. Use 2-5/8" x 5-1/2" hex hd. cap screws, N.F. thread. See 2931AA

1шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 5/8" hexagon, light, N.F. thread

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/8" standard lock

2шт.

o4523ab

O4523AB

SPACER, radius rod bolt

2шт.

o4524ab

O4524AB

ROD, tie, front axle

2шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 3/4" hexagon, light, N.F. thread

2шт.

o4525ab

O4525AB

TUBE, tie rod

1шт.

o4526ab

O4526AB

COLLAR, tie rod

4шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 3/8" x 1-1/4" square head cup point set

4шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 3/8" hexagon, N.C. thread

4шт.

o4528ab

O4528AB

LOCK, front axle king pin

2шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 1/2" hexagon, light, N.F. thread

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock

2шт.

o4529ab

O4529AB

STOP, front axle spindle

2шт.

o6055ab

O6055AB

BUSHING, front wheel spindle

4шт.

o7055ab

O7055AB

PIN, front axle pivot, for D4591A bracket. See O1670AB

1шт.

nss

NSS

NOT SOLD SEPARAT

FITTING, 1/8" straight Lincoln no. 5000

1шт.

o7067ab

O7067AB

X

BUSHING, for 2969AA radius rod pivot bracket

1шт.

o7241ab

O7241AB

X

STUD, front wheel rim (Goodyear no. 46)

8шт.

o7242ab

O7242AB

NUT, front wheel rim stud (Goodyear no. 35)

8шт.

o7554ab

O7554AB

RIM, front wheel (4.50E-16 full drop center rim without drive lugs)

2шт.

o7586ab

O7586AB

X

CLAMP, front wheel rim (Goodyear no. 312)

8шт.

a10aa

A10AA

LINK, steering drag

1шт.

nss

NSS

NOT SOLD SEPARAT

FITTING, 1/8" straight Lincoln no. 5000

2шт.

152aa

152AA

WHEEL, steel front, with hub and bearing cups

2шт.

326aa

326AA

ARM, steering drop, with ball

1шт.

438aa

438AA

HUB, steel front wheel, with bearing cups

2шт.

466aa

466AA

RINGS, set of front wheel skid, 1-1/2" high. Consists of 4 - O1781AB rings and 16 - 1/2" x 1-1/4" machine bolts with hex nuts and lockwashers

1шт.

b1046aa

B1046AA

WHEEL, front, with bearing cups and 4.50E-16 full drop center rim

2шт.

a1336aa

A1336AA

X

WHEEL, front, with bearing cups, less rim

2шт.

a1627aa

A1627AA

SPINDLE, front wheel, with bushing

2шт.

nss

NSS

NOT SOLD SEPARAT

FITTING, 1/8" straight Lincoln no. 5000

4шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 1" hexagon, jam, light, N.F. thread

4шт.

1715aa

1715AA

ARM, steering spindle, with ball, L.H.

1шт.

nss

NSS

NOT SOLD SEPARAT

FITTING, 1/8" straight Lincoln no. 5000

1шт.

nss

NSS

NOT SOLD SEPARAT

KEY, no. 15 Woodruff

1шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 7/8" hexagon, light, N.F. thread

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 7/8" standard lock

1шт.

1716aa

1716AA

ROD, radius, complete.Use 2931AA with O7067AB bushing

1шт.

1718aa

1718AA

BEAM, front axle, complete

1шт.

1944aa

1944AA

CRANK, starting, with handle and pin

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 1/4" x 5/16" cup point headless set

1шт.

nss

NSS

NOT SOLD SEPARAT

PIN, 1/8" x 1-1/2" cotter

1шт.

1945aa

1945AA

CRANK, starting, complete with bearing, pin, spring and washer

1шт.

2931aa

2931AA

ROD, radius, complete

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/8" x 5-1/2" hexagon head cap, N.F. thread

2шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 5/8" hexagon, light, N.F. thread

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/8" standard lock

2шт.

2969aa

2969AA

BRACKET, radius rod pivot, with O7067AB bushing

1шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, 7/16" x 1-1/4" countersunk head

4шт.
