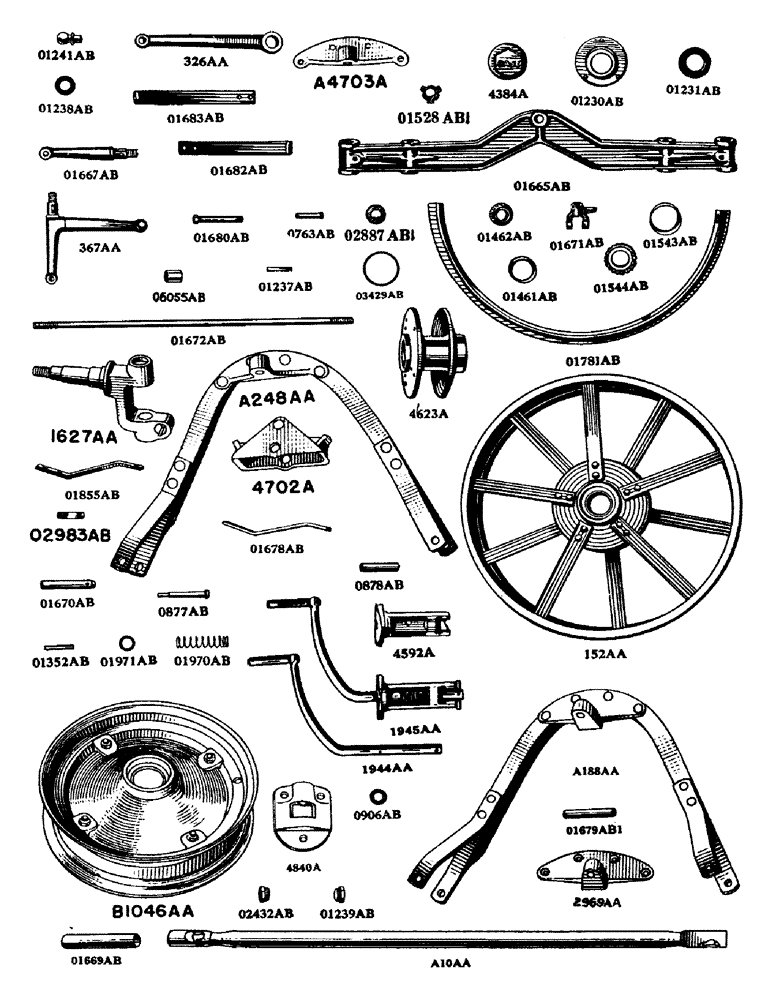

Запчасти Case IH DC-SERIES (105) - FRONT AXLE AND WHEELS, TO CHANGE "DC" 3 TO "DC" 4 WHEEL (06) - POWER TRAIN

4384a

4384A

X

CAP, front wheel hub

2шт.

4592a

4592A

BEARING, starting crank

1шт.

4623a

4623A

HUB, steel front wheel. Use 438AA

1шт.

a4623a

A4623A

HUB, steel front wheel. Use 438AA

1шт.

4702a

4702A

BLOCK, filler, front axle (Rubber tire wheels)

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 3/4" x 4" hexagon head cap, N.F. thread

1шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 3/4" hexagon, light, N.F. thread

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/4" standard lock

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/4" plain

2шт.

a4703a

A4703A

SPARE PART

BRACKET, radius rod pivot (For rubber tires).See A248AA

1шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, 7/16" x 1-1/2" round head

4шт.

4840a

4840A

X

BEARING, radius rod pivot pin

1шт.

c4933a

C4933A

WHEEL, front, for 4.50E-16 rim. Use A1336AA

1шт.

d4933a

D4933A

WHEEL, front, for 4.50E-16 rim. Use A1336AA

1шт.

o763ab

O763AB

PIN, tie rod, yoke end

2шт.

nss

NSS

NOT SOLD SEPARAT

PIN, 1/8" x 1" cotter

2шт.

o877ab

O877AB

PIN, starting crank handle

1шт.

o878ab

O878AB

HANDLE, starting crank

1шт.

o906ab

O906AB

WASHER, front axle pivot pin

4шт.

o1230ab

O1230AB

GUARD, dust, front wheel hub

2шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 1/4" x 1" flat head machine

6шт.

o1231ab

O1231AB

FELT

WASHER, felt, front wheel hub

2шт.

o1237ab

O1237AB

X

LOCK, front axle king pin

2шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 1/2" hexagon, light, N.F. thread

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock

2шт.

o1238ab

O1238AB

WASHER, thrust, front wheel spindle

4шт.

o1239ab

O1239AB

X

PLUG, front wheel spindle, lower. See O2432AB

2шт.

o1241ab

O1241AB

BALL, steering drop arm and front wheel spindle arm

2шт.

o1352ab

O1352AB

PIN, starting crank

1шт.

o1461ab

O1461AB

X

CUP, front wheel outer bearing. Timken no. 14274

2шт.

o1462ab

O1462AB

X

CONE, front wheel outer bearing. Timken no. 14125

2шт.

o1528ab1

O1528AB1

X

WASHER, lock, front wheel spindle nut

2шт.

o1543ab

O1543AB

CUP, front wheel inner bearing. Timken no. 354

2шт.

o1544ab

O1544AB

X

CONE, front wheel inner bearing. Timken no. 358

2шт.

o1665ab

O1665AB

AXLE, front

1шт.

o1667ab

O1667AB

ARM, steering spindle, R.H.

1шт.

nss

NSS

NOT SOLD SEPARAT

KEY, no. 15 Woodruff

1шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 7/8" hexagon, light, N.F. thread

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 7/8" standard lock

1шт.

nss

NSS

NOT SOLD SEPARAT

FITTING, 1/8" straight Lincoln no. 5000

1шт.

o1669ab

O1669AB

PIN, front axle king

2шт.

o1670ab

O1670AB

PIN, front axle pivot, for C4591A bracket. See O7055AB

1шт.

nss

NSS

NOT SOLD SEPARAT

PIN, 3/8" x 2" cotter

1шт.

o1671ab

O1671AB

END, tie rod yoke

2шт.

o1672ab

O1672AB

ROD, front axle tie

1шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 3/4" hexagon, light, N.F. thread

2шт.

o1678ab

O1678AB

STRAP, radius rod, R.H. (Rubber tire wheels)

1шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, 7/16" x 1-1/2" round head

2шт.

o1679ab1

O1679AB1

X

PIN, radius rod pivot

1шт.

o1680ab

O1680AB

BOLT, radius rod (Rubber tire wheels)

2шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 5/8" hexagon, light, N.F. thread

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/8" standard lock

2шт.

o1682ab

O1682AB

SPOKE, steel front wheel, inner

10шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, 3/8" x 1" round head

20шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, 3/8" x 1-1/2" round head

20шт.

o1683ab

O1683AB

SPOKE, steel front wheel, outer

10шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, 3/8" x 1" round head

20шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, 3/8" x 1-1/2" round head

20шт.

o1781ab

O1781AB

RING, front wheel skid, 1-1/2" high (Half rings 2 required per wheel). See 466AA

4шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/2" x 1-1/4" machine, with hex nut

16шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock

16шт.

o1855ab

O1855AB

STRAP, radius rod, L.H. (Rubber tire wheels)

1шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, 7/16" x 1-1/2" round head

2шт.

o1970ab

O1970AB

SPRING, starting crank

1шт.

o1971ab

O1971AB

WASHER, spring, starting crank

1шт.

o2003ab

O2003AB

X

SCREW, steering drag link adjusting

2шт.

nss

NSS

NOT SOLD SEPARAT

PIN, 1/8" x 2" cotter

2шт.

o2004ab

O2004AB

BEARING, steering drag link

4шт.

o2005ab

O2005AB

X

SPRING, steering drag link

2шт.

o2432ab

O2432AB

PLUG, front wheel spindle, upper. See O1239AB

2шт.

nss

NSS

NOT SOLD SEPARAT

FITTING, 1/8" straight Lincoln no. 5000

2шт.

o2887ab1

O2887AB1

X

WASHER, front wheel spindle

2шт.

o2983ab

O2983AB

STUD, radius rod pivot bracket

3шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 5/8" hexagon, light, N.F. thread

3шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/8" standard lock

3шт.

o3429ab

O3429AB

GASKET, front wheel hub felt

2шт.

o3938ab

O3938AB

X

SEAT AND SPACER, steering drag link

2шт.

o6055ab

O6055AB

BUSHING, front wheel spindle

4шт.

o7055ab

O7055AB

PIN, front axle pivot, for D4591A bracket. See O1670AB

1шт.

nss

NSS

NOT SOLD SEPARAT

FITTING, 1/8" straight Lincoln no. 5000

1шт.

o7064ab

O7064AB

STRAP, radius rod, R.H. (Steel wheel)

1шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, 7/16" x 1-5/8" round head

2шт.

o7065ab

O7065AB

STRAP, radius rod, L.H. (Steel wheel)

1шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, 7/16" x 1-5/8" round head

2шт.

o7067ab

O7067AB

X

BUSHING, for 2969AA pivot bracket (Steel wheel)

1шт.

o7241ab

O7241AB

X

STUD, front wheel rim (Rubber tire - Goodyear no. 46)

8шт.

o7242ab

O7242AB

NUT, front wheel rim stud (Rubber tire - Goodyear no. 35)

8шт.

o7554ab

O7554AB

RIM, 4.50E-16 full drop center, without drive lugs. See B1046AA

2шт.

o7586ab

O7586AB

X

CLAMP, front wheel (Goodyear no. 312)

8шт.

a10aa

A10AA

LINK, steering drag

1шт.

nss

NSS

NOT SOLD SEPARAT

FITTING, 1/8" straight Lincoln no. 5000

2шт.

152aa

152AA

WHEEL, steel front, with bearing cups

2шт.

a188aa

A188AA

ROD, radius, with bracket and straps (Steel wheel). Use 3120AA

1шт.

b235aa

B235AA

SET OF PARTS TO CONVERT A DC3 WHEEL TO A DC4 WHEEL TRACTOR WITH STEEL WHEELS. (Machine account)

1шт.

a248aa

A248AA

ROD, radius, with bracket and straps (Rubber tire wheels)

1шт.

326aa

326AA

ARM, steering drop, with ball

1шт.

367aa

367AA

ARM, steering spindle, with ball, L.H.

1шт.

nss

NSS

NOT SOLD SEPARAT

FITTING, 1/8" straight Lincoln no. 5000

1шт.

nss

NSS

NOT SOLD SEPARAT

KEY, no. 15 Woodruff

1шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 7/8" hexagon, light, N.F. thread

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 7/8" standard lock

1шт.

438aa

438AA

HUB, steel front wheel, with bearing cups

2шт.

466aa

466AA

RINGS, set of front wheel skid, 1-1/2" high. Consists of 4- O1781AB rings and 16-1/2" x 1-1/4" machine bolts with hex nuts and lockwashers

1шт.

b1046aa

B1046AA

WHEEL, front, with O7554AB rim and bearing cups (Pneumatic)

2шт.

a1336aa

A1336AA

X

WHEEL, front, with bearing cups, less rim (Pneumatic)

2шт.

1574aa

1574AA

SET OF PARTS TO CONVERT A DC3 WHEEL TO A DC4 WHEEL TRACTOR WITH RUBBER TIRES (Machine account)

1шт.

1627aa

1627AA

SPINDLE, front wheel. Use A1627AA

1шт.

a1627aa

A1627AA

SPINDLE, front wheel, with bushing

2шт.

nss

NSS

NOT SOLD SEPARAT

FITTING, 1/8" straight Lincoln no. 5000

4шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 1" hexagon jam, light, N.F. thread

4шт.

1944aa

1944AA

CRANK, starting, with handle and pin

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 1/4" x 5/16" cup point headless set

1шт.

nss

NSS

NOT SOLD SEPARAT

PIN, 1/8" x 1-1/2" cotter

1шт.

1945aa

1945AA

CRANK, starting, complete with bearing, pin, spring and washer

1шт.

2969aa

2969AA

BRACKET, radius rod pivot, with O7067AB bushing (Steel wheels)

1шт.

nss

NSS

NOT SOLD SEPARAT

RIVET, 7/16" x 1-3/8" round head

4шт.

3120aa

3120AA

ROD, radius, complete with bracket, bushing and straps (Steel wheels)

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/8" x 5-1/4" hexagon head cap, N.F. thread

2шт.

nss

NSS

NOT SOLD SEPARAT

NUTS, 5/8" hexagon, light, N.F. thread

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/8" standard lock

2шт.
