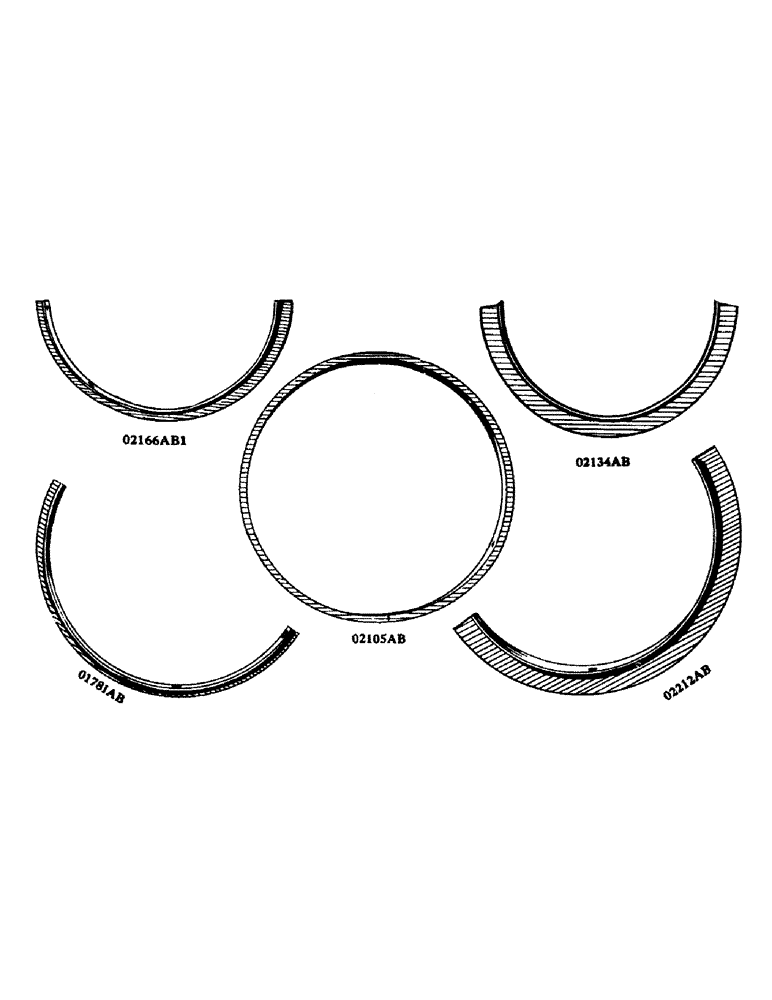

Запчасти Case IH DC-SERIES (104) - SKID RINGS AND GUIDE RINGS, FOR STEEL FRONT WHEELS, D, DC, DH, DO, DV (06) - POWER TRAIN

o1781ab

O1781AB

RING, front wheel skid, 1-1/2" high (Half ring, 2 required per wheel). See 466AA

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/2" x 1-1/4" machine with hex nut (D, DH)

16шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock (D, DH)

16шт.

o2105ab

O2105AB

RING, front wheel guide (Special - 2" wide), See 143AA (D)

2шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/2" x 1-3/4" no. 7 key head plow (D)

16шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock (D)

16шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 1/2" hexagon, N.C. thread (D)

16шт.

o2134ab

O2134AB

RING, front wheel skid, 3" high (Half ring, 2 required per wheel). See 175AA (DO, DV)

4шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/2" x 1-3/4" machine, with hex nut (DO, DV)

16шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock (DO, DV)

16шт.

o2166ab1

O2166AB1

RING, front wheel skid, 1-1/2" high (Half ring, 2 required per wheel). See 463AA (DC)

4шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/2" x 1-1/2" machine, with hex nut (DC)

16шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock (DC)

16шт.

o2212ab

O2212AB

RING, front wheel skid, special - 3" high (Half ring, 2 required per wheel). See 194AA (D, DH)

4шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/2" x 1-1/4" machine with hex nut (D, DH)

16шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock (D, DH)

16шт.

143aa

143AA

RINGS, set of front wheel guide, 2" wide. Set consists of 2 - O2105AB rings, 16 - 1/2" x 1-3/4" no. 7 key head plow bolts with nuts and 16 - 1/2" lockwashers (Machinery account) (D)

1шт.

175aa

175AA

RINGS, set of front wheel skids, 3" high. Set consists of 4 - O2134AB ring, 16 - 1/2" x 1-3/4" machine bolts with hex nuts and 16 - 1/2" lockwashers (Machinery account) (DO, DV)

1шт.

194aa

194AA

RINGS, set of front wheel skid, special - 3" high. Set consists of 4 - O2212AB rings, 16 - 1/2" x 1-1/4" machine bolts with hex nuts and 16 - 1/2" lockwashers (Machinery account) (D, DH)

1шт.

463aa

463AA

RINGS, set of front wheel skid, 1-1/2" high. Set consists of 1 - O2166AB1 rings, 16 - 1/2" x 1-1/2" machine bolts with hex nuts and 16 - 1/2" lockwashers (Machinery account) (DC)

1шт.

466aa

466AA

RINGS, set of front wheel skid, 1-1/2" high. Set consists of 4 - O1781AB rings, 16 - 1/2" x 1-1/4" machine bolts with hex nuts and 16 - 1/2" lockwashers (Machinery account) (D, DH)

1шт.
