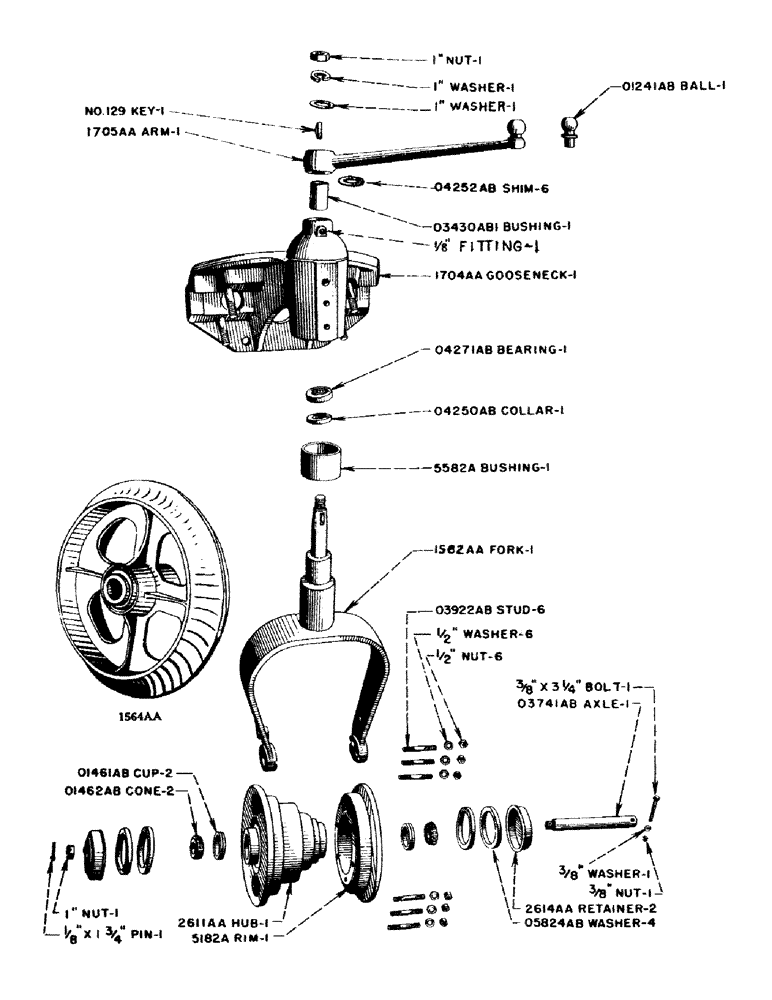

Запчасти Case IH DC-SERIES (094) - SINGLE FRONT WHEEL, FOR "DC" TRACTOR (06) - POWER TRAIN

5182a

5182A

RIM, pneumatic tire front wheel

1шт.

5247a

5247A

WHEEL, front, cast. Use 1564AA

1шт.

nss

NSS

NOT SOLD SEPARAT

FITTING, 1/8" straight Lincoln no. 5000

1шт.

5248a

5248A

WHEEL, front, for 7.50-10 pneumatic tire. For repairs furnish 1-2611AA, 4-O5824AB and 2-2614AA

1шт.

5263a

5263A

FORK, front wheel. Use 1562AA

1шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 3/8" x 3-1/4" machine, with hex nut

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/8" standard lock

1шт.

5306a

5306A

GOOSENECK, front wheel. Use 1704AA

1шт.

nss

NSS

NOT SOLD SEPARAT

FITTING, 1/8" straight Lincoln no. 5000

1шт.

5307a

5307A

ARM, steering. Use 1705AA

1шт.

5582a

5582A

BUSHING, gooseneck, lower

1шт.

5746a

5746A

HUB, front wheel (Rubber tire wheel). Use 2611AA

1шт.

5647a

5647A

WHEEL, front (Cast). Use 2612AA

1шт.

nss

NSS

NOT SOLD SEPARAT

FITTING, 1/8" straight Lincoln no. 5000

1шт.

o906ab

O906AB

WASHER, fork spindle

1шт.

o1241ab

O1241AB

BALL, steering arm

1шт.

o1461ab

O1461AB

X

CUP, front wheel bearing. Timken no. 14274

2шт.

o1462ab

O1462AB

X

CONE, front wheel bearing. Timken no. 14125

2шт.

o3430ab1

O3430AB1

BUSHING, gooseneck, upper

1шт.

o3741ab

O3741AB

AXLE, front wheel

1шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 1" slotted shear, N.F. thread

1шт.

nss

NSS

NOT SOLD SEPARAT

PIN, 1/8" x 1-3/4" cotter

1шт.

o3922ab

O3922AB

STUD, front wheel, pneumatic tire

6шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 1/2" hexagon, light, N.F. thread

6шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock

6шт.

o4208ab

O4208AB

WASHER, felt, front wheel hub, for 5247A wheel. See O5824AB

2шт.

o4250ab

O4250AB

COLLAR, bearing, steering spindle

1шт.

o4252ab

O4252AB

SHIM, adjusting, steering spindle

6шт.

o4271ab

O4271AB

X

BEARING, thrust, steering spindle. Timken no. T-139

1шт.

o5824ab

O5824AB

FELT

WASHER, felt, front wheel hub, for 2611AA and 2612AA. See O4208AB

4шт.

1319aa

1319AA

RETAINER, felt, for 5247A wheel. See 2614AA

2шт.

a1407aa

A1407AA

WHEEL, front, complete for 7.50 x 10 pneumatic tire. Consists of 1-2611AA, 1-5182A, 6-O3922AB, 4-O5824AB and 2-2614AA

1шт.

a1408aa

A1408AA

WHEEL, front, with bearing cups (Less rim) for pneumatic tires. Use 2611AA hub with O5824AB washer and 2614AA felt retainer and lock

1шт.

1562aa

1562AA

FORK, with spindle

1шт.

nss

NSS

NOT SOLD SEPARAT

KEY, no. 129 Woodruff

1шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 1" hexagon jam, N.F. thread

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1" standard lock

1шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1" plain

1шт.

1564aa

1564AA

WHEEL, front, with bearing cups (Cast). For repairs furnish 1-2612AA, 4-O5824AB and 2-2614AA

1шт.

1704aa

1704AA

GOOSENECK, with bushings

1шт.

1705aa

1705AA

ARM, steering, with ball

1шт.

1706aa

1706AA

BRACKET, starting crank, with guide

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 1/2" x 1" hexagon head cap, N.C. thread

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock

2шт.

2611aa

2611AA

HUB, with bearing cups (Pneumatic wheel)

1шт.

2612aa

2612AA

WHEEL, with bearing cups (Cast wheel)

1шт.

2614aa

2614AA

RETAINER, felt, with lock, for 2611AA and 2612AA wheels. See 1319AA

2шт.
