(093) - WEIGHTS FOR DUAL FRONT WHEELS, FOR "DC" TRACTOR

Запчасти Case IH DC-SERIES (093) - WEIGHTS FOR DUAL FRONT WHEELS, FOR "DC" TRACTOR (06) - POWER TRAIN

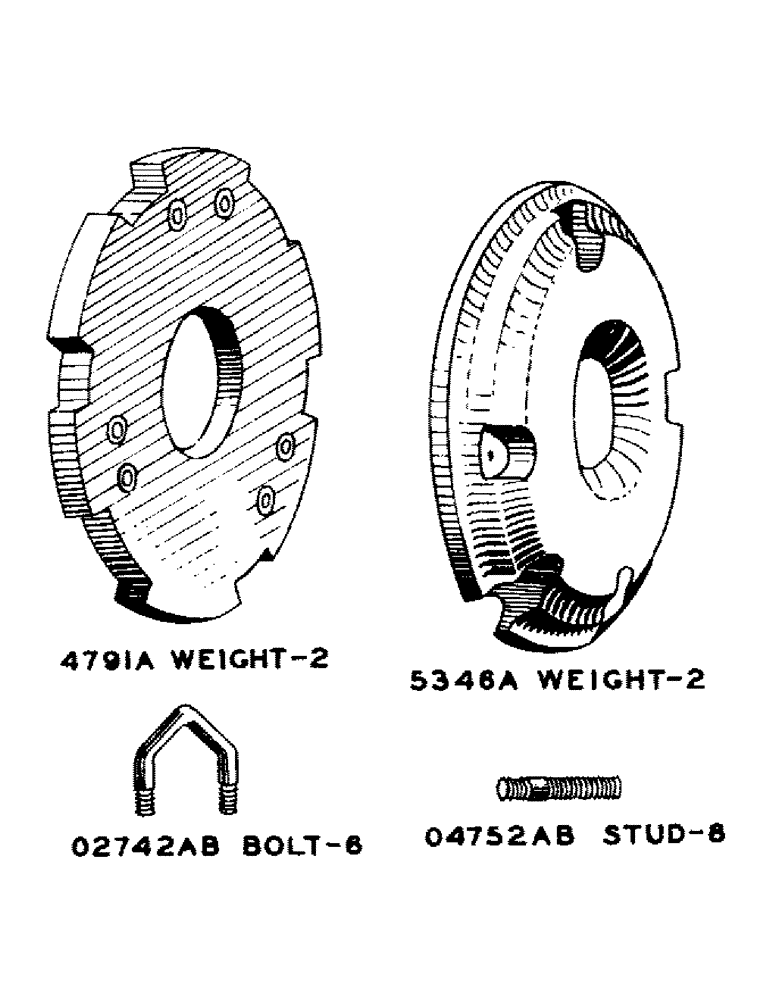

Схема запчастей Case IH DC-SERIES - (093) - WEIGHTS FOR DUAL FRONT WHEELS, FOR "DC" TRACTOR (06) - POWER TRAIN
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

4791a

4791A

WEIGHT, front wheel

2шт.

o2742ab

O2742AB

BOLT, "U", front wheel weight

6шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 5/8" hexagon, N.C. thread

12шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/8" standard lock

12шт.

446aa

446AA

WEIGHTS, set of steel front wheel. Consists of 2 - 4791A weights, 6 - O2742AB "U" bolts, 12 - 5/8" hex nuts and 12 - 5/8" lockwashers. (Machinery account)

1шт.
