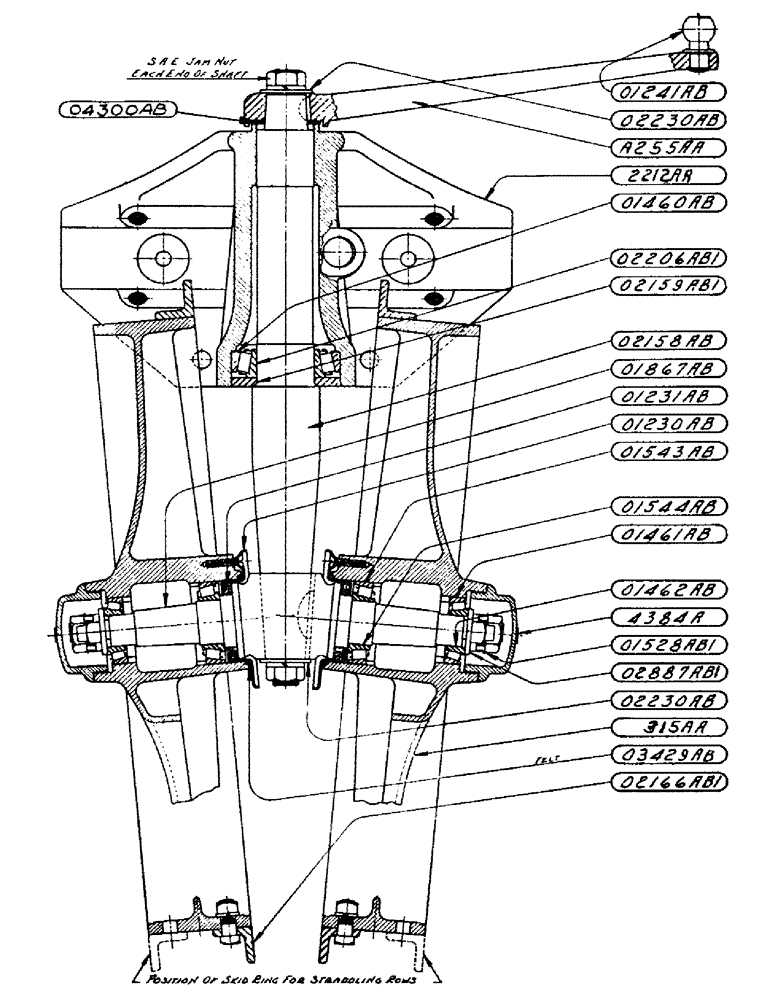

Запчасти Case IH DC-SERIES (090) - DUAL FRONT WHEEL AND SPINDLE ASSEMBLY, FOR "DC" TRACTOR (06) - POWER TRAIN

4384a

4384A

X

CAP, front wheel hub

2шт.

a4690a

A4690A

WHEEL, front, (steel), Use 315AA

1шт.

b4690a

B4690A

WHEEL, front, (steel). Use 315AA

1шт.

c4691a

C4691A

GOOSENECK, front axle, Use 2212AA

1шт.

b4949a

B4949A

WHEEL, front, for 4.50E-16 rim, Use B1143AA

1шт.

c4949a

C4949A

WHEEL, front, for 4.50E-16 rim, Use B1143AA

1шт.

5031a

5031A

CLAMP, gooseneck

2шт.

o1230ab

O1230AB

GUARD, dust, front wheel hub

2шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 1/4" x 1" flat head machine

6шт.

o1231ab

O1231AB

FELT

WASHER, felt, front wheel hub

2шт.

o1241ab

O1241AB

BALL, steering arm

1шт.

o1460ab

O1460AB

BEARING, CUP

CUP, gooseneck bearing. Timken no. 453A

1шт.

o1461ab

O1461AB

X

CUP, front wheel outer bearing. Timken no. 14274

2шт.

o1462ab

O1462AB

X

CONE, front wheel outer bearing. Timken no. 14125

2шт.

o1528ab1

O1528AB1

X

WASHER, lock steering spindle nut

2шт.

o1543ab

O1543AB

CUP, front wheel inner bearing. Timken no. 354

2шт.

o1544ab

O1544AB

X

CONE, front wheel inner bearing. Timken no. 358

2шт.

o1867ab

O1867AB

SPINDLE, front wheel

1шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 1" hexagon jam, light, N.F. thread

4шт.

o2158ab

O2158AB

STANDARD, front wheel. Use O5603AB

1шт.

o2159ab1

O2159AB1

COLLAR, steering spindle

1шт.

o2206ab1

O2206AB1

CONE

gooseneck bearing. Timken no. 462

1шт.

o2230ab

O2230AB

WASHER, steering spindle

2шт.

o2887ab1

O2887AB1

X

WASHER, front wheel spindle

2шт.

o2982ab

O2982AB

ANCHOR, gooseneck truss rod

1шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 5/8" hexagon, N.C. thread

1шт.

nss

NSS

NOT SOLD SEPARAT

PIN, 3/16" x 1-1/4" cotter

1шт.

o3429ab

O3429AB

GASKET, front wheel hub felt

2шт.

o4300ab

O4300AB

SHIM, between steering spindle arm and gooseneck

10шт.

o5446ab

O5446AB

X

BUSHING, gooseneck. Tractor no. 44046662 and after

1шт.

o5603ab

O5603AB

SPINDLE, front wheel steering

1шт.

nss

NSS

NOT SOLD SEPARAT

KEY, no. TX Woodruff

1шт.

nss

NSS

NOT SOLD SEPARAT

KEY, no. C Woodruff

1шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 1" hexagon jam, light, N.F. thread

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1" standard lock

2шт.

o5818ab

O5818AB

X

STUD, gooseneck clamp

4шт.

nss

NSS

NOT SOLD SEPARAT

NUT, 3/4" hexagon, light, N.F. thread

4шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/4" standard lock

4шт.

o7241ab

O7241AB

X

STUD, front wheel rim, (Goodyear no. 46)

8шт.

o7242ab

O7242AB

NUT, front wheel rim stud, (Goodyear no. 35)

8шт.

o7554ab

O7554AB

RIM, front wheel 4.50E-16 full drop center, without drive lugs

2шт.

o7586ab

O7586AB

X

CLAMP, front wheel rim, (Goodyear no. 312)

8шт.

a255aa

A255AA

ARM, steering, with ball

1шт.

315aa

315AA

WHEEL, front, with bearing cups, (Steel)

2шт.

b1142aa

B1142AA

WHEEL, front, with bearing cups and 4.50E-16 drop center rim, (Pneumatic)

2шт.

b1143aa

B1143AA

WHEEL, front, with bearing cups, less rim, (Pneumatic)

2шт.

2212aa

2212AA

GOOSENECK, with bushing

1шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 5/8" x 1-3/4" hexagon head cap, N.C. thread

2шт.

nss

NSS

NOT SOLD SEPARAT

SCREW, 3/4" x 2" hexagon head cap, N.C. thread

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 3/4" standard lock

2шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/8" standard lock

2шт.

nss

NSS

NOT SOLD SEPARAT

FITTING, 1/8" straight Lincoln no. 5000

2шт.
