Запчасти Case IH DC-SERIES (080) - EXTENSION RIMS FOR REAR WHEELS (06) - POWER TRAIN

o2847ab

O2847AB

RIM, extension, for narrow rim rear wheels

2шт.

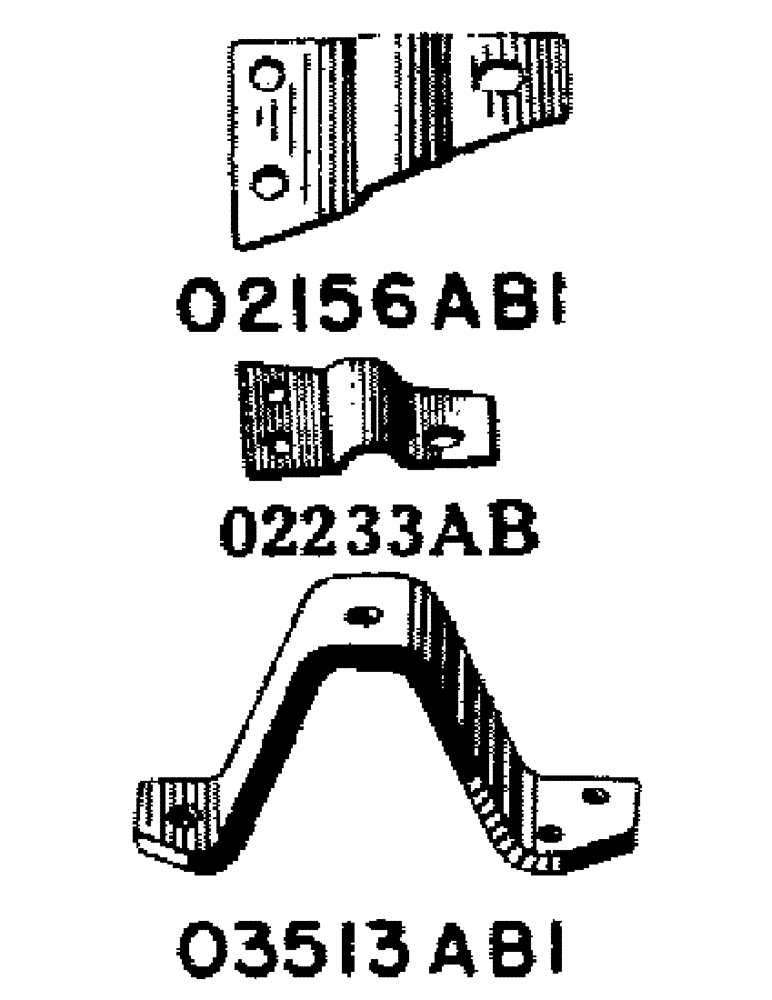

o3513ab1

O3513AB1

BRACKET, extension rim

12шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 1/2" x 1-1/2" machine, with hex nut

24шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 5/8" x 1-3/4" machine, with hex nut

24шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 1/2" standard lock

24шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/8" standard lock

24шт.

1233aa

1233AA

RIMS, set of extension, for narrow rim rear wheels.

1шт.

Consists of 2 - O2847AB rims, 12 - O3513AB1 brackets, 24 - 1/2" x 1-1/2" machine bolts with hex nuts, 24 - 5/8" x 1 - 3/4" machine bolts with hex nuts, 24 - 1/2" lockwashers and 24 - 5/8" lockwashers (Machine account)

1шт.

o2232ab

O2232AB

RIM, 6" x 48" extension, for solid rear wheel

2шт.

o2233ab

O2233AB

STRAP, tie, for extension rim

12шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 5/8" x 1-1/2" machine, with hex nut

24шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 5/8" x 1-3/4" machine, with hex nut

12шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/8" standard lock

36шт.

252aa

252AA

RIMS, set of 6" x 48" extension, for solid type rear wheels, "DC" - "DH" Tractors, Consists of 2 - O2232AB rims, 12 - O2233AB straps, 24 - 5/8" x 1-1/2" machine bolts with hex nuts, 12 - 5/8" x 1-3/4" machine bolts with hex nuts and 36 - 5/8" lockwashers.

1шт.

(Machinery account)

1шт.

o1989ab

O1989AB

RIM, 6" x 42" extension, for rear wheel

2шт.

o2156ab1

O2156AB1

STRAP, tie, for extension rim

12шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 5/8" x 1-1/2" machine, with hex nut

36шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/8" standard lock

36шт.

72aa

72AA

RIMS, set of 6" x 42" extension, for rear wheels with lugs, "D" - "DO" - "DV" Tractors, Consists of 2 - O1989AB rims, 12 - O2156AB1 tie straps, 36 - 5/8" x 1-1/2" machine bolts with hex nuts and 36 - 5/8" lockwashers.

1шт.

(Machinery account)

1шт.

o1989ab

O1989AB

RIM, 6" x 42" extension

2шт.

nss

NSS

NOT SOLD SEPARAT

BOLT, 5/8" x 1-1/2" machine, with hex nut

24шт.

nss

NSS

NOT SOLD SEPARAT

WASHER, 5/8" standard lock

24шт.

216aa

216AA

RIMS, set of 6" x 42" extension, for rear wheels with angle iron grouters, "D" - "DO" - "DV" Tractors, Consists of 2 - O1989AB rims, 24 - 5/8" x 1-1/2" machine bolts with hex nuts and 24 - 5/8" lockwashers.

1шт.

(Machinery account)

1шт.
